·The installation technician is responsible for selecting a kind of AC cable and connecting
the micro-inverter system to the home distribution network correctly.
·The AC connectors may be provided by different suppliers. The port definitions are subject
to actual objects.
·The AC connector and protection cap is not in the package.

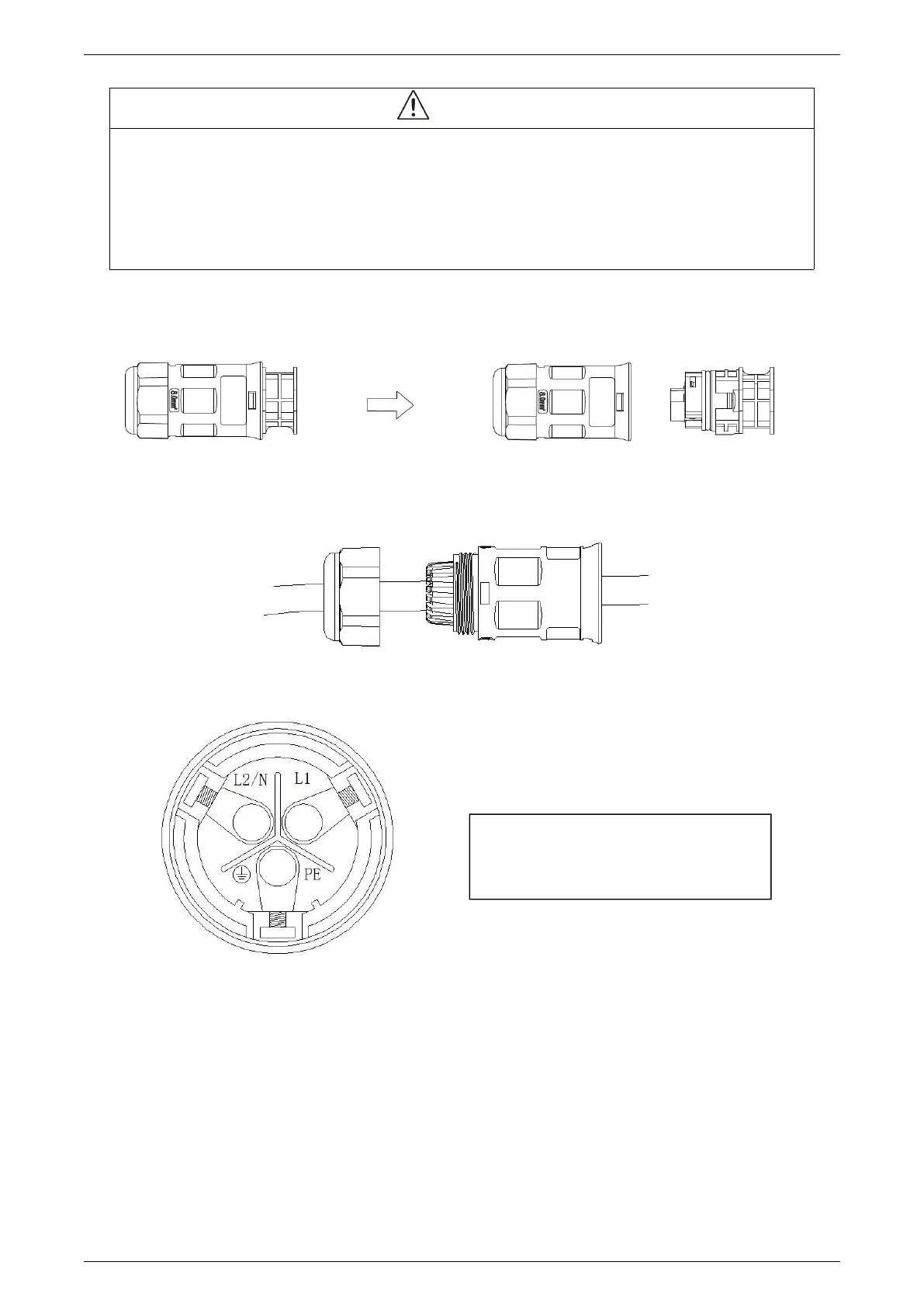

Separate the AC connector as shown below.
Get the AC cable through the shell of AC connector and connect the cable to the right port.
The definition of the port is shown below:
Reassemble the AC connector as shown below.
L: Live (Brown/Red)
N: Neutral (Blue/Black)
PE: Ground (Yellow-Green)
