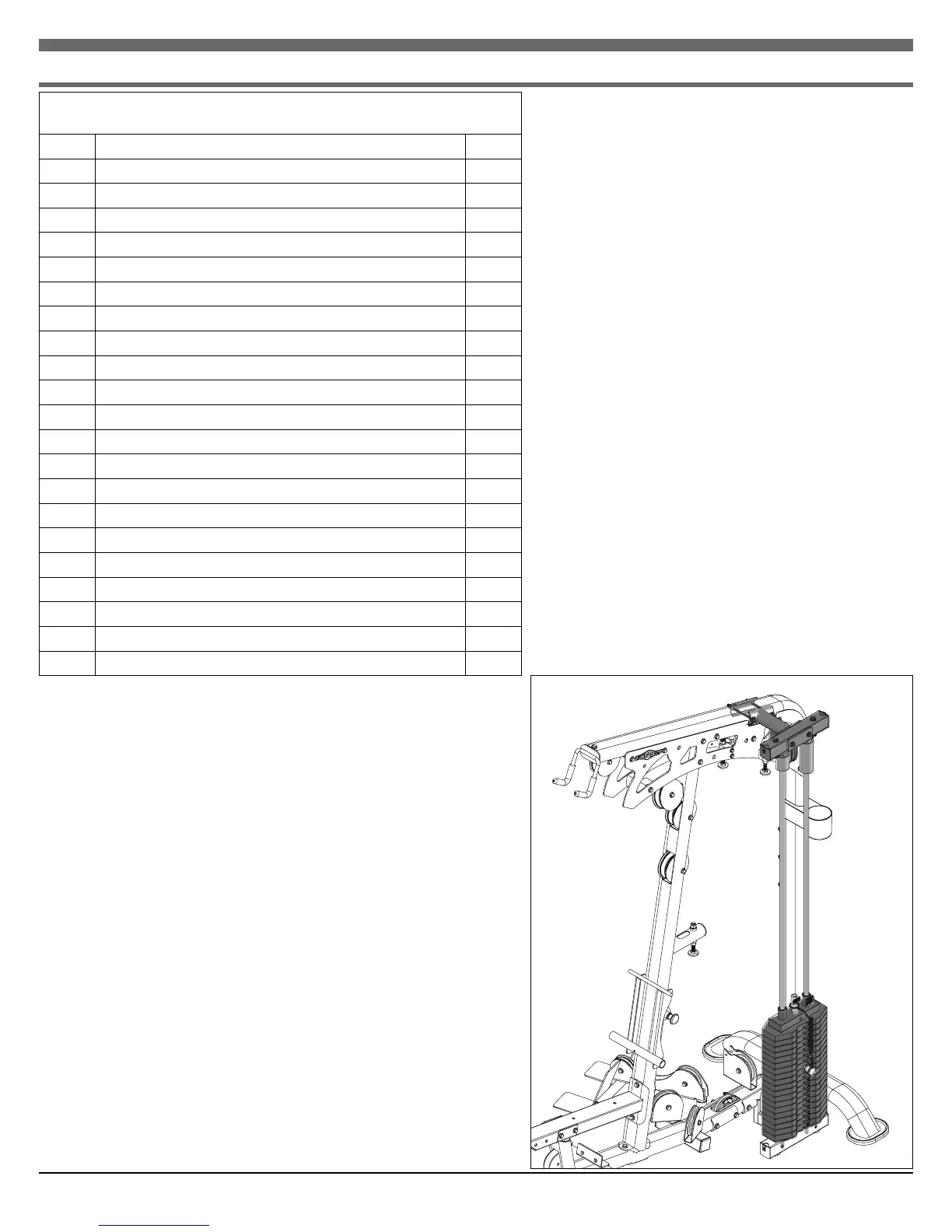

TuffStuff AXT-5S - Page 16

Step 7
Assembly List
Item # Description Qty.
1 ADD ON WEIGHT 2.5 LBS 1
2 ADD ON WEIGHT 5 LBS 1
6 ADD ON WEIGHT LOCK 2
11 CHROME GUIDE ROD 3/4 X 73 5/8 2
34 REINFORCEMENT PLATE 1/4 X 2 X 5 (BEND) 1
40 SELECTOR PIN W/COIL 1
48 TOP GUIDE ROD RETAINER 1
49 TOP GUIDE ROD RETAINER CONNECTOR 1
66 PULLEY 3/8 X 1 X 4 1/2 1
75 CHROME WASHER 3/8 X 1 1/2 2
101 FLAT WASHER SAE B/O 3/8” 10
111 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 1 3/4 1
121 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 5 1/4 2
123 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 3 4
134 NYLON INSERT LOCK NUT B/O 3/8-16 4
137 NYLON INSERT JAM LOCK NUT B/O 3/8-16 1
147 10 LB TOP PLATE W/ADJ. SLTR BAR 19 WTS 1
151 RUBBER DONUT 3/4 X 2 1/2 2
166 SPLIT LOCK WASHER B/O 3/8” 2
177 10 LB CAST WEIGHT PLATE GREY 19
16 AXT-5S_AXT-5D AXT- Pro-Style Home Gym
