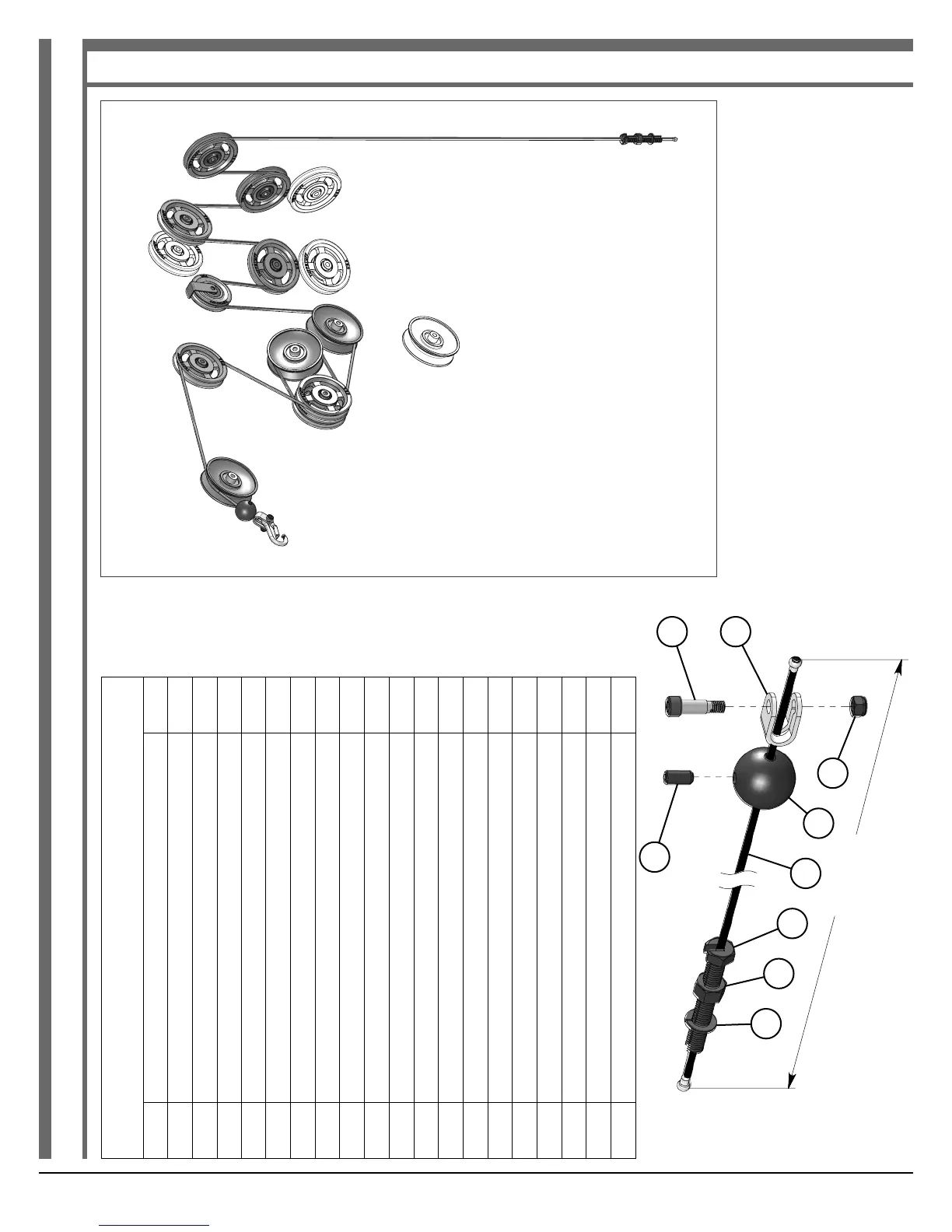

Step 12 Lat Cable Assembly
158
135
51
131
163
168
91
165
169
184 3/4”
Assembly List
Item # Description Qty.
4 ADJUSTABLE DOUBLE PULLEY BRACKET 2
10 CABLE RETAINER BRACKET (3 1/2 PULLEY) 1
51 LAT CABLE (184 3/4”) 1
65 PULLEY 3/8 X 1 X 3 1/2 1
66 PULLEY 3/8 X 1 X 4 1/2 1
91 FINISHED HEX NUT B/O 1/2-13 1
93 FLANGE SPACER 0.406 X 0.63 X 1.595 X 0.866 2
94 FLANGE SPACER 0.406 X 0.63 X 1.633 X 0.866 2
120 HEX HEAD CAP SCREW GR-5 B/O 3/8-16 X 5 2
131 NYLON BALL 1 3/4 X 5/16 1
134 NYLON INSERT LOCK NUT B/O 3/8-16 2
135 NYLON INSERT LOCK NUT B/O 5/16-18 1
158 SHOULDER BOLT ALLOY 3/8 X 3/4 1
159 SNAP LINK Z/P 8MM X 80MM 1
163 SOCKET SET SCREW ALLOY 3/8-16 X 3/4 1
165 SPLIT HEX TAP BOLT GR-5 B/O 1/2-13 X 3 1/2 1
168 SPLIT LOCK WASHER Z/P 1/2” 1
169 STRAP BRACKET 20 #SF20 STAINLESS STEEL 1
26 AXT-5S_AXT-5D AXT- Pro-Style Home Gym
