TuffStuff SXT-550 - Page 23

SXT-550 Deluxe Hybrid Trainer www.tustutness.com
23
134
94
77
94
133
77
*29
130
134

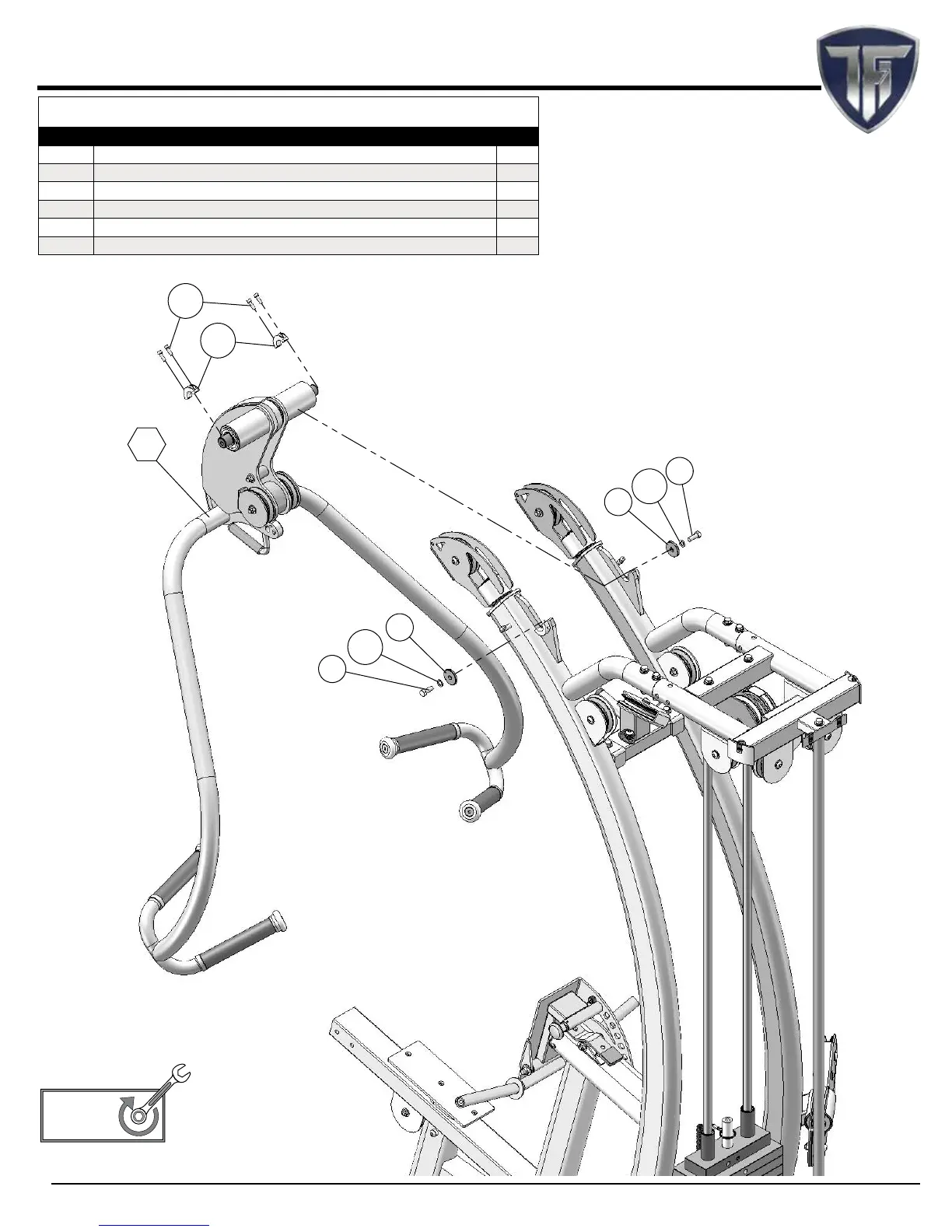

Step 6
100%
Fully Tighten
Fully Tighten
Wrench tighten all hardware in this step.
Step 6 Assembly List
Item # Description Qty.
*29 PRESS BAR 1
77 SUPPORT WASHER Z/P 3/8 ID X 1 1/2 OD X 3/16 2
94 HEX HEAD CAP SCREW GR-5 Z/P 3/8-16 X 1 2
130 “SOCKET CAP SCREW N/P 1/4-20 X 3/4” 4
133 SPLIT COLLAR B/O 1” 2
134 SPLIT LOCK WASHER Z/P 3/8” 2
