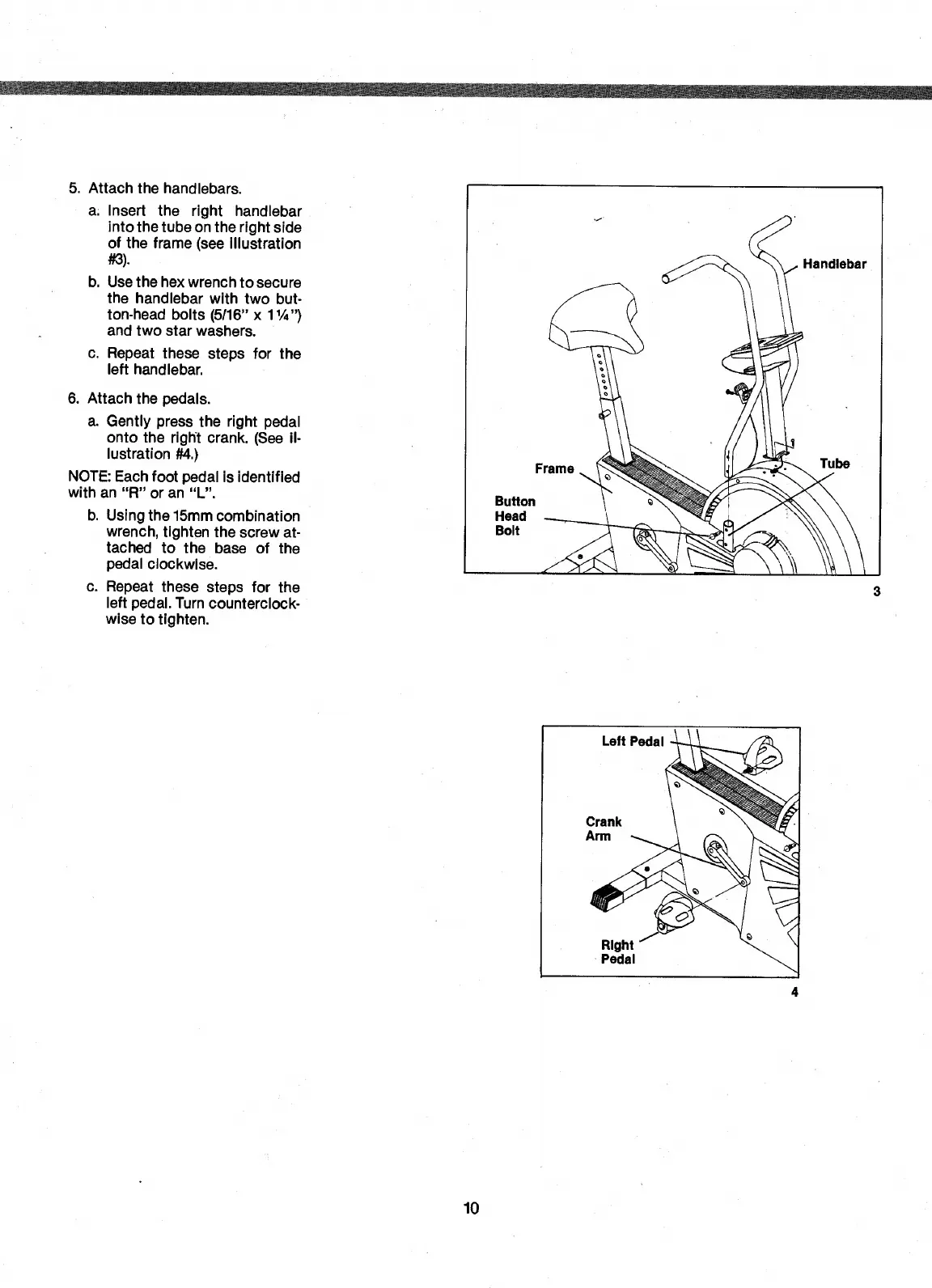

5. Attach the handlebars.
a. Insert the right handlebar
into the tube on the right side
of the frame (see illustration
#3).
b. Use the hex wrench to secure
the handlebar with two but¬
ton-head bolts (5/16” x IV 4 ” )
and two star washers.
c. Repeat these steps for the
left handlebar.
6. Attach the pedals.
a. Gently press the right pedal
onto the right crank. (See il¬
lustration #4.)
NOTE: Each foot pedal is identified
with an “R” or an “L”.
b. Using the 15mm combination
wrench, tighten the screw at¬
tached to the base of the
pedal clockwise.
c. Repeat these steps for the
left pedal. Turn counterclock¬
wise to tighten.
10
