Tunturi Aircycle E603 - Parts List

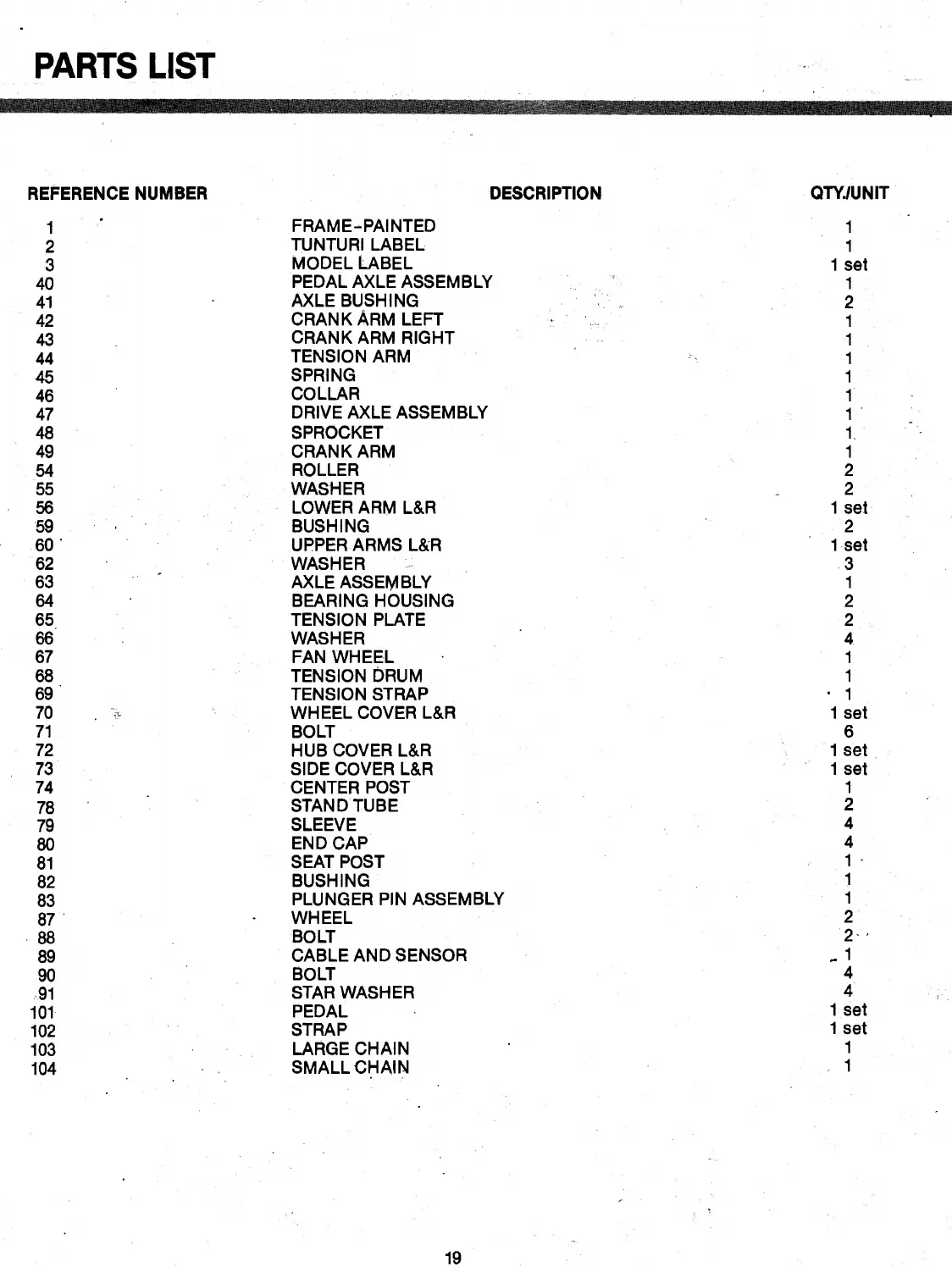

PARTS LIST
REFERENCE NUMBER
DESCRIPTION
QTY./UNIT
1
2
3
40
41
42
43
44
45
46
47
48
49
54
55
56
59
60
62
63
64
65
66
67
68
69
70
71
72
73
74
78
79
80
81
82
83
87
88
89
90
91
101
102
103
104
FRAME-PAINTED
TUNTURI LABEL
MODEL LABEL
PEDAL AXLE ASSEMBLY
AXLE BUSHING
CRANK ARM LEFT
CRANK ARM RIGHT
TENSION ARM
SPRING
COLLAR
DRIVE AXLE ASSEMBLY
SPROCKET
CRANK ARM
ROLLER
WASHER
LOWER ARM L&R
BUSHING
UPPER ARMS L&R
WASHER
AXLE ASSEMBLY
BEARING HOUSING
TENSION PLATE
WASHER
FAN WHEEL
TENSION DRUM
TENSION STRAP
WHEEL COVER L&R
BOLT
HUB COVER L&R
SIDE COVER L&R
CENTER POST
STAND TUBE
SLEEVE
END CAP
SEAT POST
BUSHING
PLUNGER PIN ASSEMBLY
WHEEL
BOLT
CABLE AND SENSOR
BOLT
STAR WASHER
PEDAL
STRAP
LARGE CHAIN
SMALL CHAIN
1
1
1 set
1
2
1
1
1
1
1
1
1
1
2
2
1 set
2
1 set
3
1
2
2
4
1
1
• 1
1 set
6
1 set
1 set
1
2
4
4
1
1
1
2
2
„ 1
4
4
1 set
1 set
1
1
19
