Copyright by Tunturi Oy Ltd 11 All information subject to changes
TUNTURI
SERVICE MANUAL
_____________________________________________________________________________________ Version 1/2000
Technical information
Manufacturer Devert Motorized Systems, Saksa
Operating voltage 24 VDC
Strike length 95 mm
Speed 6-11 mm/s depending on load and
inclination
Lift power 150 kg on rear roller

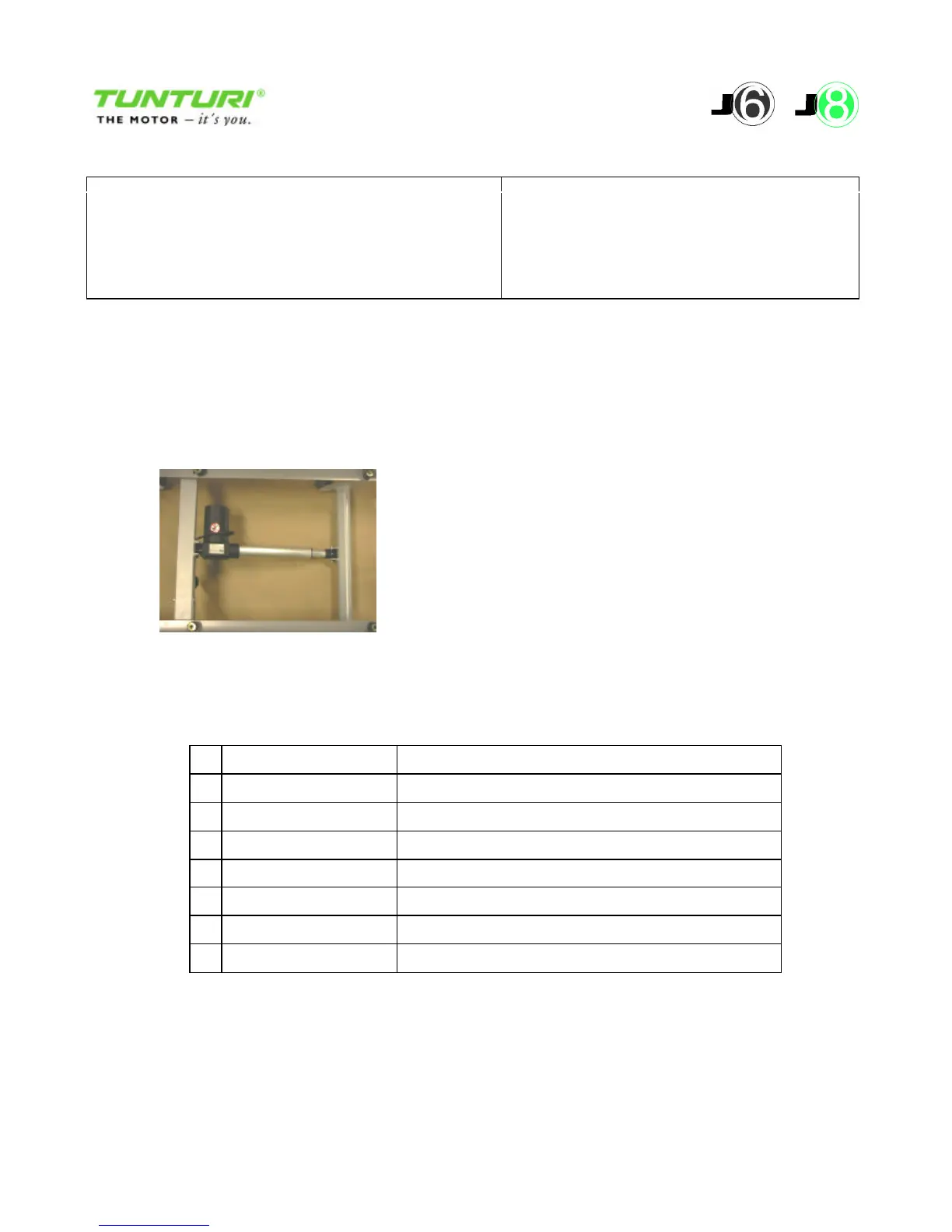

4 LIFT MOTOR AND LIFT ARM
4.1 Lift motor
The lift motor is a 24 V DC motor, and can be used in both voltage areas (US and EU). The motor
gives a pulse information when in motion through a back switch. The electronics recognizes motor
overload, cuts off the control and notifies the meter. The thermal protector allows driving the lift
motor up and down five times in a row with the maximum load (150 kg on the rear roller) without
releasing.
4.1.1 Lift motor wiring
As in T-Track: 8-pin Molex connector has a 24 V motor controls and a 5 V connection of the
pulse sensor.
1 Green Motor supply voltage (+) drive up
2 Green Motor supply voltage (+) drive up
3 Red Motor supply voltage (-) drive down
4 Red Motor supply voltage (-) drive down
5 Brown GND
6 White GND
7 Black Sensor pulse voltage +5 VDC
8 Lilac Sensor pulse signals
Chart 4-1 Lift motor cable colors and signals
