FIGURE

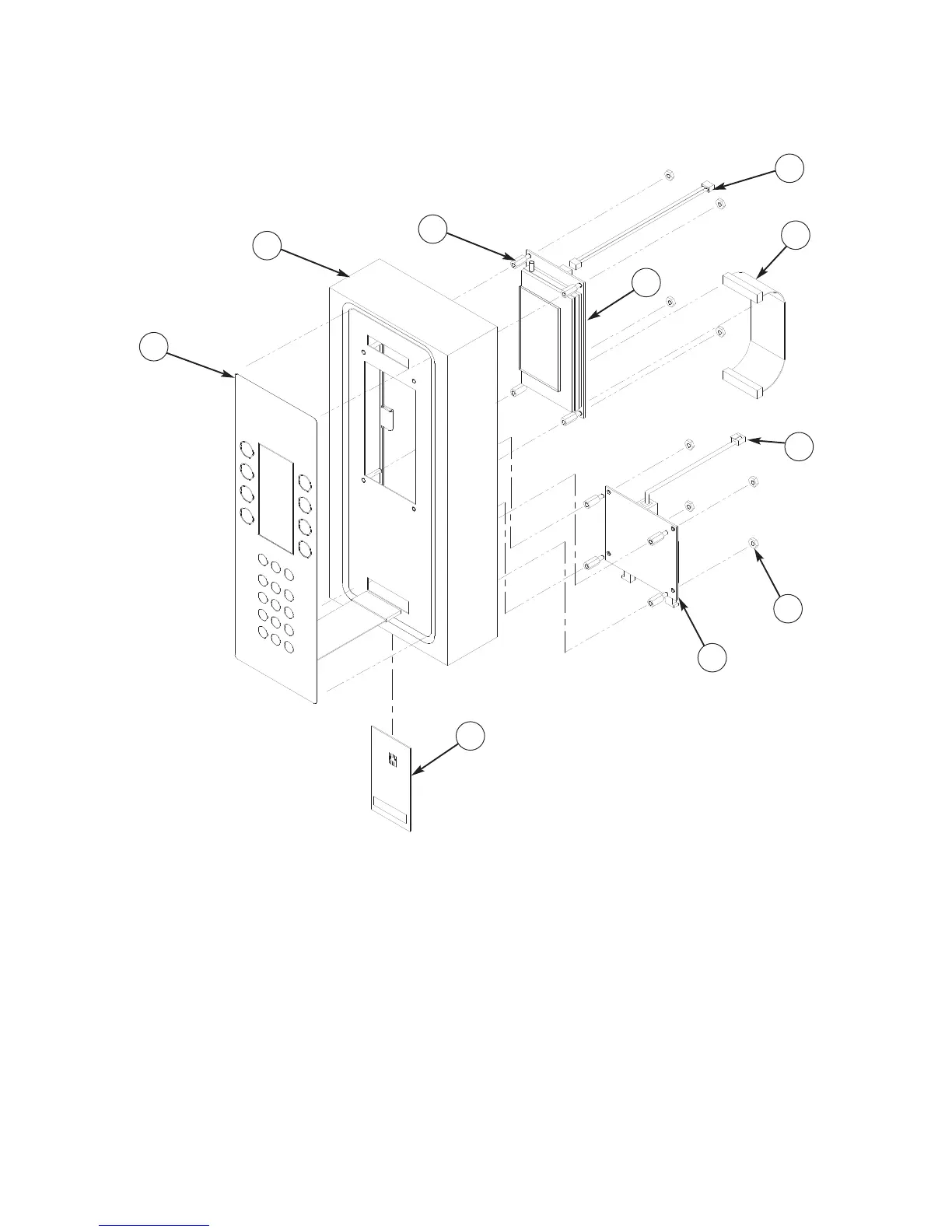

17: Control System Panel Enclosure and Parts
CONTROL SYSTEM PANEL PARTS
Figure 17.
1. NGC-1040 Cover, Keypad/Display, Std
NGC-1209 Cover, Keypad/Display, SBK
2.
102960 Nut, 4-40, Stainless
3.
100508
Smart Card, Blank
(Varies)* Smart Card, Programmed*
4. NGC-3023 Display Svc Kit (includes
Items 5, 6, and 7)
5.
101954 Spacer, 1/2” Lg, Aluminum
6. 100193 3-Pin Power Cable
7. 100184 26-Pin Ribbon Cable
8.
NGC-1110-1 Keypad, NGC, Standard
NGC-1110-2
Keypad, NGC, SWY
NGC-1110-3
Keypad, NGC, SBK
NGC-1110-4 Keypad, NGC, OUT
9. 100506 Smart Card Reader
10. 100182 Smart Card Reader Cable
* Contact TurboChef (800.90TURBO or
+1 214.379.6000
) for more info/part numbers.
1
2
3
4
5
6
7
10
9
THE CONTROL SYSTEM
20
8
