e-Boost-40 Instructionse-Boost-40 Instructions
Page 12
PART NUMBER
FG-EBOOST-40FG-EBOOST-40

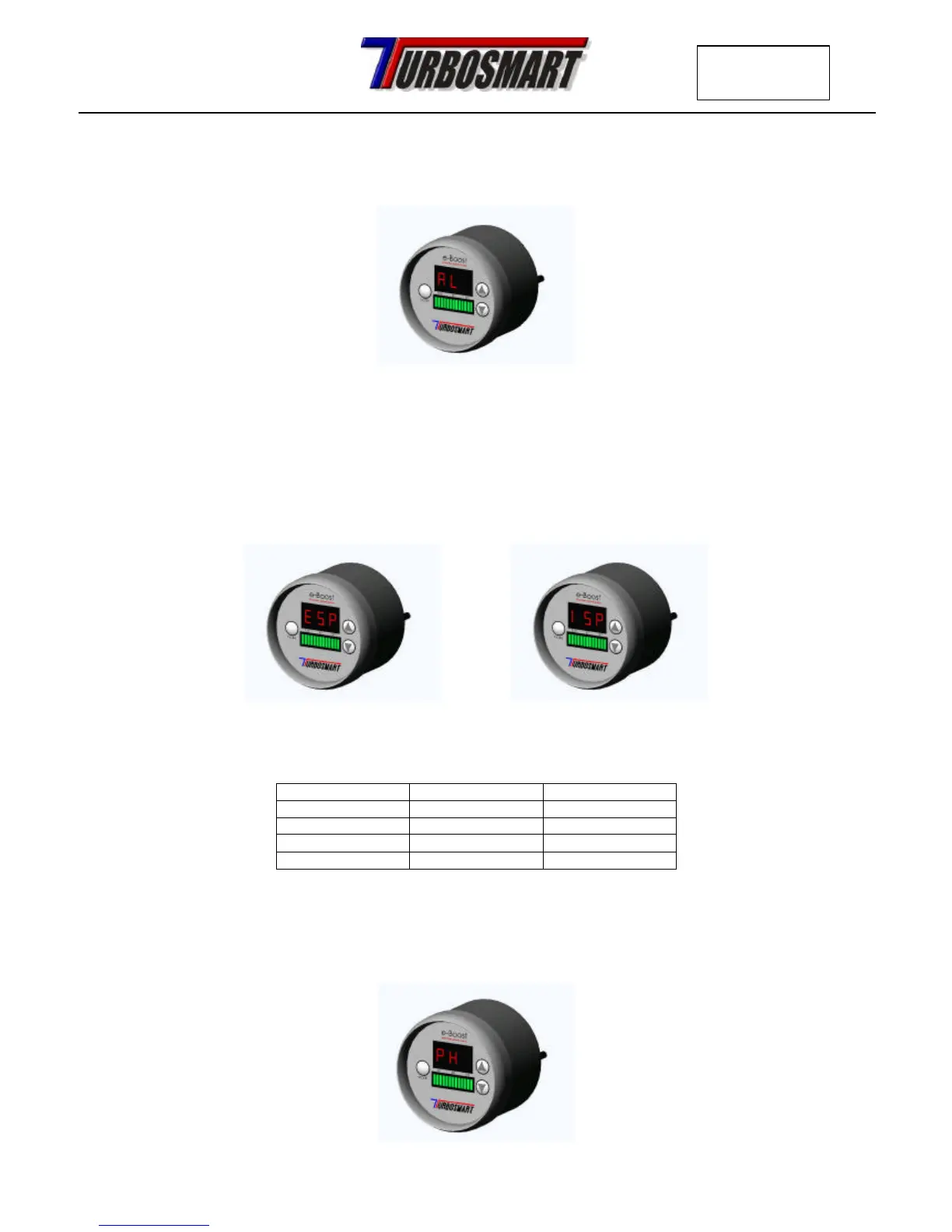

5c. Audible Alarm
The e-Boost has an audible alarm function that sounds the internal buzzer once a certain boost pressure is achieved. This alarm can be used to
confirm that full boost has been reached or as an over boost warning and can be programmed for any boost pressure. The audible alarm has
been factory set to 1 bar (14.7 psi or 100 kpa).
To change the audible alarm enter the user parameter menu, then scroll to the AL parameter. Press and hold the Mode button for two
seconds, press the up or down arrow to scroll to the desired pressure. Note, the number that appears in this parameter will be in bar, psi or
kpa, depending on what has been set in the readout parameter, see section 4b for more detail. Press the Mode button momentarily and the
alarm pressure will be stored. Press the Mode button again to return to Live Mode.
5d. Using External Set Points
The e-Boost has three different boost set points. These can be triggered internally, via the up / down arrows, or externally by grounding or
earthing the green and or orange wires to the chassis. The external set points are selected by earthing the appropriate wire corresponding
with the set point you wish to select, see the table below for detail. The e-Boost is factory set for internal set point switching.
To configure the e-boost for external set point trigger enter the user parameter menu, then scroll to the ISP parameter. Press and hold the
Mode button for two seconds, press the up or down arrows to change between ISP and ESP. Press the Mode button momentarily and the
selection will be stored. Press the Mode button again to return to Live Mode.
Active set point Green wire Orange Wire
Set point 1
Not connected Not connected
Set point 2
Earthed Not connected
Set point 3
Not connected Earthed
Set point 3
Earthed Earthed
5e. Peak Hold Function
The e-Boost has a peak hold function PH, that records peak boost pressure. Each time a higher pressure is produced the previous figure is
discarded. To access the peak hold you must be in live mode. Press the Mode button twice to view PH parameter. Note, the number that
appears in this parameter will be in bar, psi or kpa, depending on what has been set in the readout parameter, see section 4b for more detail.
Press the Mode button momentarily to clear the peak hold memory and return to Live Mode.
