e-Boost-40 Instructionse-Boost-40 Instructions
Page 4
PART NUMBER
FG-EBOOST-40FG-EBOOST-40

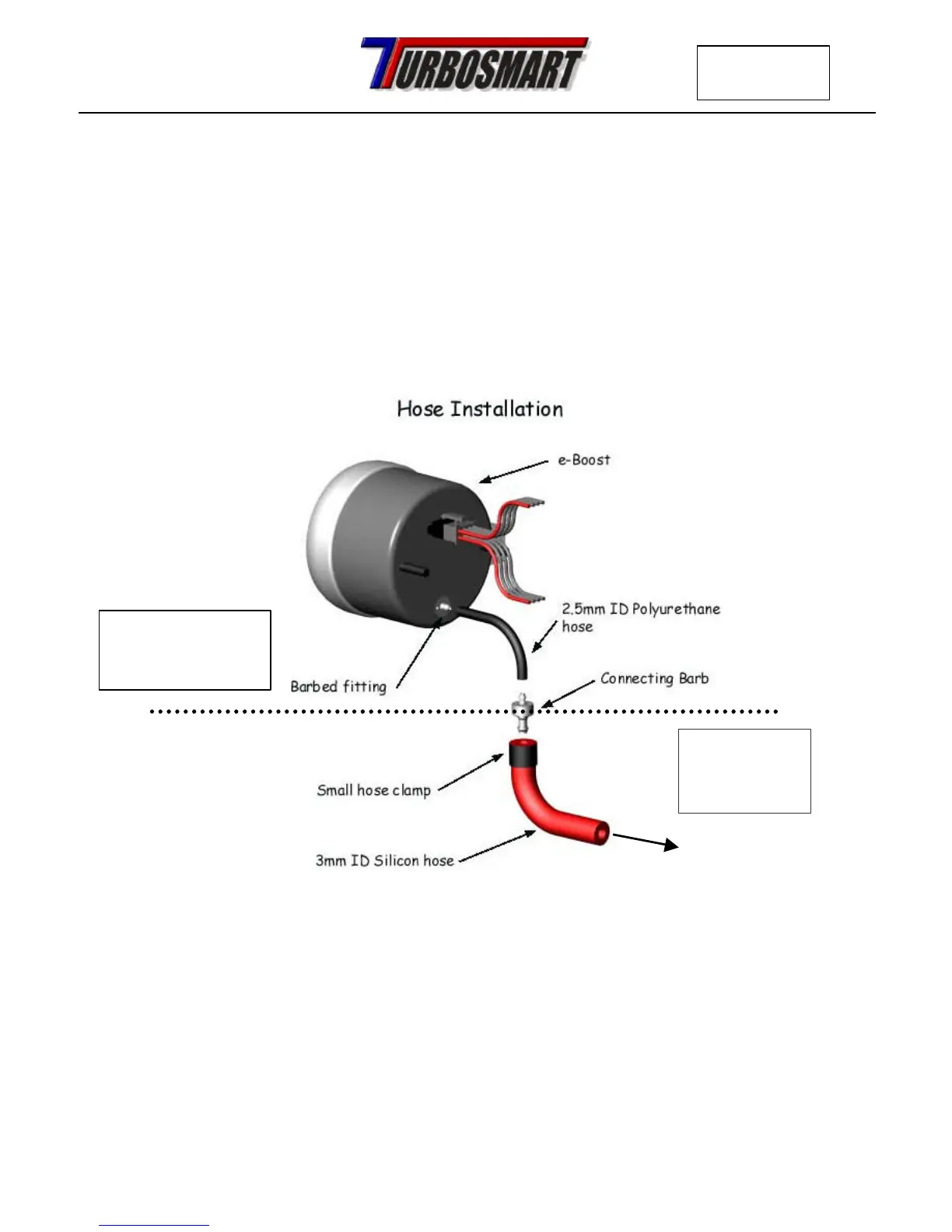

2b. Mounting the e-Boost
- The e-Boost is designed to be panel mounted with the bracket supplied. Alternatively the e-Boost can be mounted in a 66mm (2 5/8 inch)
gauge cup.
- The e-boost is not waterproof and must be mounted accordingly, i.e. inside the cabin.
- Connect the 2.5mm hose to the barbed fitting on the back of the e-Boost. Ensure that it is pressed all the way on and take care not to kink
the hose when routing it through the dashboard.
- Connect the 3mm silicon hose to the 2.5mm hose with the connecting barb, ensure that the polyurethane hose does not enter the engine
bay. Route the 3mm silicon through the engine bay and connect the end to the inlet manifold.
- Use the small hose clamps supplied to secure the silicon hose.
Use the 3mm
silicon hose in
the engine bay
Use the 2.5mm
polyurethane hose
under the dashboard
Connect to inlet manifold
