Turbosmart e-Boost-40 User Manual

e-Boost-40 Instructionse-Boost-40 Instructions
Page 5
PART NUMBER
FG-EBOOST-40FG-EBOOST-40
2c. Installing the e-Boost solenoid
- Mount the e-Boost solenoid in an appropriate position in the engine bay with the screws supplied.
- The e-Boost solenoid is rated to 100 degrees Celsius (212 degrees Fahrenheit), ensure that it is mounted a minimum of 250mm away from
the turbo or exhaust manifold, otherwise heat-shielding maybe required.
- If your vehicle is fitted with a factory boost control solenoid it MUST BE REMOVED from the hose that runs between the pressure
source and the wastegate actuator, failure to remove the solenoid will cause erratic or fluctuating boost pressure.
- Ensure that the factory boost control solenoid remains connected to the ECU’s wiring harness.

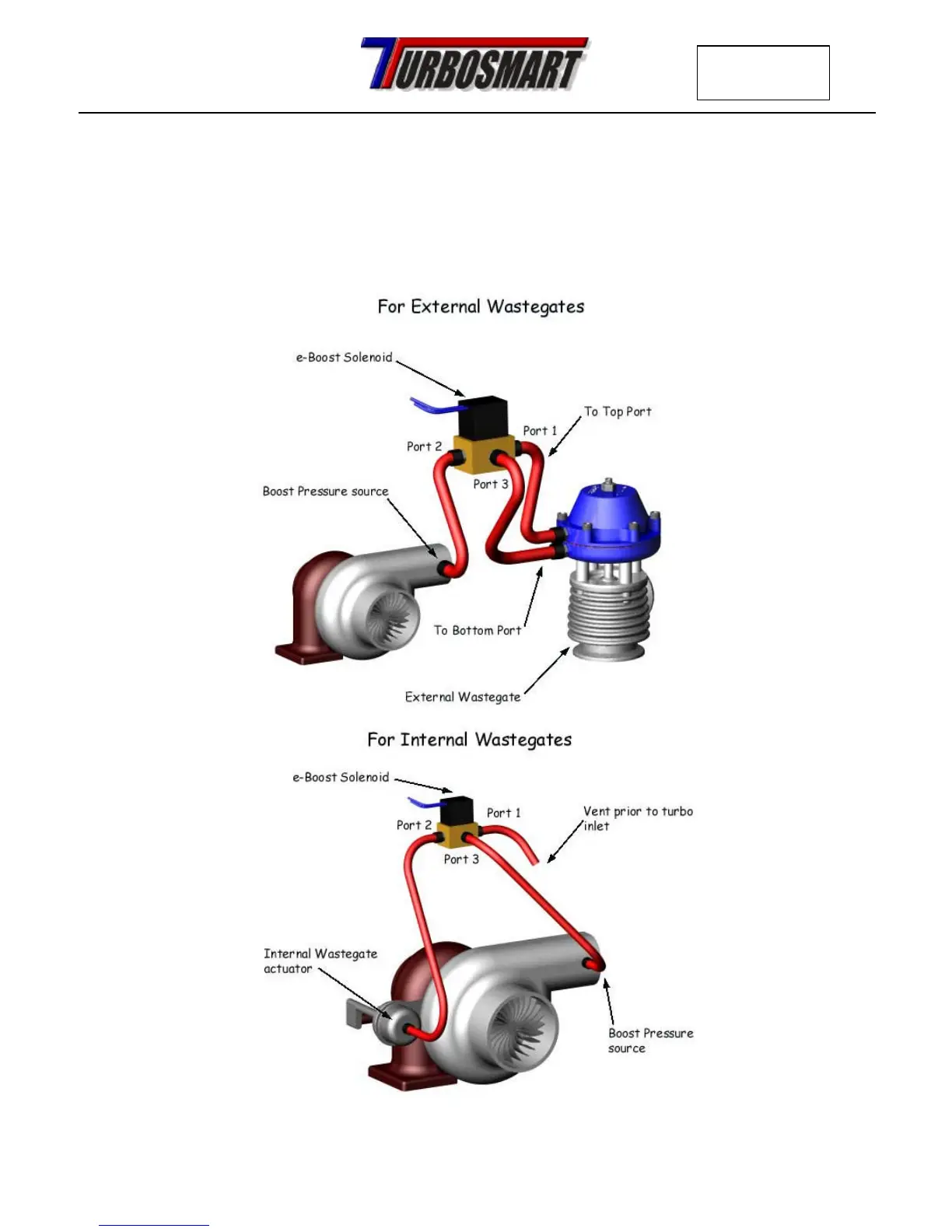

- Connect the ports on the e-Boost solenoid according to the appropriate diagram below, use the 5mm ID silicon hose supplied, secure all
connections with hose clamps supplied.
