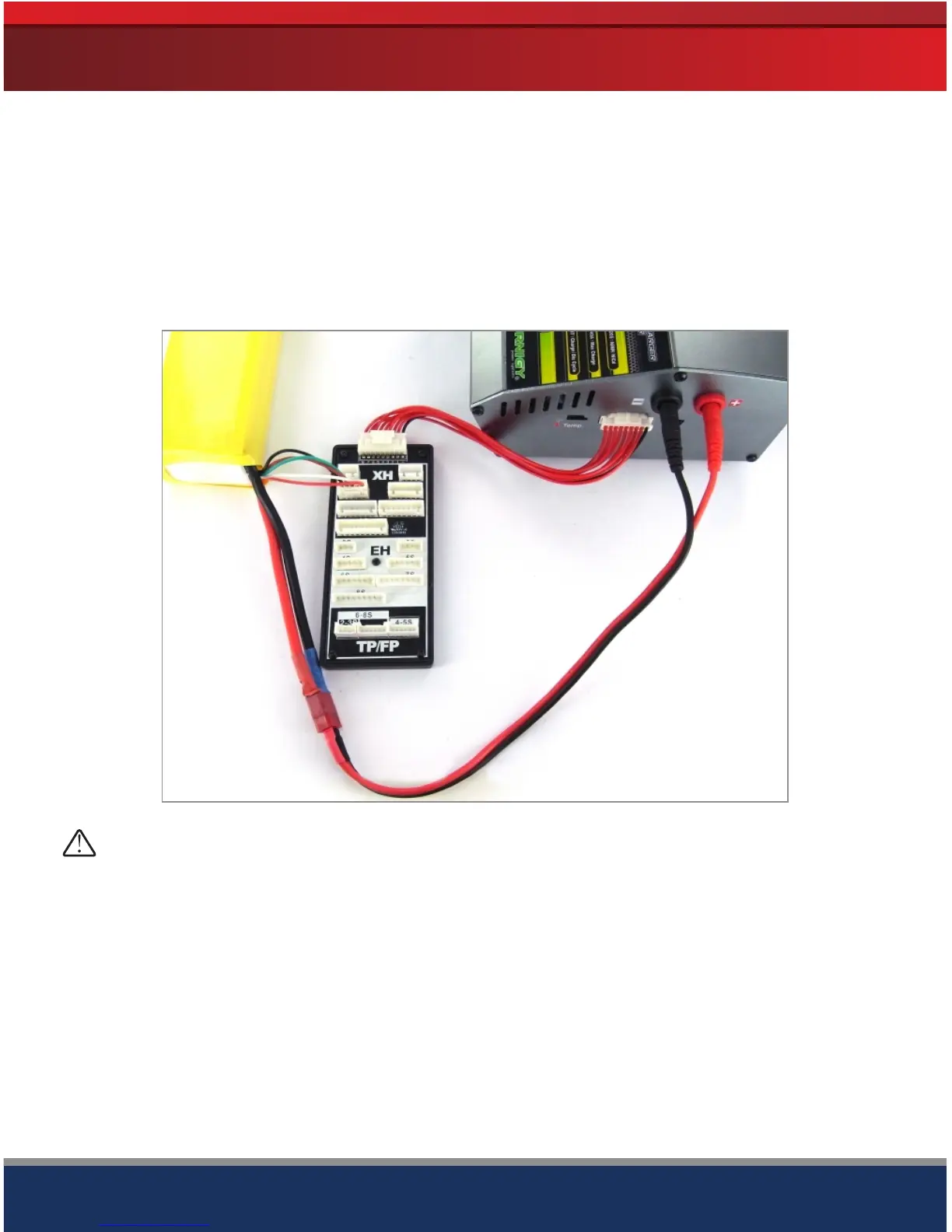

This diagram shows the correct way to connect your battery to the Turnigy Mega 1000W
while charging in the balance charge program mode only.
Failure to connect as shown in this diagram will damage this charger.
To avoid short circuit between the charge lead always connect the charge cable to the
charger first, then connect the battery. Reverse the sequence when disconnecting.
WARNING:
Balance socket:
The balance wire attached to the battery must be connected to the charger balancing
port. Take care to maintain correct polarity!
(Wiring diagram: see below.)
LITHIUM BATTERY(LIPO/LILO/LIFE)PROGRAM
Turnigy Mega 1000W
