Page 10 of 16
939500070 Rev E
4
5
6
SPRING

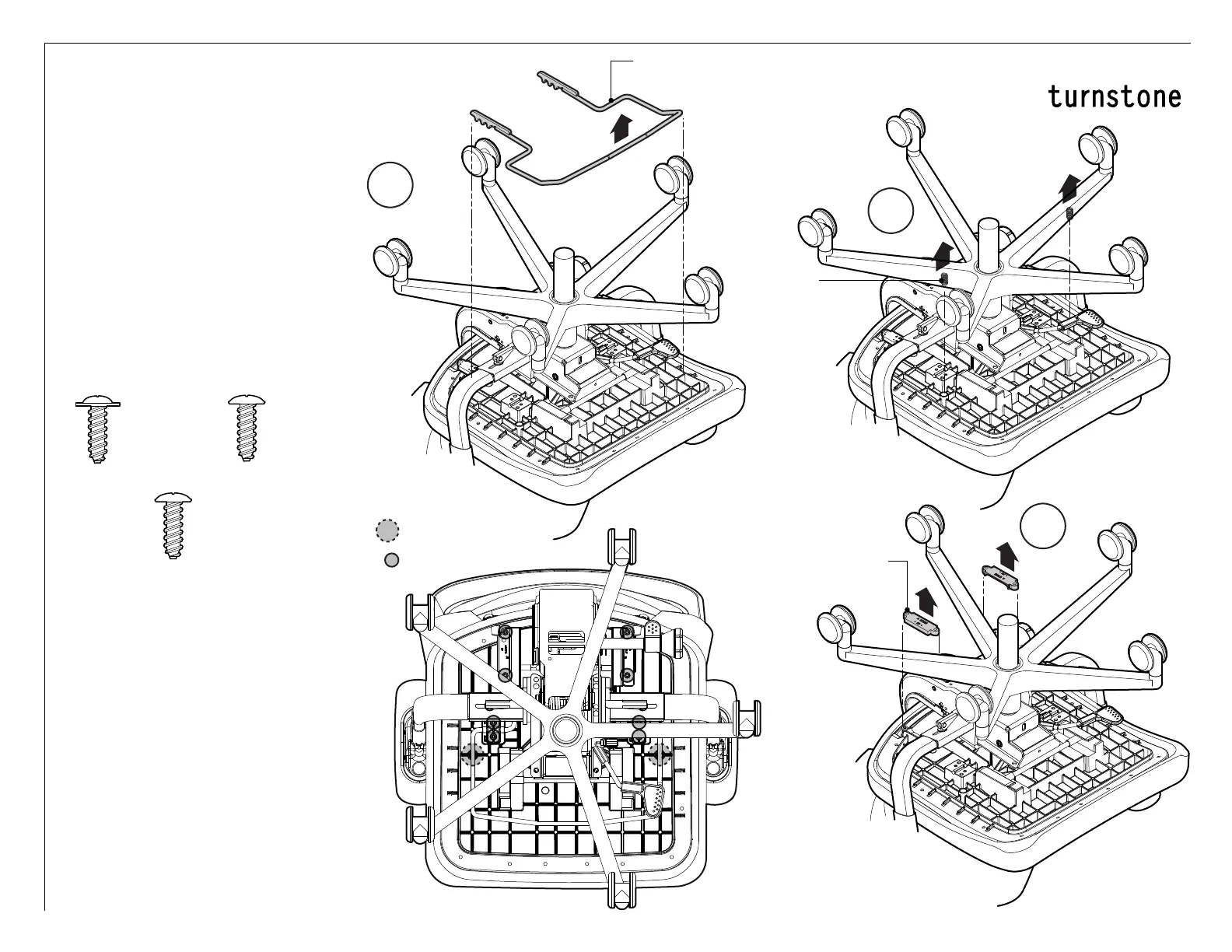

Replacement of
Seat-Slide Assembly
(Continued)
4.
Remove seat slide handle.
5. Remove springs.
6. Remove seat retainers.
7. Determine which screws you
have that attach the seat slide handle
guards and seat retainers:
If you have the old screw, this must
be replaced with the new screw.
If you have the intermediate screw
and you are NOT replacing the seat,
apply loctite to the screws and reuse.
If you are replacing the seat, use the
supplied new screw.
If you have the new screw, you can
reuse it.
8. Install new parts in reverse order
(steps 6 through 2).
9. Ensure the screws are tight.
SEAT SLIDE
HANDLE
SEAT
RETAINER
= Spring Locations
= Screw Locations
OLD
TORX DRIVE
WASHER HEAD
NEW
TORX DRIVE
PAN HEAD
INTERMEDIATE
PHILLIPS DRIVE
PAN HEAD
To Next Page
