Page 13 of 16
939500070 Rev E
1
SCREW
2
3a
3b
ARM
CAP

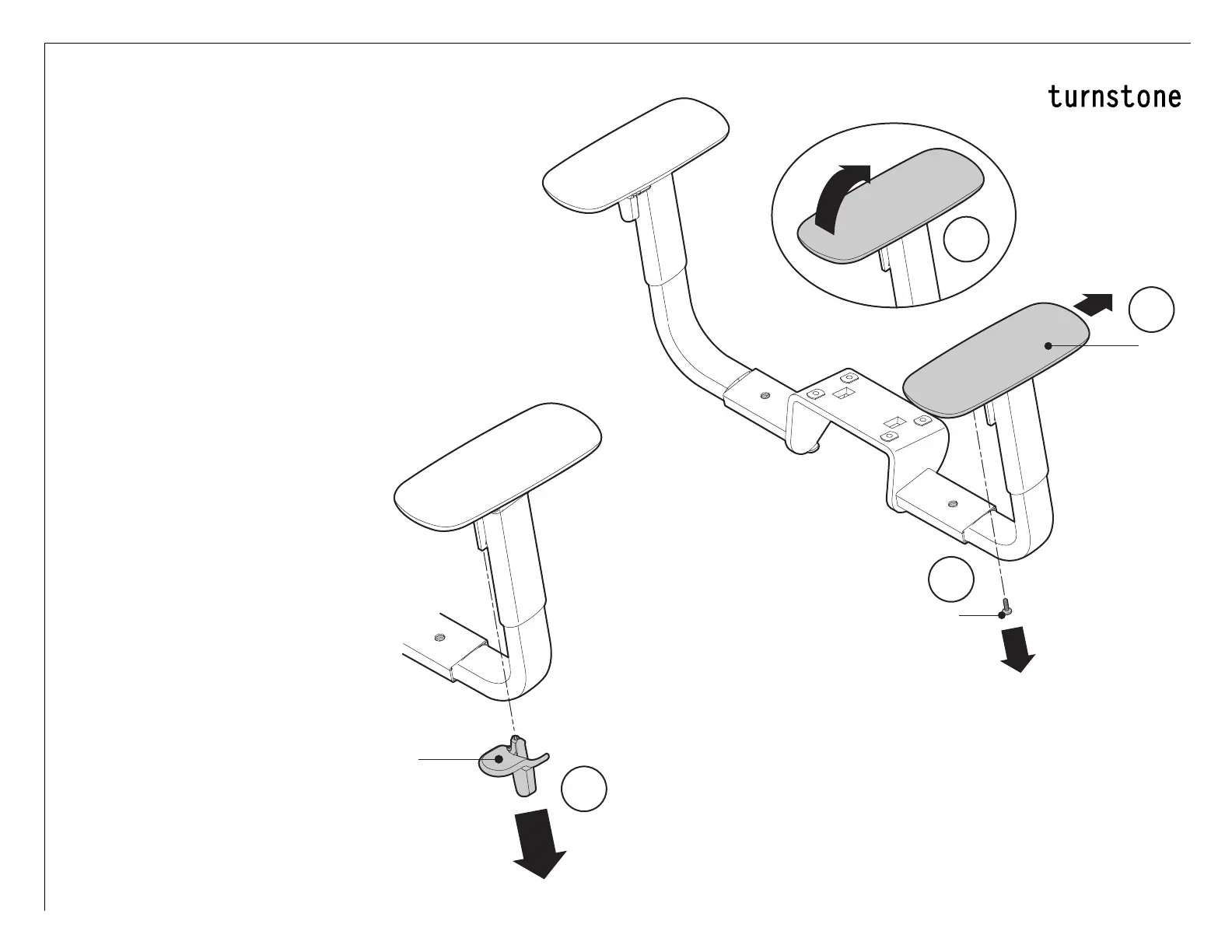

Replacement of Arm Caps
1.
If your chair has adjustable arms, remove
the height adjustment lever, it should come off
by hand, if not use a 1/2" wrench, or similar, to
pry it and wiggle it the rest of the way off.
2. Remove the Phillips screw.
3. Push armcap towards the back (3a) and
rotate up on the front of the arm cap (3b).
4. Put the new arm caps hook into slit. Seat
the arm cap, and fasten with the screw.
NOTE: If reusing screws, apply loctite before
assembly.
5. Replace height adjustment lever.
HEIGHT
ADJUSTMENT
LEVER
