Turnstone Crew Task Chair - Replacement of Seat-Slide Assembly

Page 9 of 16
939500070 Rev E
1
= Spring Locations
= Screw Locations
2
3

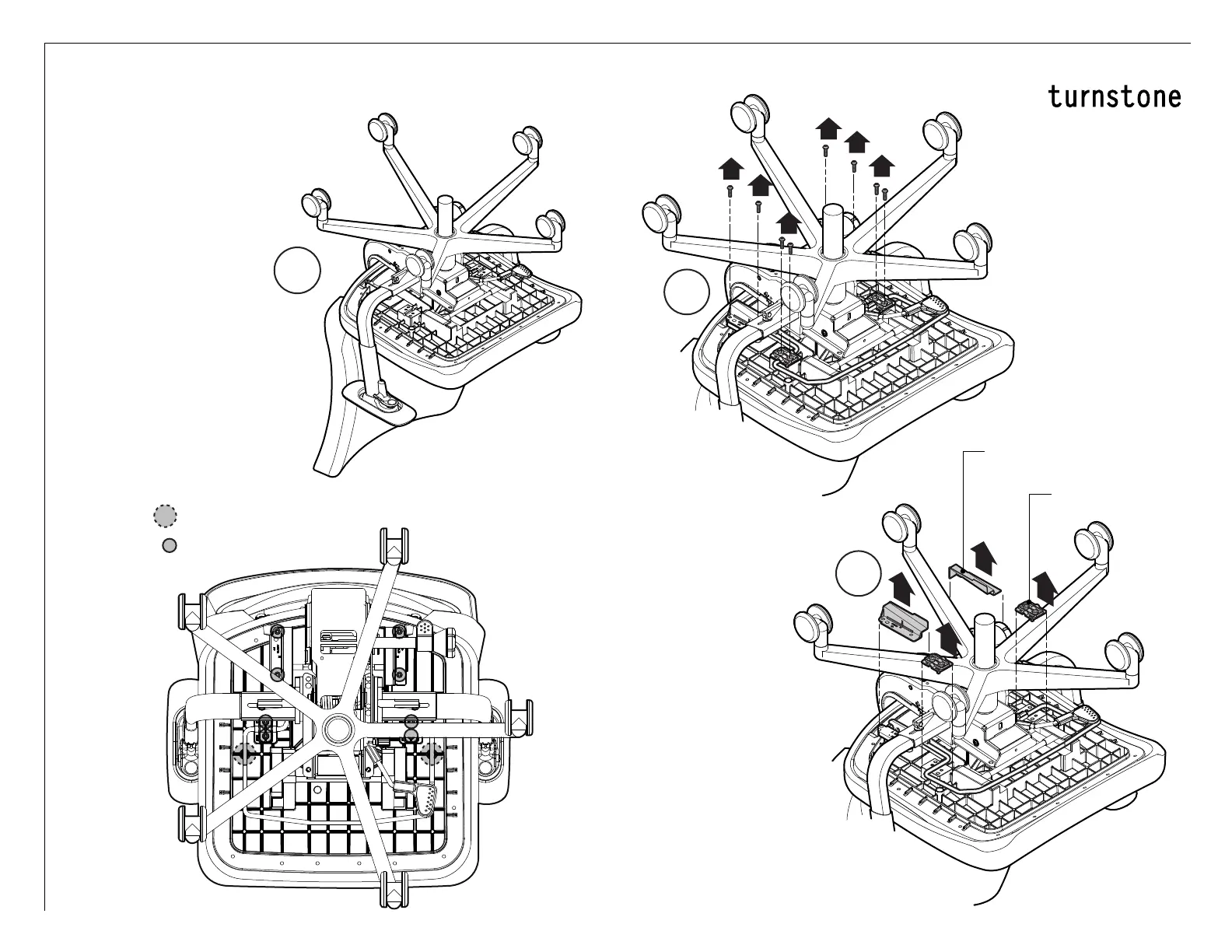

Replacement of
Seat-Slide Assembly
1.
Gently rest chair on its back.
2. Remove eight (8) torx drive
screws.
3. Remove seat slide
handle guards and seat
slide handle brackets.
SEAT SLIDE HANDLE
GUARD
SEAT SLIDE HANDLE
BRACKET
