5
CHAIR
CONTROL
Replacement of Chair Control
1.
Remove the seat assembly by performing
steps 1 and 2 on page 10.
2. Remove the seat back by performing
steps 1 through 3 on pages 6 and 7.
3. If applicable, remove the arm assembly
by performing steps 1 through 3 on page 11.
4. Remove the pneumatic cylinder from the
control by performing steps 1 through 4 on
page 3.

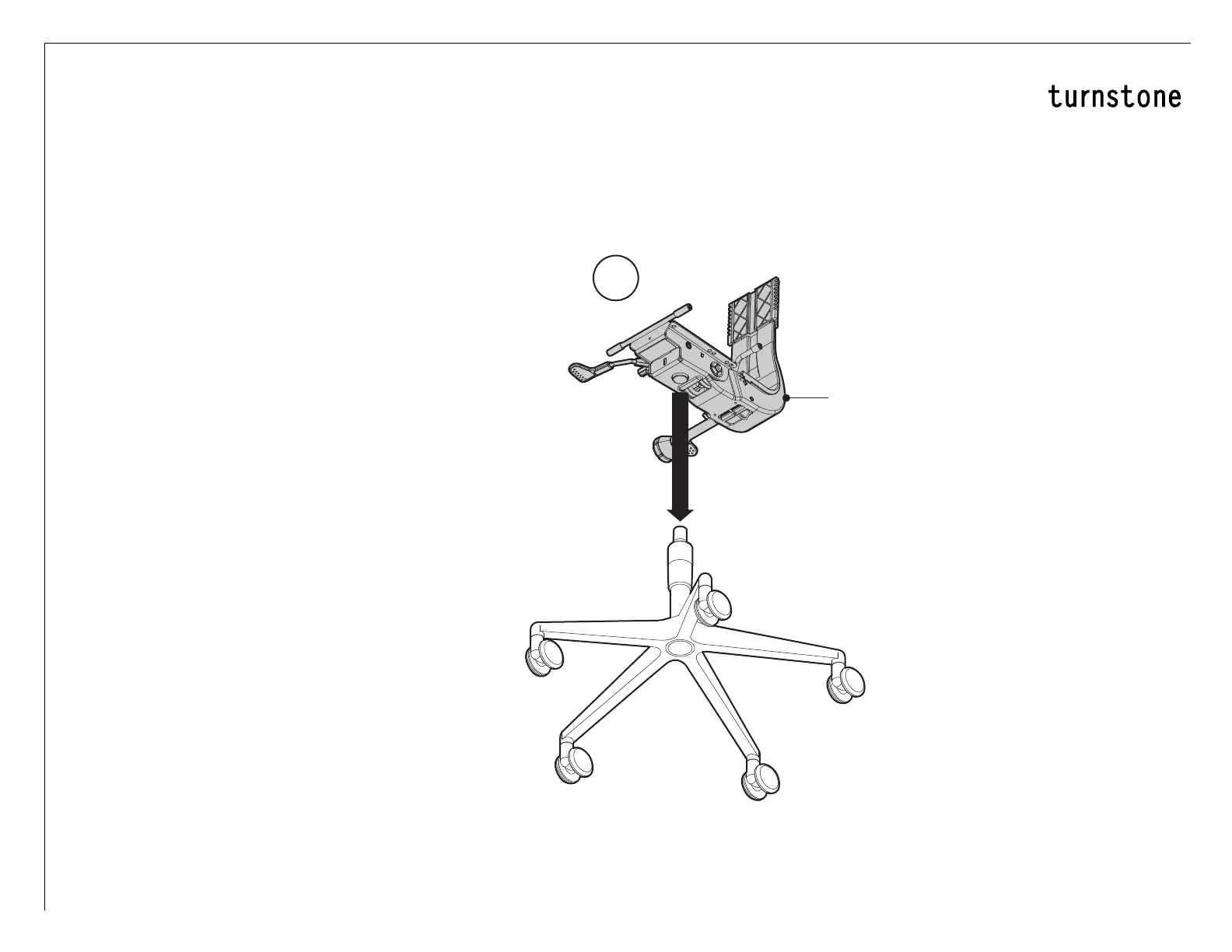

5. Place new chair control onto cylinder,
ensuring that it is solidly seated.
6. If applicable reinstall arm assembly by
performing steps 4 through 6 on page 11
7. Mount seat assembly by performing steps
3 and 4 on page 10.
8. Install the seat back assembly by
performing step 4 on page 7.
