Turnstone Crew Task Chair - Page 4

Page 4 of 16
939500070 Rev E
Replacement of Pneumatic
Cylinder (Continued)

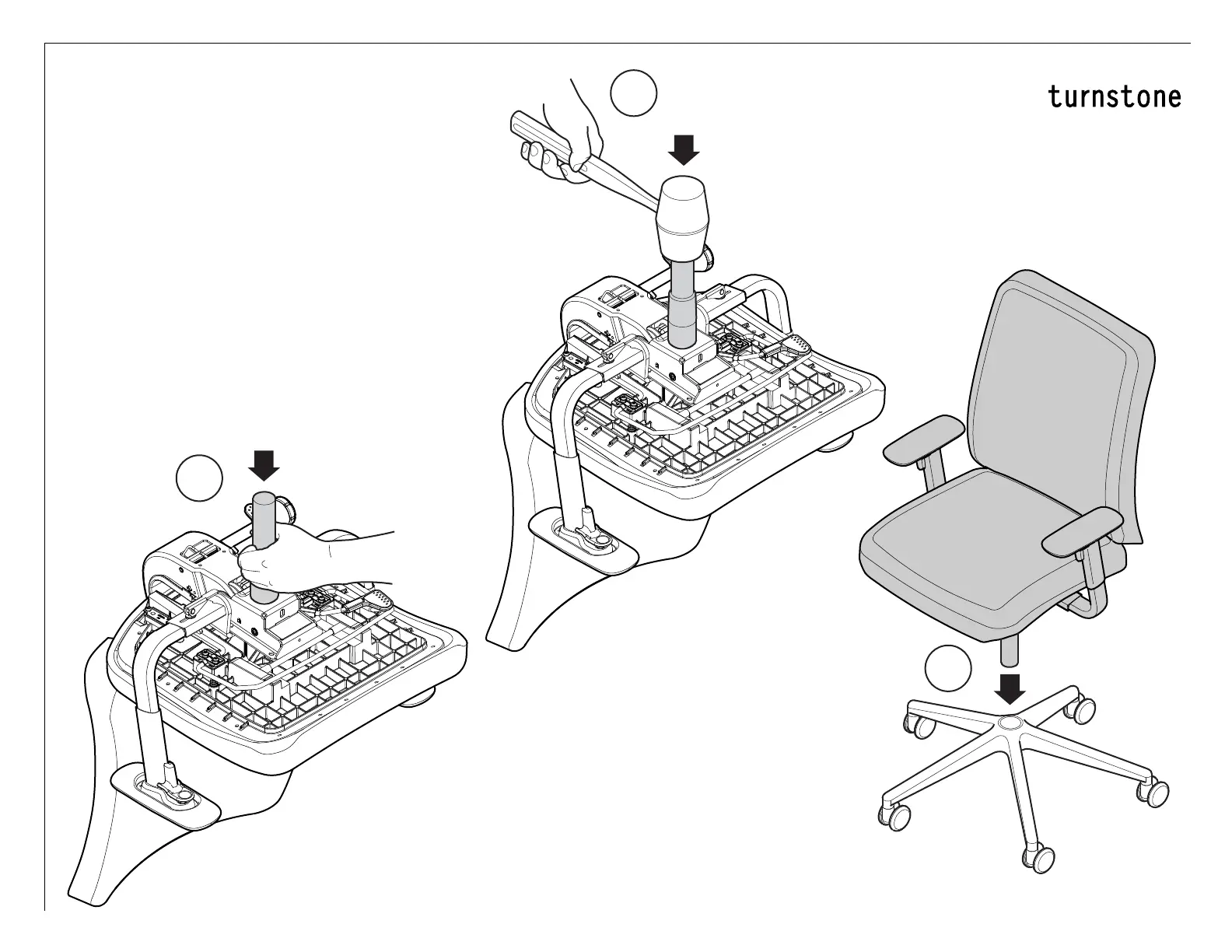

To install new Pneumatic Cylinder
5.
Insert new cylinder into chair (5a). Lightly
tap once with a non-marring hammer (5b).
6. Set chair with new cylinder into the base
of the chair.
7. Adjust height to ensure the pneumatic
cylinder is aligned properly.
5b
6
5a
