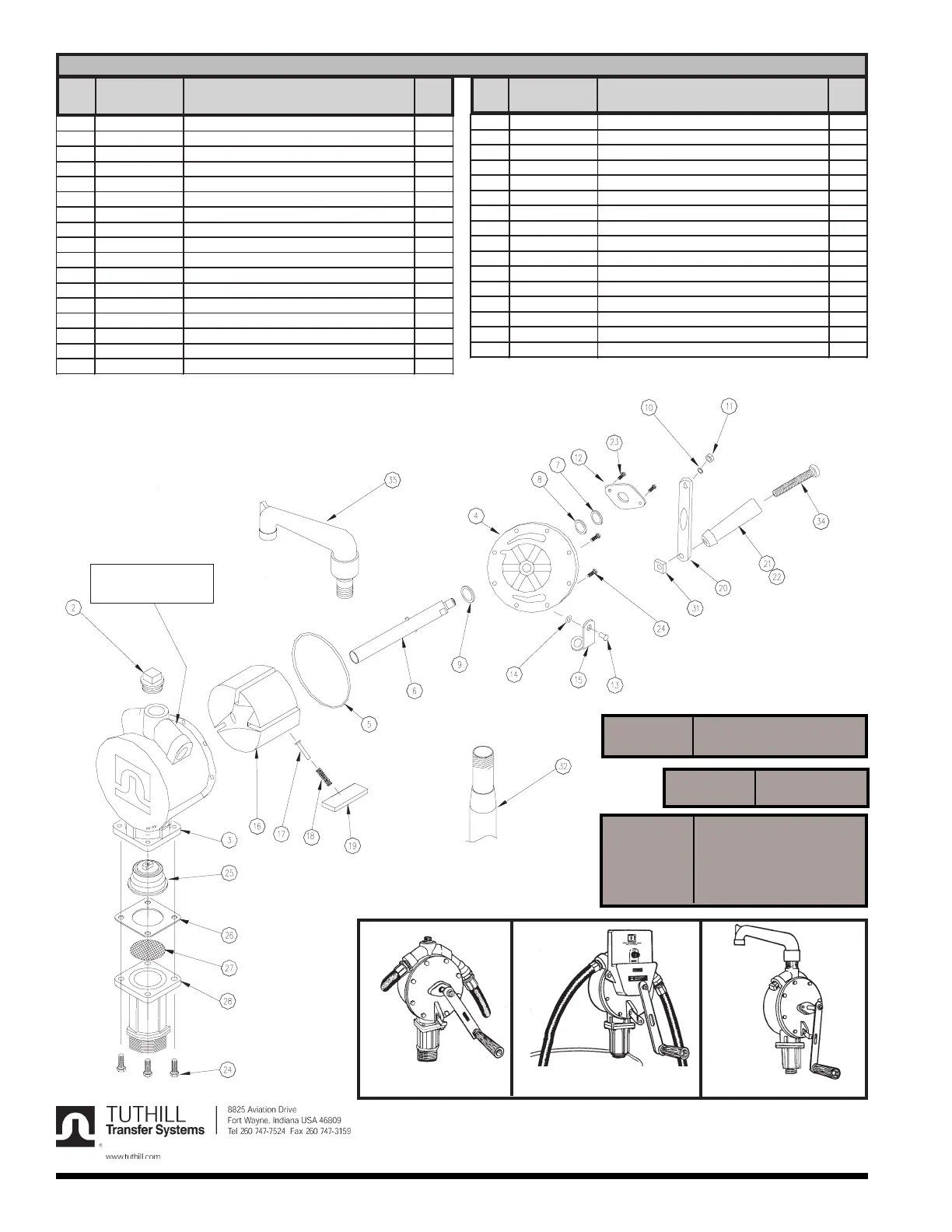

100 SERIES PUMP PARTS LIST
ITM. PART
NO. NO. DESCRIPTION QTY.
ITM. PART
NO. NO. DESCRIPTION QTY.
807CMK Gallon Meter Kit
807CLMK Liter Meter Kit
100KTF1214 Repair Kit (Includes items 2,
5, 7, 8, 17, 18, 19, 26 & 27)
100ACC111 Gallon Counter Kit
100ACC111L Liter Counter Kit
F1810PM0 Particulate Filter Kit
F1810HM0 Hydrosorb (Water) Filter Kit
1200KTG9075 Filter Head
FR112
FR112C
FR113
100G9132 REV. 1
Date of Manufacture
(Week-Year)
1 H058G9054 8' Hose - UL Listed 1
2 5200F1869 Vacuum Breaker 1
3 100F0640 Pump Body 1
4 100F0660 Cover 1
5 100F0801 O-Ring (-159) 1
6 100F0701 Shaft 1
7 100F0820 Seal Washer 1
8 100F2062 O-Ring (-114) 1
9 30F4660 Washer 1
10 704F3720 3/8 Lockwasher 1
11 704F3710 3/8-16 Hex Nut 1
12 5200F1360 Bearing Plate 1
13 5200F1410 1/4 x 5/8 Rivet 1
14 5200F1440 1/4 Spring Washer 1
15 100F1180 Locking Link 1
16 100F0680 Rotor 1
17 100F1170 Spring Pin 3
18 100F0720 Vane Spring 3
19 100F0710 Vane 3
20 30F4540 Crank 1
21 100F1085 Wood Grip 1
22 100F1086 Grip Ass
(Includes items 21, 31, 34) 1
23
VP1400F8822
#10-24 x 1/2 TORX PH 2
24 100G8800 1/4-20 x 3/4 HWHTRS 12
25 100F0741 Check Valve Assembl
1
26 100F0790 Inlet Gasket 1
27 100F0760 Screen 1
28 100G9283 Inlet Flange 1
29 5200F1790 Nozzle 1
31 30F5760 5/16-18 Square Nut 1
32 5200F1839 Suction Pipe 1
34 100F1090 5/16-18 x 4 RHMS 1
35 5200F1619 Discharge Spout Assembl
Opt.
To Next Page
