Tuthill M-D Pneumatics 7021 - Specifications

7

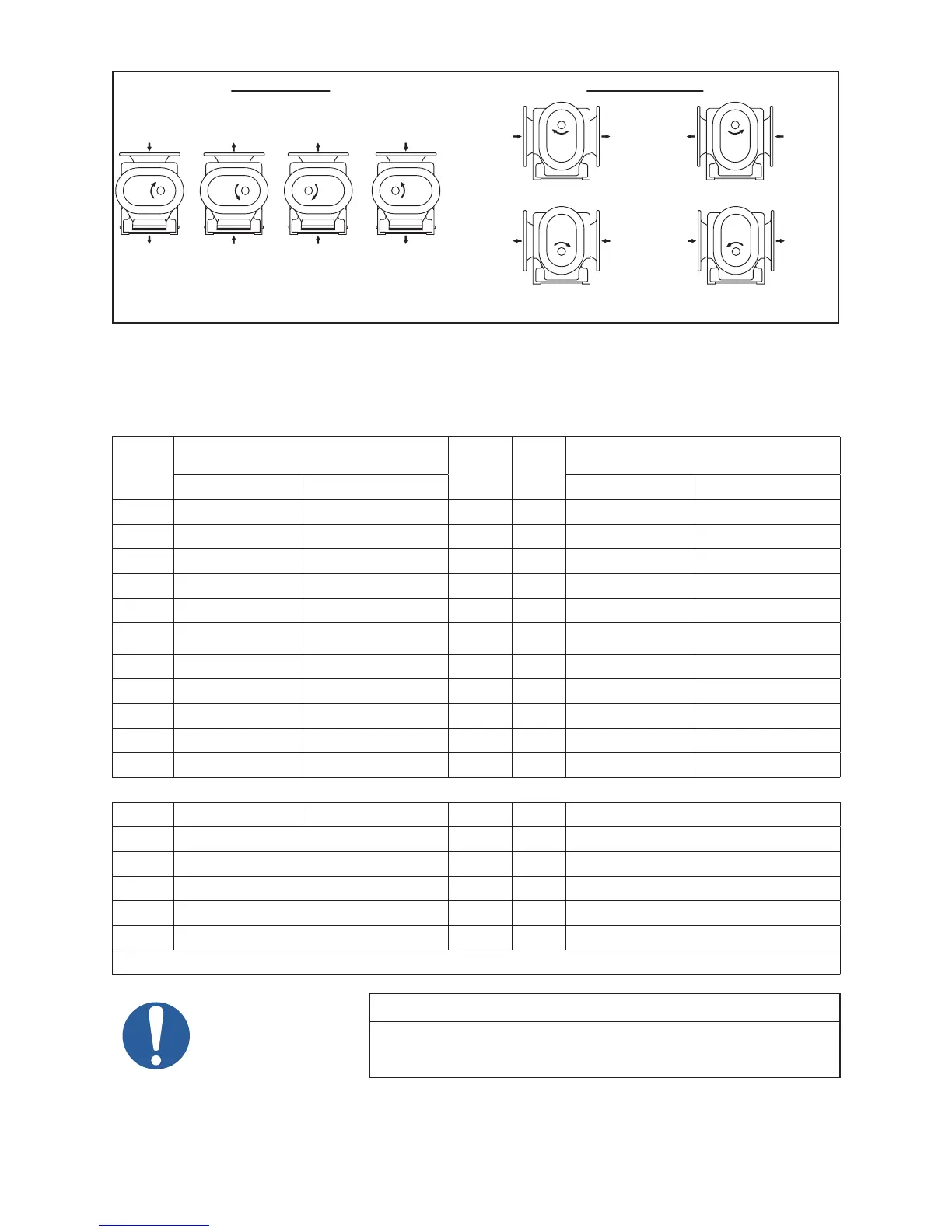

Figure 2 - Flow Direction by Rotation
INTAKE
INTAKE
DISCHARGE INTAKE
DISCHARGE
HORIZONTAL FLOWVERTICAL FLOW
DISCHARGE
INTAKE
DISCHARGE
INTAKE
DISCHARGE
RIGHT DRIVE
CW ROTATION
LEFT DRIVE
CW ROTATION
LEFT DRIVE
CCW ROTATION
RIGHT DRIVE
CCW ROTATION
TOP DRIVE
CW ROTATION
TOP DRIVE
CCW ROTATION
BOTTOM DRIVE
CW ROTATION
BOTTOM DRIVE
CCW ROTATION
DISCHARGEINTAKE INTAKE
INTAKEDISCHARGE DISCHARGE
4.1 SPECIFICATIONS
TABLE 1 — SPECIFICATIONS (SUMP OIL LUBRICATION)
MODEL
APPROXIMATE OIL CAPACITY
QUARTS / LITERS
PORT
SIZE
IN / MM
MAX
RPM
APPROXIMATE WEIGHT
LBS. / KG
90 / 92 91 / 93 90 / 92 91 / 93
3204 1 / 0.95 0.5 / 0.47 2 / 50 3600 145 / 66 130 / 59
3206 1 / 0.95 0.5 / 0.47 3 / 80 3600 160 / 73 145 / 66
3210 1 / 0.95 0.5 / 0.47 4 / 100 3600 195 / 88 180 / 82
4009 1.5 / 1.42 1 / 0.95 4 / 100 3600 260 / 188 240 / 109
4012 1.5 / 1.42 1 / 0.95 4 / 100 3600 300 / 136 280 / 127
5507 4 / 3.79 2.5 / 2.37
6 / 150*
3 / 80**
3600 450 / 204 430 / 195
5509 4 / 3.79 2.5 / 2.37 6 / 150 3600 480 / 218 465 / 210
5511 4 / 3.79 2.5 / 2.37 5 / 127 3600 560 / 254 490 / 222
5514 4 / 3.79 2.5 / 2.37 6 / 150 3600 580 / 263 540 / 245
5518 4 / 3.79 2.5 / 2.37 8 / 200 3600 685 / 310 645 / 293
5524 4 / 3.79 2.5 / 2.37 10 / 250 3600 790 / 358 750 / 340
90 91
90 / 91
7010 8 / 7.57 6 / 150 3600 1050 / 476
7013 8 / 7.57 8 / 200 3600 1150 / 522
7017 8 / 7.57 10 / 250 3600 1275 / 578
7021 8 / 7.57 12 / 300 3600 1450 / 658
7026 8 / 7.57 12 / 300 3600 1600 / 726
* TOP PORT ** BOTTOM PORT
NOTE
Maximum discharge temperature is 374° F (190° C).
