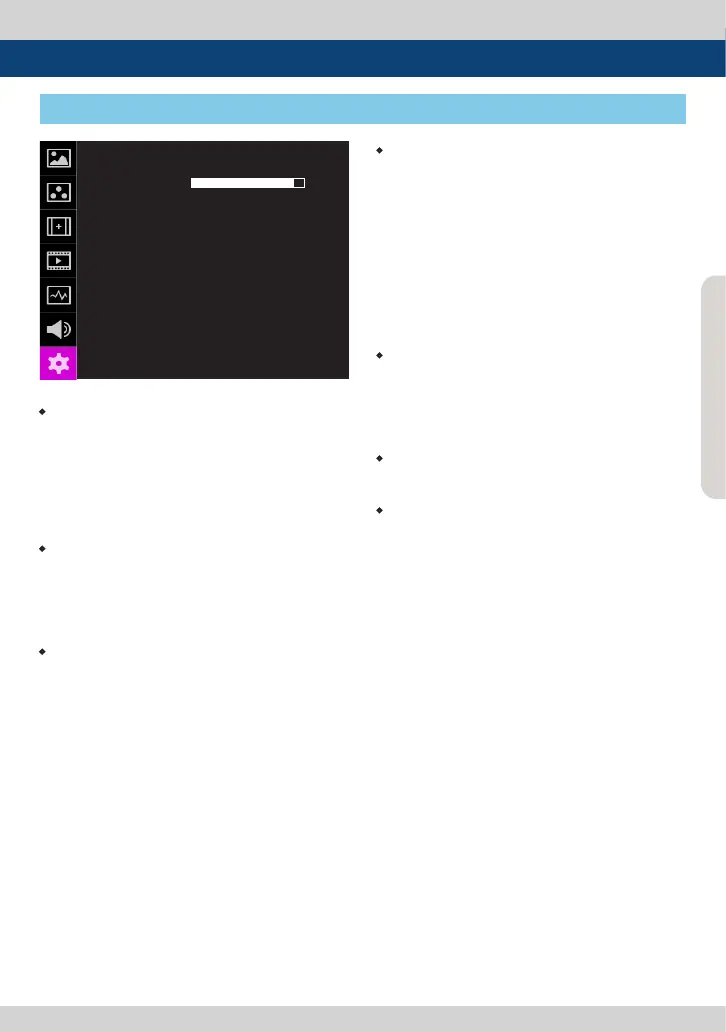

TVLogic F-5A User Manual

FHD Viewnder Monitor 25
• DEFAULT
- Used to initialize OSD values to factory default.
- Available modes are DEFALUT and FACTORY.
- In the DEFALUT mode, except for the stored
3D LUT, all values are initialized.
- In the FACTORY mode, all values are
initialized to factory default.
• LUMINANCE
- Used to indicate the current Luminance value .
- In the case of System Default, the value returns
to factory default(after color calibration).
- Available values are from 0 to 50.
• INTERNAL PAT
- Generates ColorBar, Pludge and Grayscale
Pattern internally.
- Selectable range for Gray Pattern is from 0% to
100% with 5% increment.
* See section “7. Other Function -> [12] Internal
Pattern” for more information.
• DISPLAY ENABLE
- Used to set the LUMINANCE to the
minimum value when the time set in the still
image output is exceeded.
- When video is output or the MENU button is
pressed, the LUMINANCE is reset to the
original value.
- Settable options are ON, 5MIN, 10MIN, 20MIN
and 30MIN.
- In the Function Key, the screen can be turned
ON/OFF immediately by user’s choice.
• S/W UPGRADE
- Used to upgrade the rmware using USB
(Thumb drive).
* See section “7. Other Functions -> [13]
Firmware Upgrade” for more information.
• VERSION
- Displays current rmware version.
• SERIAL NUM
- Displays the serial number of the monitor.
[7] SYSTEM
5. Menu Operations
SYSTEM F-5A
DEFAULT
LUMINANCE
INTERNAL PAT
SW UPGRADE
VERSION
SERIAL NUM
OFF
OFF
OFF
SW 00 FPGA 00 BOARD 00
12345678
+ 48
