TVLogic F-7H mk2 User Manual

FHD High Bright Field Monitor 19
• FOCUS ASSIST
- Focus Assist helps the shooters to easily nd
out the exact area in the picture with good
focus, simply by adding colors on the shape
or boundaries of the object in the picture.
- Activates in order of [Mono On]-[Color On]-
[O ]
*
[Color On] : Only the boudary of the area
with good focus is displayed with the
designated color.
*
[Mono On] : The boundary of the area with
good focus is colored with the designated
color, while the rest of the areas(pixels) have
only Y’(Luma) signals to be black & white
image.
*
See section “7. Other Functions [6] Focus
Assist” for more information.
• FOCUS ASSIST COLOR
- Used to select a color for Focus Assist
among red, green and blue.
- This feature is available only when the
Focus Assist mode is activated.
• FOCUS ASSIST LEVEL
- Used to set the edge dierence value
between the edges in an image.
- Available values are from 0 to 100. Larger
the value the more sophisticated the detail
detection.
- Designated color is displayed when the
dierence of the edges exceeds the
previously set value.
- This feature is available only when the
FOCUS ASSIST mode is activated.
• DSLR
- Select the DSLR camera to be used with the
monitor. Available mode is [CANON 7D].
* DSLR cameras’ screen size and aspect ratio
of Live / Record / Playback modes vary
depending to their manufacturer.
• DSLR SCALE
- This is a special function for CANON/NIKON
DSLR cameras.
- Used to scale the image with dierent
resolution as to the operation mode(Live
View/Record/ PlayBack) of the camera to
fullll the screen.
*
See section “7. Other Functions [8] DSLR
SCALE” for more information.
• TIMECODE
- Used to set the Time Code.
- Available modes are [O], [VITC], and [LTC].

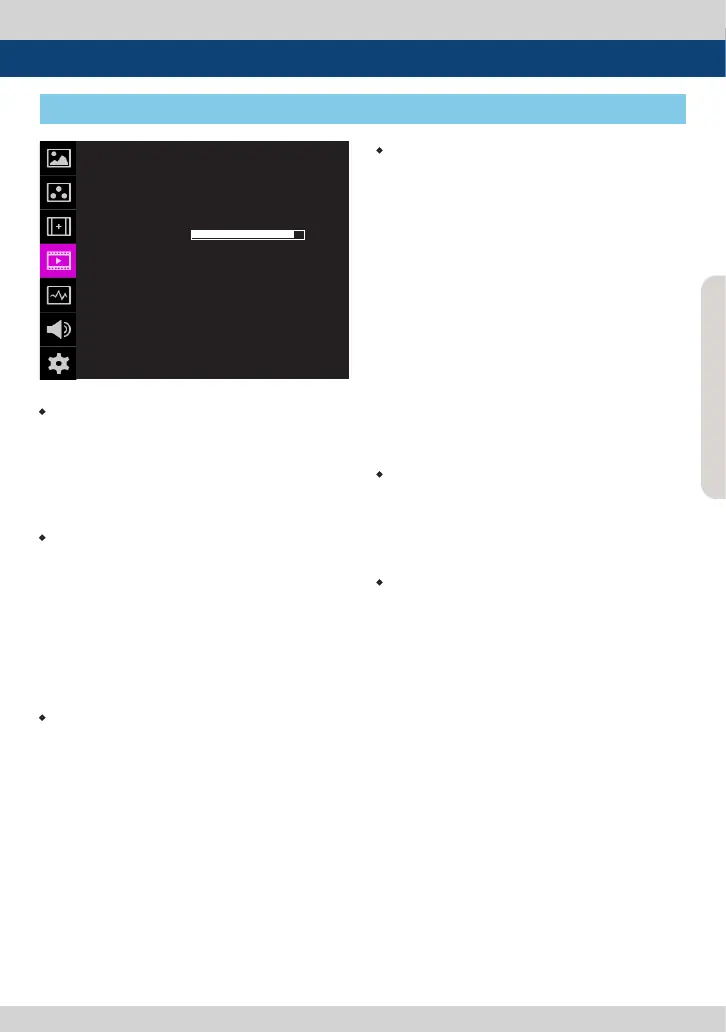

[4] VIDEO
5. Menu Operations
VIDEO이 F-7H mk2
DSLR
DSLR SCALE
TIMECODE
FOCUS ASSIST
FOCUS AS COLOR
FOCUS AS LEVEL
SCR TALLY
SCR OP LEVEL
SCR TALLY COL
LOW BAT DIS
CANON 7D
LIVE VIEW
OFF
OFF
RED
OFF
LOW
RED
OFF
+ 90
PAGE (2/2)
