TVLogic F-7H mk2 User Manual

FHD High Bright Field Monitor 21
[5] WAVEFORM
5. Menu Operations
• ENABLE
- Used to activate/ deactivate the Waveform
which is selected in the Waveform/Vector
Type menu.
• TYPE
- This function sets the Waveform and
Vectorscope. Available options are dierent
according to the Input signal.
- Activates in the order: YCbCr: O - Waveform
- VectorScope - Waveform Wide - Waveform
YCbCr - RGB(Conv.)-Wave_Vector - Vector_
YCbCr - Full Waveform(Y) - Full VectorScope.
• INTENSITY
- Used to set the brightness level of the
Waveform/ Vectorscope display from 1 to 63.
- The higher the number the brighter the
waveform will be.
• TRANS
- Used to select the transparency option of
the Waveform/ Vectorscope between
Opaque and Blend.
- Even if the option is set to [Opaque], it will
automatically turn to [Blend] when the main
OSD overlaps the waveform/vectorscope.
And turns back to [Opaque] when the main
OSD disappears.
• SIZE
- Adjust the size of the Waveform or
Vectorscope.
- Can select among [NORMAL] and [LARGE].
* See section “7. Other Function [2] Waveform/
Vectorscope” for more information.
• LINE WAVEFORM
- This item is utilized to display the entire data
or one line data on the Waveform.
• SEL LIN POS
- Used to select specic Vertical Line for
Waveform/Vectorscope.
- This is available when LINE Waveform is
activated.
- Use the Knob to select a desired vertical line.
- Control range varies according to the
resolution of the input SDI signal.
* PAL : Min. 1, Max. 625
* NTSC : Min. 1, Max. 525
* 720p : Min. 1, Max. 750
* 1080i : Min. 1, Max. 1125
* 1080p : Min. 1, Max. 1125

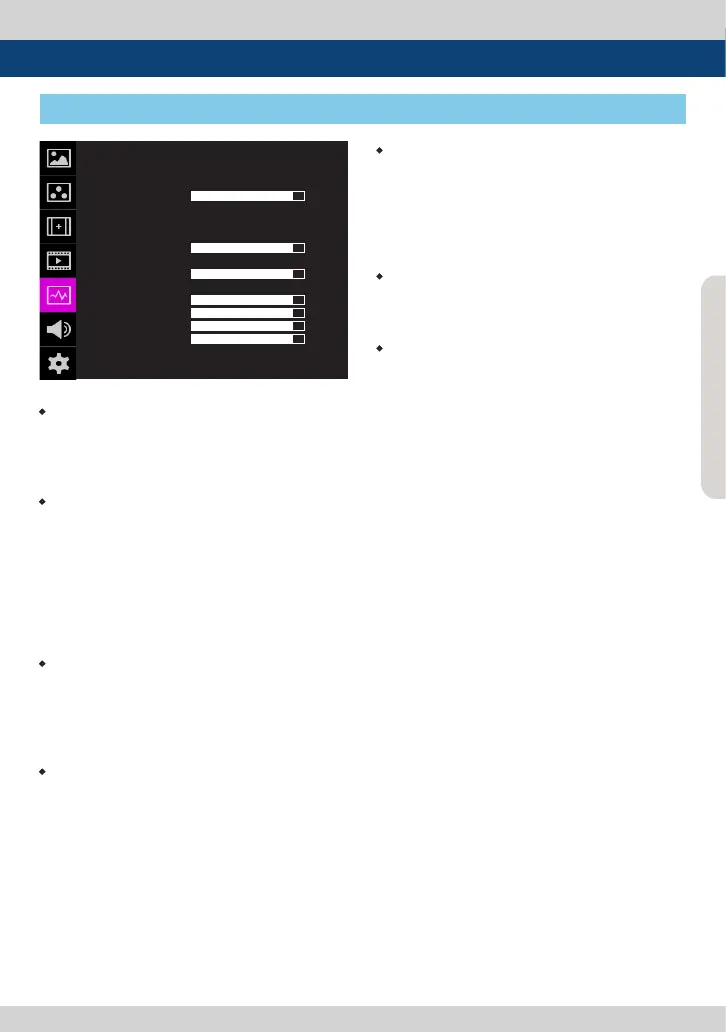

WAVEFORM F-7H mk2
ENABLE
TYPE
INTENSITY
TRANS
SIZE
LINE WAVEOFORM
SEL LINE POS
LUMA CHECK
LUMA ADJUST
RANGE ERROR
Y MAX
Y MIN
C MAX
C MIN
Y PICTURE BLINK
C PICTURE BLINK
OFF
OFF
OPAQUE
SAMLL
OFF
OFF
OFF
OFF
OFF
+ 90
+ 90
+ 90
+ 90
+ 90
+ 90
+ 90
