• DEFAULT
- Used to initialize OSD values to factory
default.
- Available modes are DEFALUT and FACTORY.
- In the DEFALUT mode, except for the stored
3D LUT, all values are initialized.
- In the FACTORY mode, all values are
initialized to factory default.
• LUMINANCE
- Used to indicate the current Luminance
value .
- In the case of System Default, the value
returns to factory default(after color
calibration).
- Available values are from 0 to 50.
• INTERNAL PAT
- Generates ColorBar, Pludge and Grayscale
Pattern internally.
- Selectable range for Gray Pattern is from 0%
to 100% with 5% increment.
* See section “7. Other Function -> [12]
Internal Pattern” for more information.
• ECO SAVING
- Used to save power consumption
automatically when there is no monitor
signal.
- When the signal is supplied, the brightness
of the monitor will be changed to the set
value.
• DISPLAY ENABLE
- Used to set the LUMINANCE to the
minimum value when the time set in the still
image output is exceeded.
- When video is output or the MENU button is
pressed, the LUMINANCE is reset to the
original value.
- Settable options are ON, 5MIN, 10MIN, 20MIN
and 30MIN.
- In the Function Key, the screen can be turned
ON/OFF immediately by user’s choice.
• S/W UPGRADE
- Used to upgrade the rmware using USB
(Thumb drive).
* See section “7. Other Functions -> [13]
Firmware Upgrade” for more information.
• PRESET ENABLE
- Used to activate/ inactivate the PRESET
function.
- When this function is inactivated, the Touch
Key is disabled.
• PRESET SAVE
- Available values are from PRESET 01 to
PRESET 04.
- Used to save the set value in the set PRESET
position.
• PRESET LOAD
- Available values are from PRESET 01 to
PRESET 04.
- Used to load the PRESET value.
• VERSION
- Displays current rmware version.
• SERIAL NUM
- Displays the serial number of the monitor.

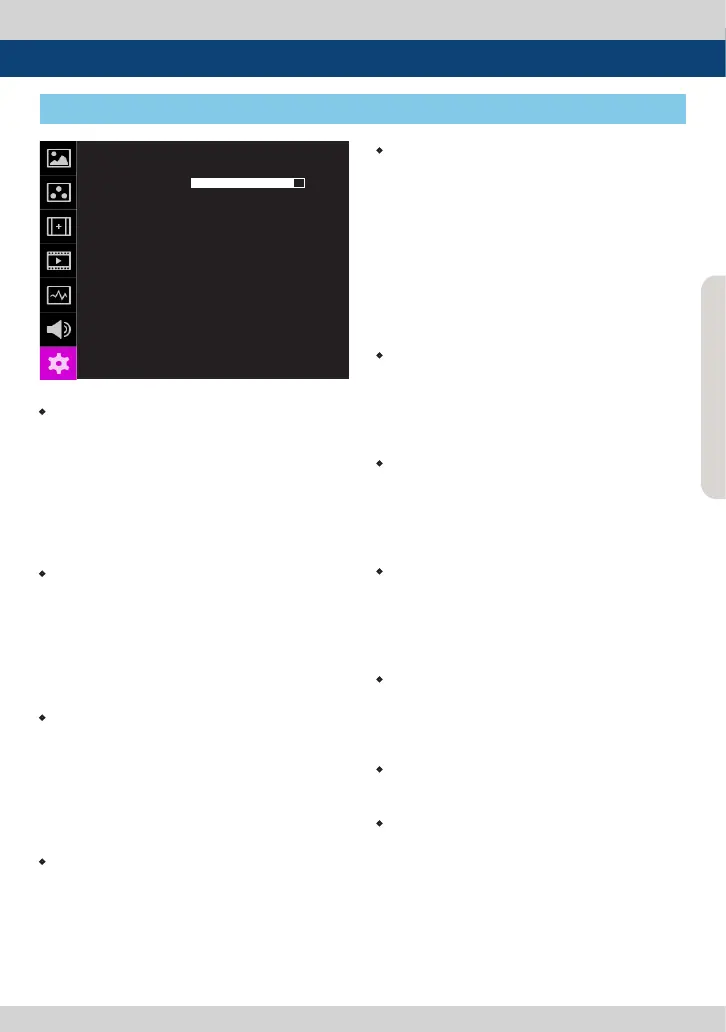

[7] SYSTEM
5. Menu Operations
SYSTEM F-7H mk2
DEFAULT
LUMINANCE
INTERNAL PAT
DISPLAY ENABLE
ECO SAVING
SW UPGRADE
PRESET ENABLE
PRESET SAVE
PRESET LOAD
VERSION
SERIAL NUM
OFF
OFF
OFF
OFF
OFF
ON
OFF
OFF
SW 00 FPGA 00 BOARD 00
12345678
+ 48
