TVLogic F-7H mk2 User Manual

FHD High Bright Field Monitor 23
• Y MAX
- Used to set the maximum Luma(Y’) level
from 0 to 255.
- Pixels with values exceeding the max Y’ level
will blink on the screen, and be displayed in
red on the Waveform.
• Y MIN
- Used to set the minimum Luma(Y’) level
from 0 to 255.
- Pixels with values exceeding the max Y’ level
will blink on the screen, and be displayed in
red on the Waveform.
• C MAX
- Used to set the maximum chroma(C’) level
from 0 to 255.
- Pixels with values exceeding the max Y’ level
will blink on the screen, and be displayed in
red on the Waveform.
• C MIN
- Used to set the minimum chroma(C’) level
from 0 to 255.
- Pixels with values exceeding the max Y’ level
will blink on the screen, and be displayed in
red on the Waveform.

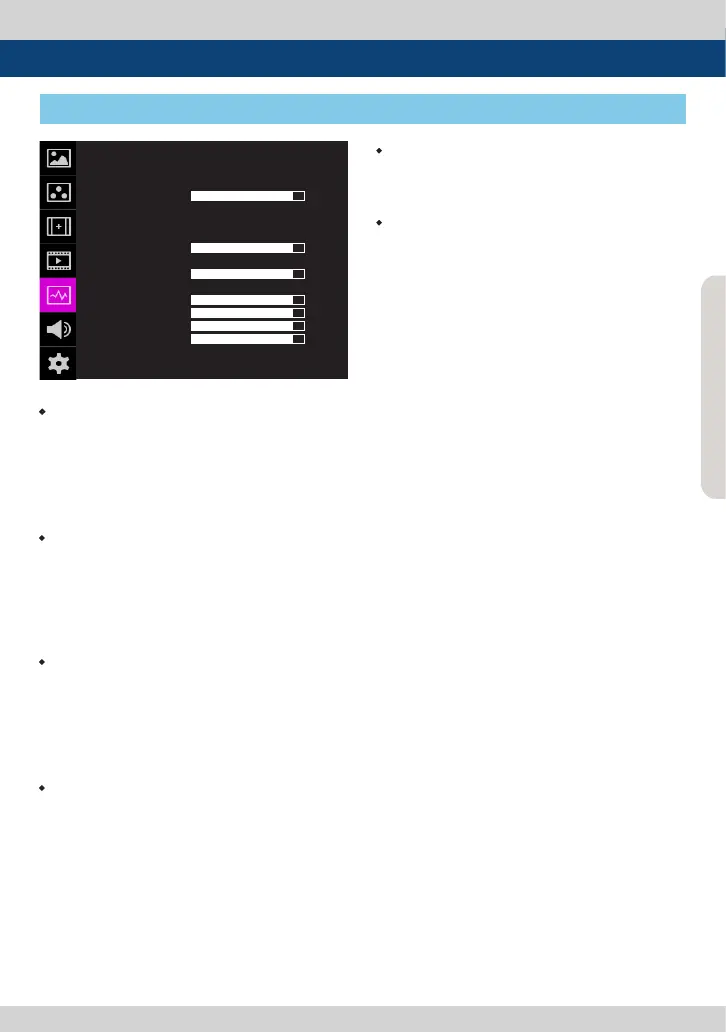

[5] WAVEFORM
5. Menu Operations
• Y PICTURE BLINK
- Used to set whether or not to blink pixels
with values exceeding Y MAX and Y MIN.
• C PICTURE BLINK
- Used to set whether or not to blink pixels
with values exceeding C MAX and C MIN.
WAVEFORM F-7H mk2
ENABLE
TYPE
INTENSITY
TRANS
SIZE
LINE WAVEOFORM
SEL LINE POS
LUMA CHECK
LUMA ADJUST
RANGE ERROR
Y MAX
Y MIN
C MAX
C MIN
Y PICTURE BLINK
C PICTURE BLINK
OFF
OFF
OPAQUE
SAMLL
OFF
OFF
OFF
OFF
OFF
+ 90
+ 90
+ 90
+ 90
+ 90
+ 90
+ 90
