TVLogic LUM-181H User Manual

05 MENU OPERATIONS
31
4K /UHD HDR Emulation LCD Monitor

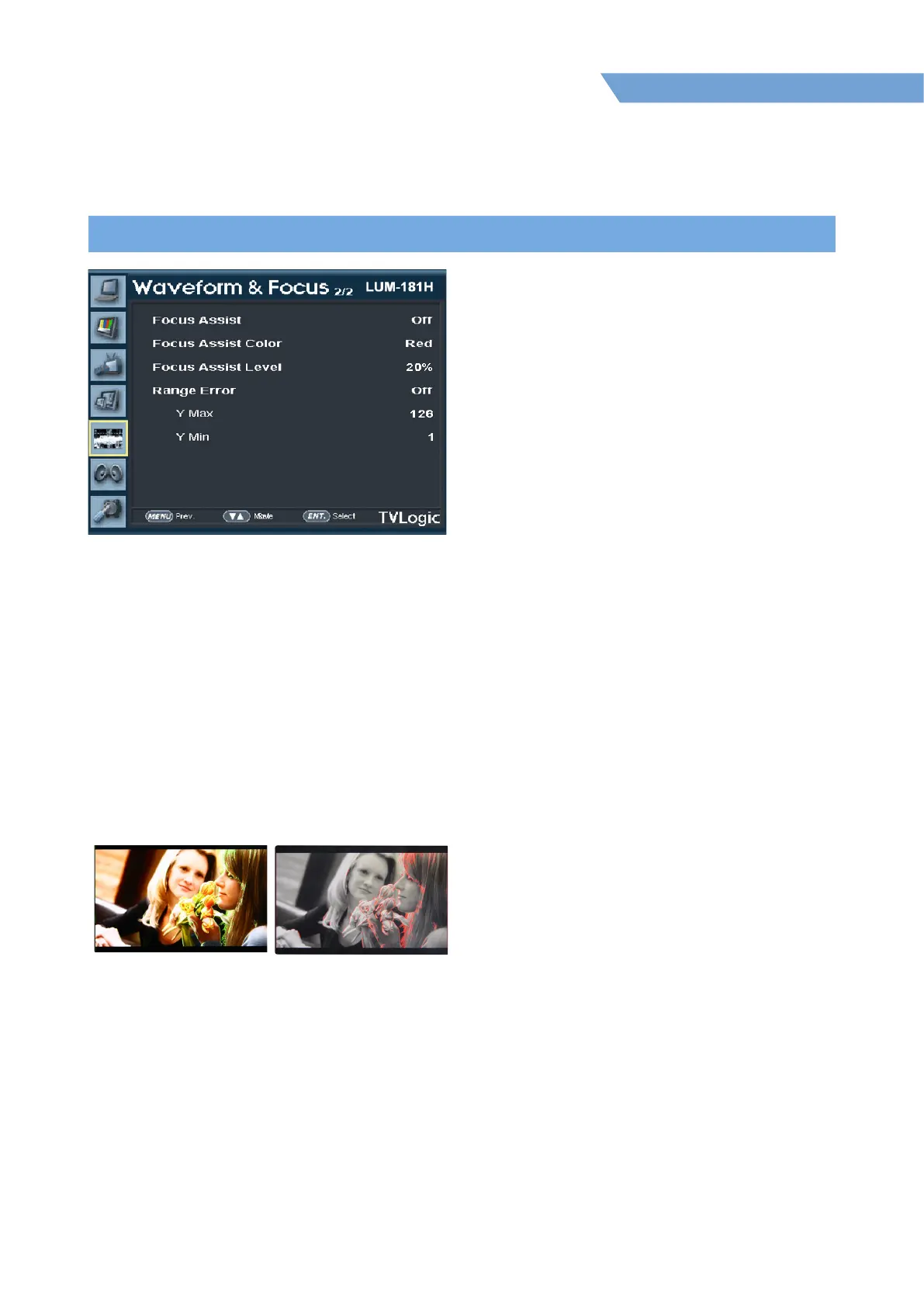

[5] Waveform & Focus
● Focus Assist
- Focus Assist function assigns a color on the
pixels of the shape or boundary of the image,
which helps the user easily see which part of
the image is in focus or out of focus.
- With this function, the user can easily
differentiate the focused area from the out-
focused area especially when shooting with
a shallow depth of field.
- Available types are [Color On] and [Mono On].
* [Color On]: Background image is original color
type.
* [Mono On]: Background image is mono type.
● Focus Assist Color
- Used to select a color for Focus Assist among
[Red], [Green], [Blue], [White].
- This feature is available only when the Focus
Assist mode is acvated.
● Focus Assist Level
- Used to set the edge dierence value
between the edges in an image.
- Available values are from [0] to [100]. Larger
value means more sophiscated detail
detecon.
- Designated color is displayed when the
dierence of the edges exceeds the
previously set value.
- This feature is available only when the Focus
Assist mode is acvated.
● Range Error
- Used to set whether or not to activate
[Y Max] and [Y Min] functions.
- The values of [Y Max] and [Y Min] are
indicated in Waveform.
• Y Max
- Used to set the maximum luma(Y') level.
- Available range is [1] to [126].
• Y Min
- Used to set the minimum luma(Y') level.
- Available range is [1] to [126].
Focus Assist - [Color On]
Focus Assist Color - [Green]
Focus Assist - [Mono On]
Focus Assist Color - [Red]
