TVLogic LVM-071W User Manual

Multi Format LCD Monitor
15

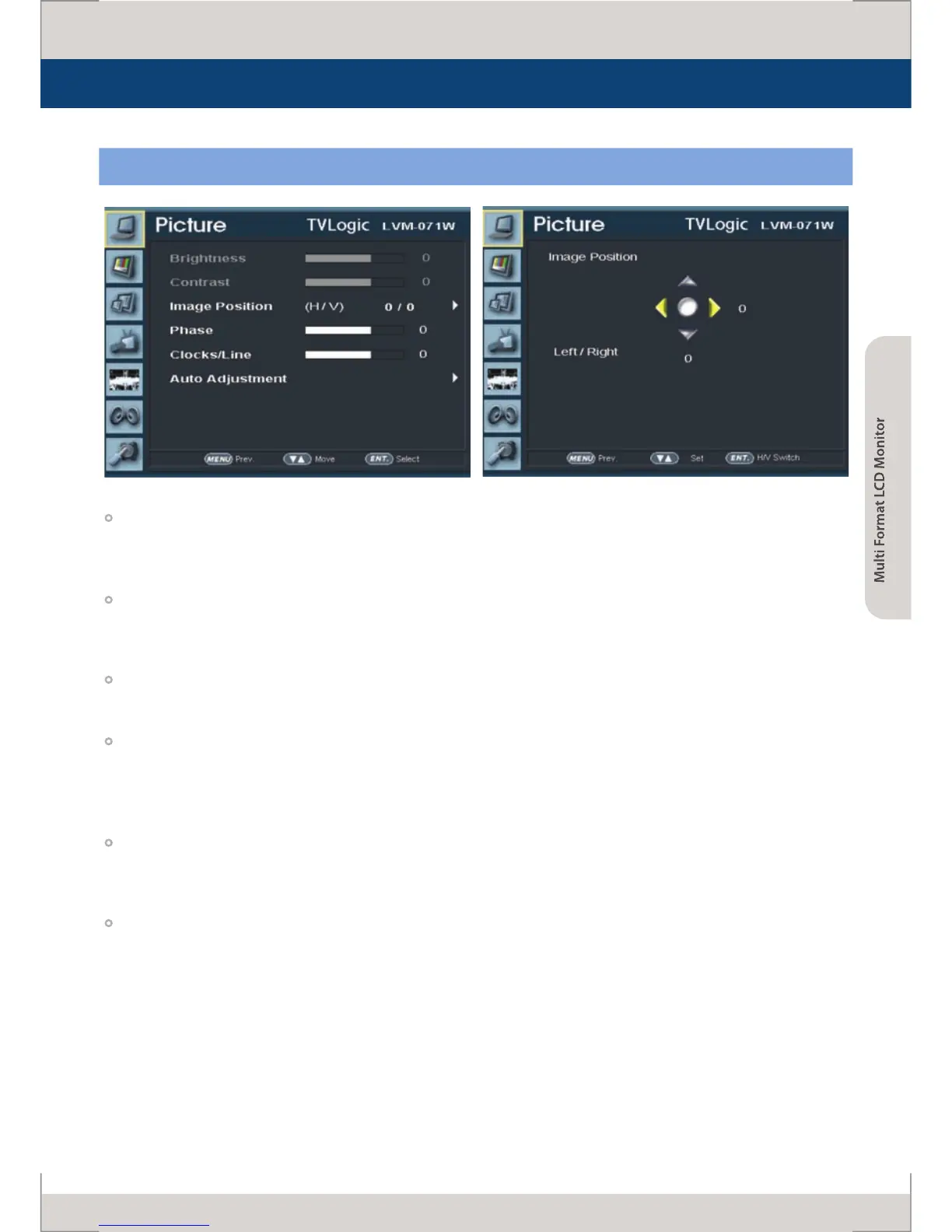

Menu Contents
[2] PICTURE - DVI ANALOG ONLY
BRIGHTNESS
- This item controls the degree of brightness between -25 ~ 25.
# Brightness can be adjusted by using the [BRIGHT] control knob.
CONTRAST
- This item controls the contrast ration between -25 ~ 25.
# Contrast can be adjusted by using the [CONTRAST] control knob.
IMAGE POSITION
- This item controls the position(H/V) of the image.
PHASE
- This item controls phase value.
# If phase is not set to correct value, image may display artifacts and out of focus.
CLOCKS/LINE
- This item is adjust timing for signal sync.
# If signal sync is not set to correct value, image may display ickering and drop.
AUTO ADJUSTMENT
- This item adjusts the input signal automatically. Phase, Clocks/Line, and Image Position are also
adjusted.
# if image doesn’t display correctly after the Auto Adjustment, select it again for correct adjustment.
Auto Adjustment activates automatically when input signal resolution changes.
