TVLogic LVM-071W User Manual

Multi Format LCD Monitor
14
Menu Contents

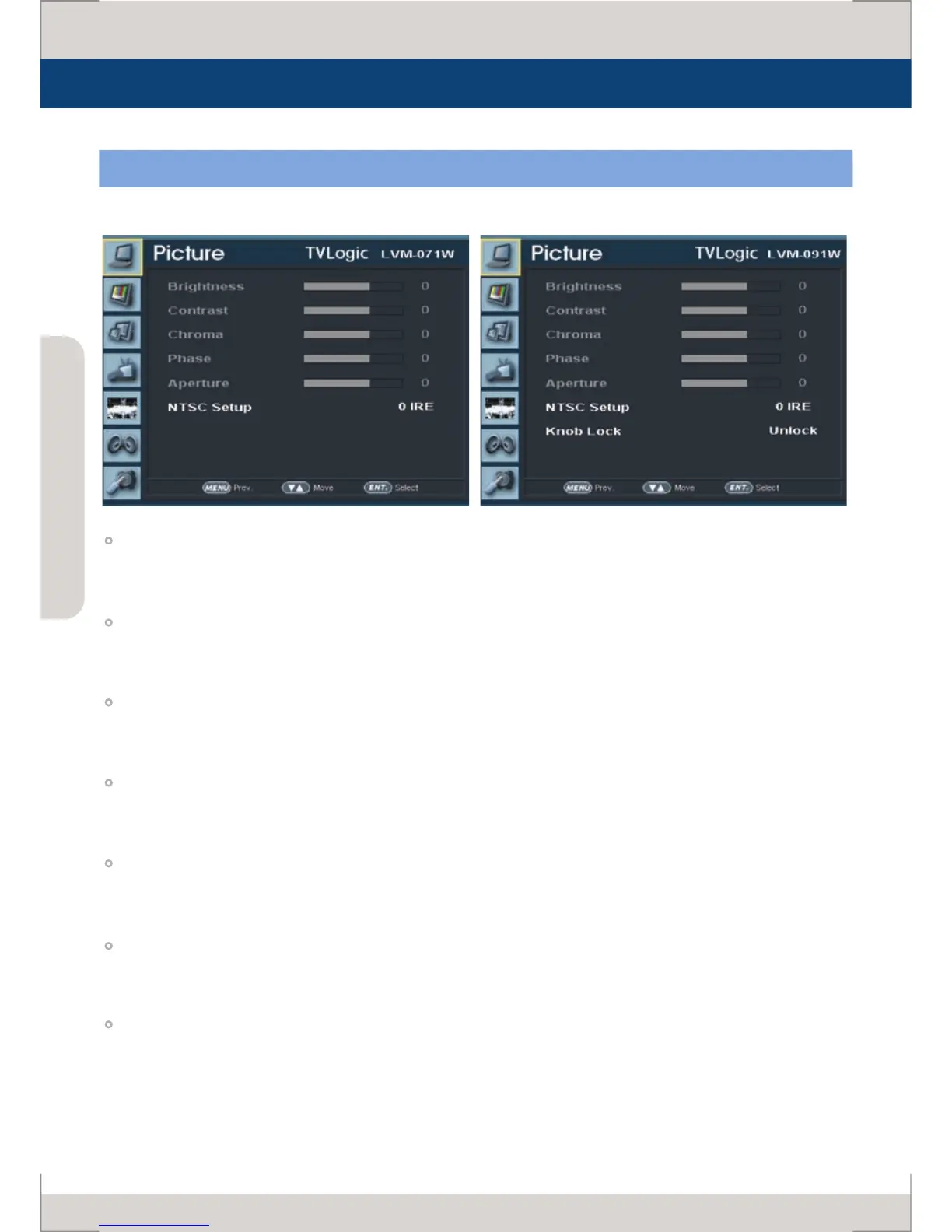

[1] PICTURE
Below are descriptions for each function of the menu.
BRIGHTNESS
- This item indicates brightness value between -25 ~ 25 (LVM-071W), -128 ~ 127 (LVM-091W).
# Brightness can be adjusted by using the [BRIGHT] control knob on the front of the monitor.
CONTRAST
- This item indicates contrast ratio value between -25 ~ 25 (LVM-071W), -128 ~ 127 (LVM-091W).
#Contrast can be adjusted by using the [CONTRAST] control knob on the front of the monitor.
CHROMA
- This item indicates saturation value between -25 ~ 25 (LVM-071W), -128 ~ 127 (LVM-091W).
# Chroma can be adjusted by using the [CHROMA] control knob on the front of the monitor.
PHASE
- This item indicates phase value between -25 ~ 25 (LVM-071W), -128 ~ 127 (LVM-091W).
#Phase can be adjusted by using the [PHASE] and [UP]/[DOWN] button.
APERTURE
- This item indicates sharpness value between -12 ~ 12.
#Aperture can be adjusted by using the [APERTURE] control knob on the front of the monitor.
NTSC Setup
- This item sets the IRE value under NTSC mode between 0 IRE and 7.5 IRE.
- Only available in COMPOSITE 1/2/3 and S-VIDEO modes containing a NTSC signal.
KNOB
Lock (LVM-091W )
- This item locks the control knobs(APERTURE, BRIGHT, CHROMA, CONTRAST, VOLUME) on the front
of the monitor.
