REAR WHEEL REMOVAL

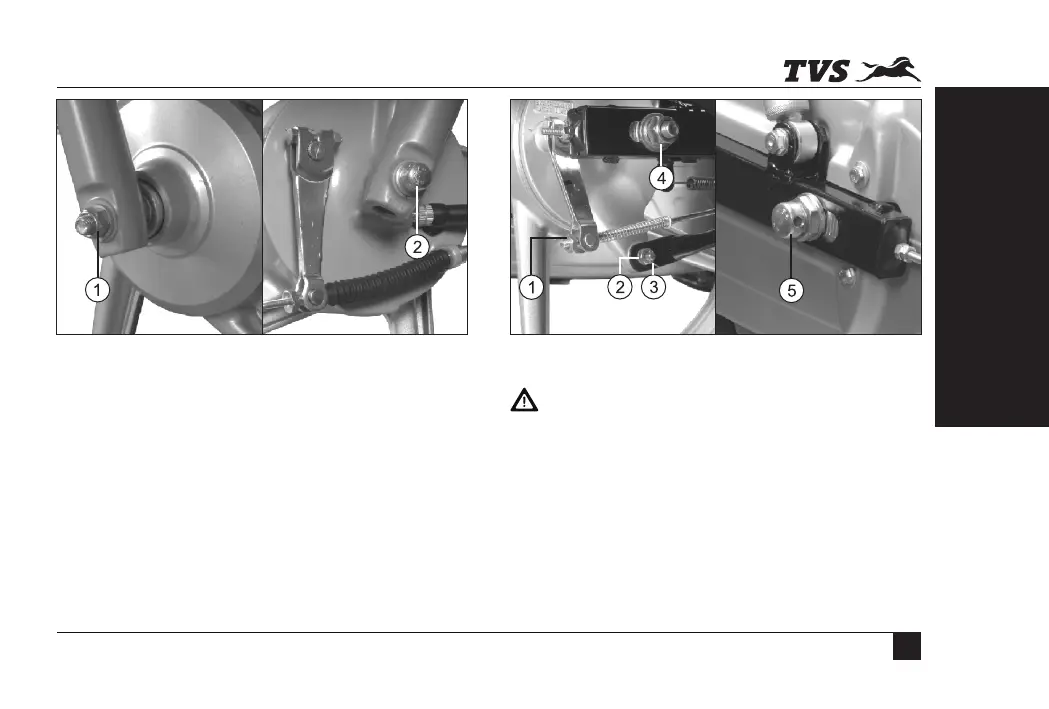

1. Remove the rear brake adjuster (1) and disconnect the
brake rod.
2. Remove the split pin (2) and the nut (3) from torque link
mounting with the brake panel and disconnect the
torque link.
3. Remove the axle nut (4). Pull out the axle (5).
4. Tilt the vehicle to the left and take out the wheel
assembly along with the brake panel assembly.
5. For locating and reassembling the rear wheel easily,
engage gear. This will arrest the free movement of the
drum sprocket.
6. Reverse the procedure for reassembly.
Always make sure that whenever the wheel is removed,
axle nut is properly retightened to the specified torque and
chain slackness is adjusted to the specified limit.
Once the split pins are removed, replace them with new
ones.
