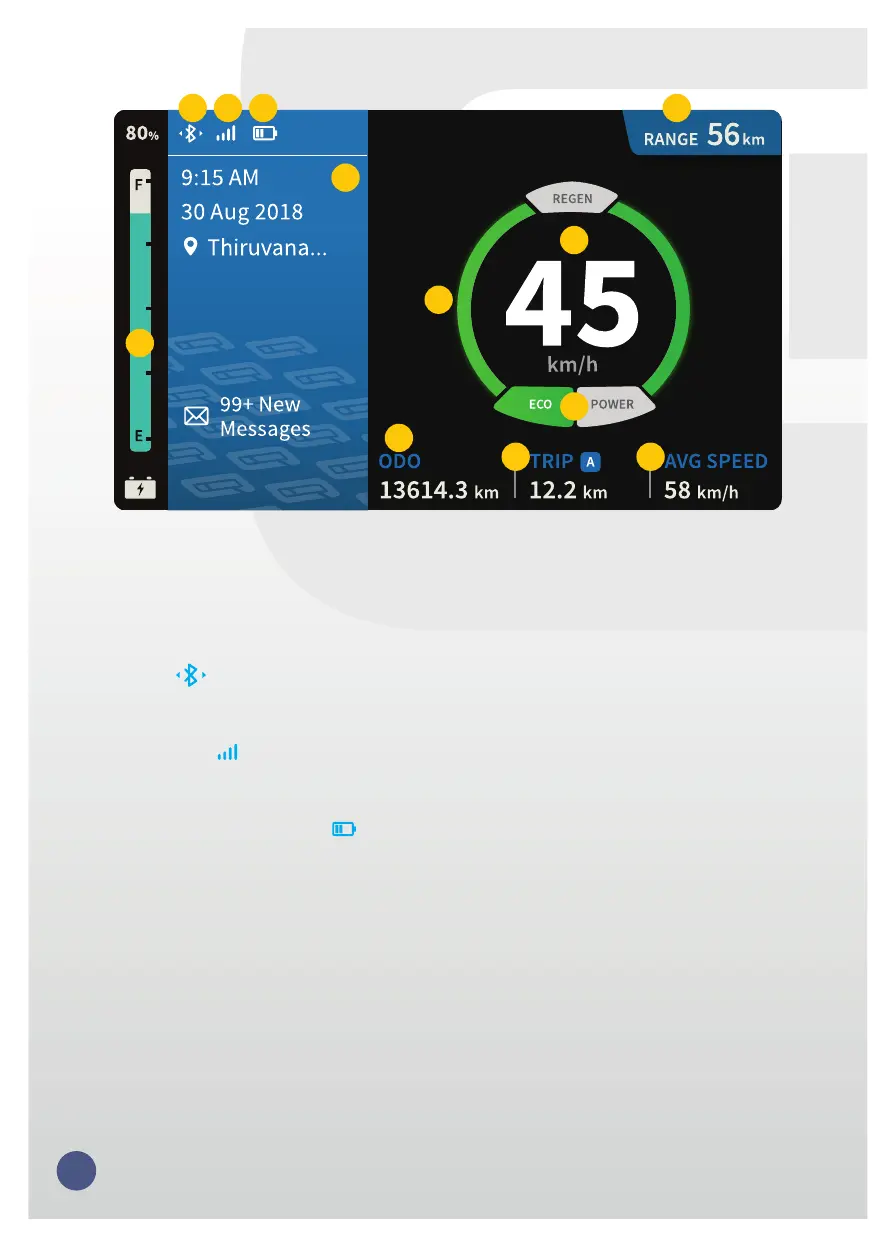

1. Battery level indicator (SOC) -
Indicates battery charge in percentage as
well as bars;
Full SOC – F Ÿ
Low SOC – E (Blinking)Ÿ
2. Bluetooth ‘ ’ -
Indicates vehicle is connected with rider’s
mobile via mobile app.
3. Network signal ‘ ’ -
Indicates mobile signal once connected
with vehicle via bluetooth.
4. Mobile battery level indicator ‘ ’ -
Indicates rider’s mobile battery level once
connected with vehicle via bluetooth.
5. Range -
Shows distance to empty, indicates how
more distance the vehicle can go with
current level of battery charge.
6. Speedometer -
Indicates vehicle current speed.
7. Mode Display -
Indicates whether the vehicle in economy
or power mode.
8. Average Speed -
It indicates average speed in Kmph.
9. Trip A / Trip B -
This instrument cluster comes with two trip
options Trip A & Trip B to measure to & fro
distance between two locations as per the
customer requirement. The distance can
only be reset using mobile app.
10. Odometer -
Shows maximum distance covered by
vehicle till now.
11. Power flow indication -
Indicates following two condition of
vehicle;
a. Driving condition:
Vehicle is driven by motor by consuming
power from the battery.
b. Regeneration condition:
I ndicates regeneration o f power is
happening.
12. Notification display -
Shows current time, date & location.
