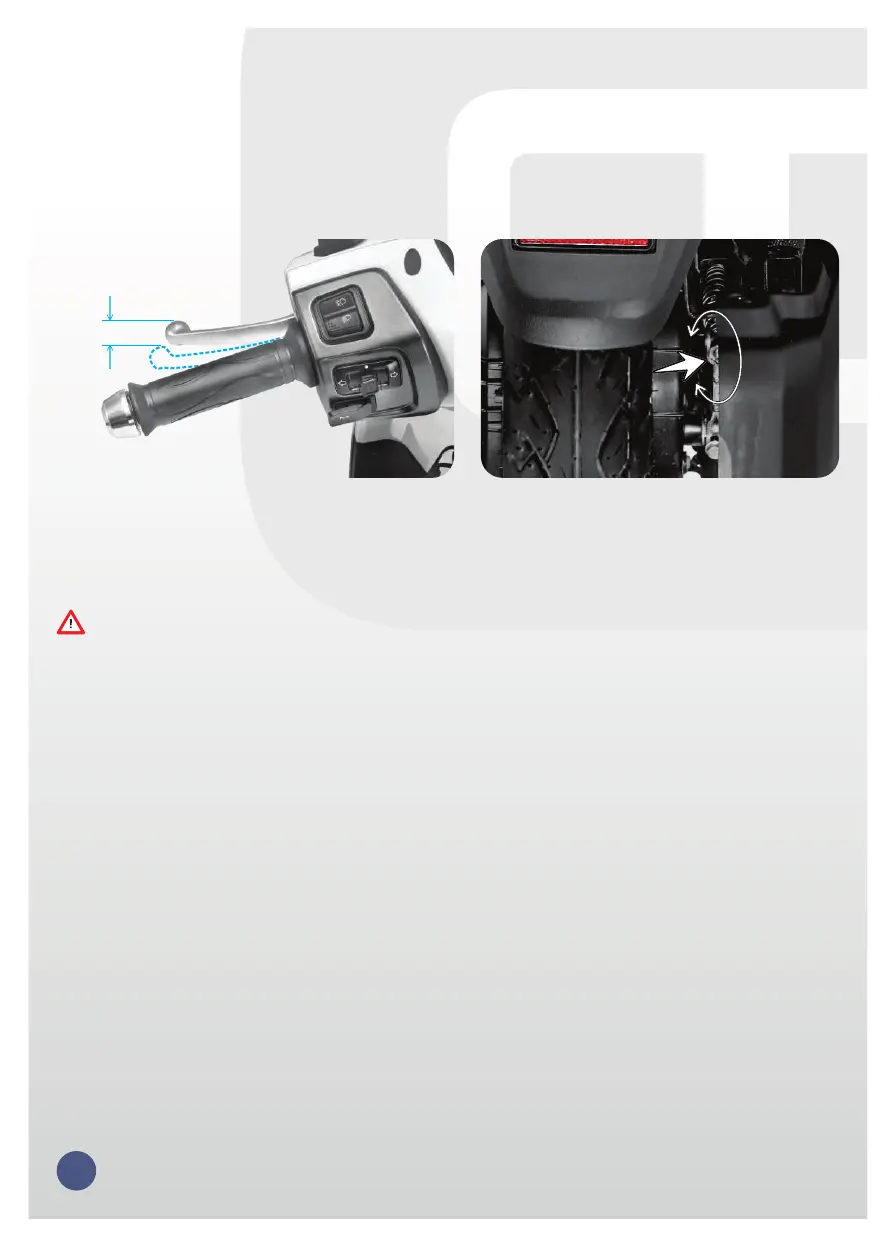

1. Measure the free play of the rear brake lever at the lever end as shown in the figure.
2. Free play of brake lever before the engagement of brake should be between 10 -15 mm.
3. If the measured distance is more than the limit, adjust the nut provided at the rear wheel end to
obtain the correct play.
REAR BRAKE (DRUM BRAKE) - SELF MAINTENANCE
22
10 - 15 mm
4. Turn the adjuster nut in clockwise direction for reducing free play or in anti-clockwise direction
for increasing the free play.
Replace the brake shoes as a set, if the wear limit indicator shows beyond the wear limit even
after indexing the lever.
Caution
