54
Incase the wear limit index mark (1) is going beyond
wear limit indicator (2), index the lever to next slot
with the help of the Dealer to extend the shoe life.
Replace the brake shoes as a set, if the wear limit
indicator shows beyond the wear limit even after
indexing the lever.
Rear brake

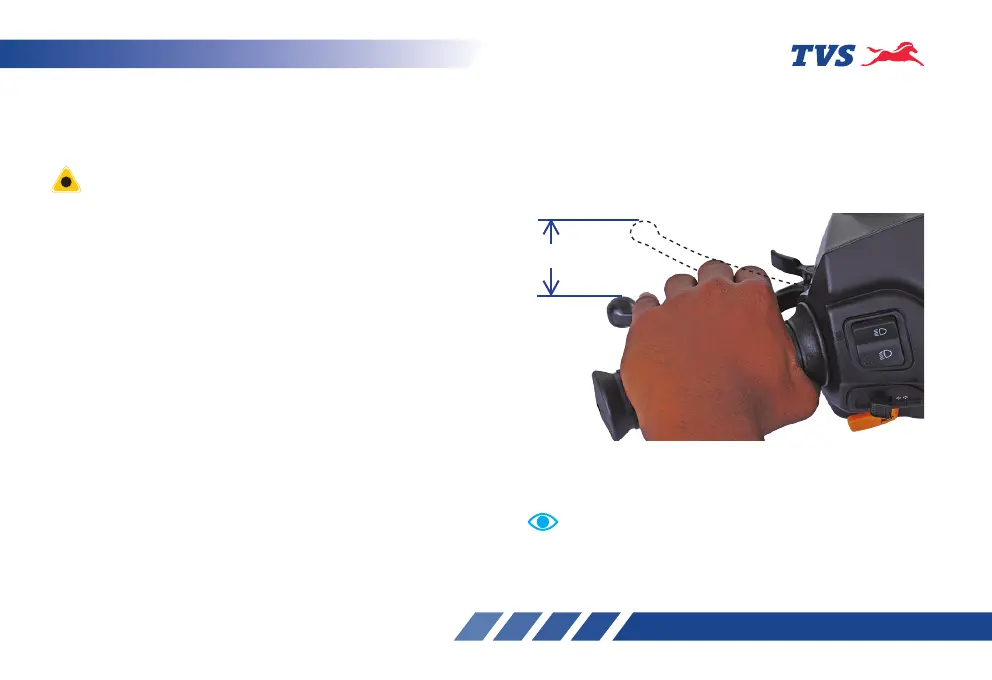

1. Measure the free play of the rear brake lever at
the lever end as shown in the figure.
2. Free play of the brake lever before the engagement
of brake should be between 10 ~ 15 mm.
Please remember that the rear brake lever free play
adjustment to be done only after adjusting the front
brake lever play.
10 ~ 15 mm
