TVS LP 46 PLUS - Calibrating Media Sensor by Diagnostic Tool; 5.3.1 Auto Calibration

33

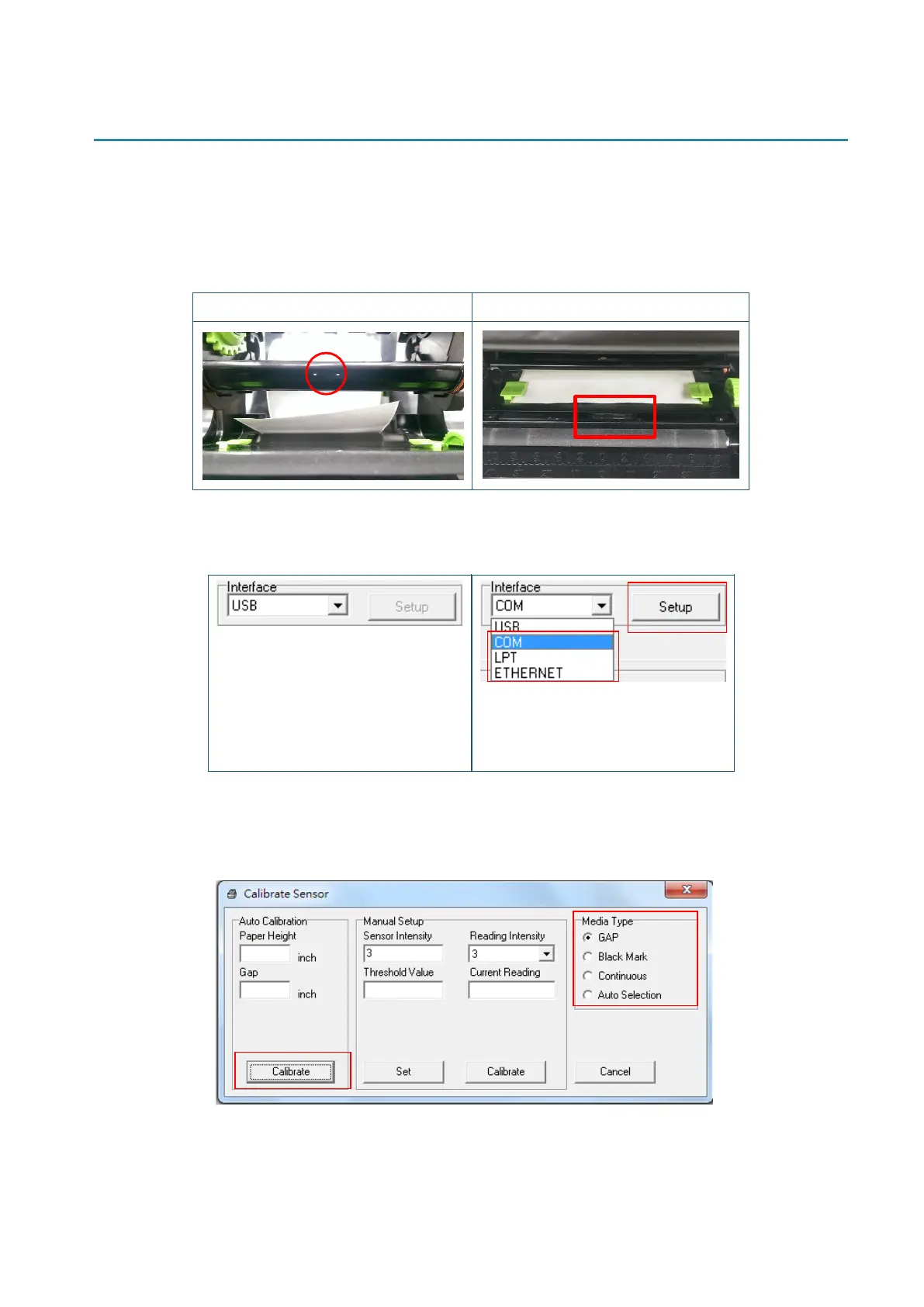

5.3 Calibrating Media Sensor by Diagnostic Tool
5.3.1 Auto Calibration
1. Make sure the media is already installed and print head mechanism is closed. (Please refer
to section 3.3.)
Gap sensor
Black mark sensor
2. Turn on the printer power switch.
3. Open Diagnostic tool and set interface. (The default setting is USB.)
4. Click the “Calibrate Sensor” button.
5. Select the media type and click the “Calibrate” button.
The default interface setting is
USB interface. If USB interface
is connected with printer, no
other settings need to be
changed in the interface field.
1
2
2
1
