KNOW YOUR TVS Stryker 125
KNOW YOUR TVS Stryker 125
22
For removing :

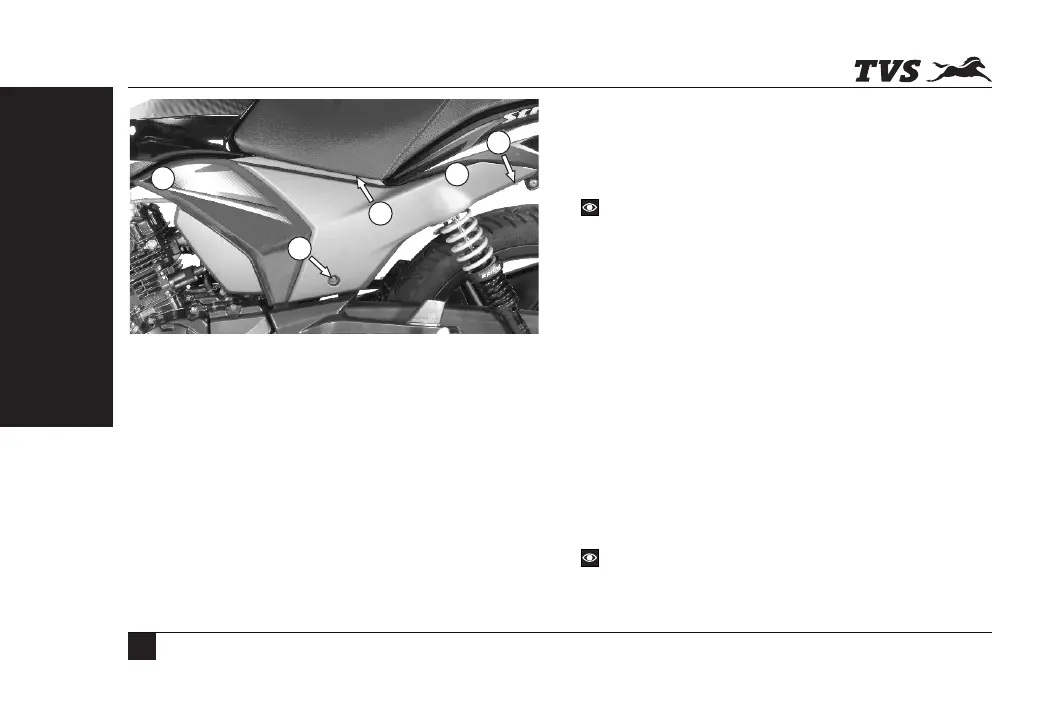

1. Open the seat as explained earlier. Remove the mounting
screws (1, 2 & 3) of cover frame.
2. Gently pull out the front end(A) of the cover frame from
the fuel tank cushion and gently pull out the rear end (B) of
the cover frame from the cover seat tail.
3. Carefully dislocate the cover frame lugs from the cover
seat tail and take out the cover frame.
For reassembling:
1. Locate the lugs provided at the rear end of the cover
frame to the location provided of the cover seat tail.
2. Locate the cover frame lug(B) into the cover seat tail hole
NOTE
NOTE
It is recommended to use the tool kit in case of any emergency only.
It is always advisable to take your vehicle to TVS Motor Company
Authorised Distributor or Dealer / Authorised Service Centers.
While re-fixing the cover frame, ensure the availability of rubber
cushion in the fuel tank hole.
2
A
1
3
B
and locate the cover frame lug(A) into the fuel tank hole and
gently press the cover.
2. Assemble three screws (1,2&3) and tighten them while
ensuring proper seating of cover.
TOOL KIT
To assist you in performing certain aspects of periodic
maintenance and emergency repairs, a tool kit is supplied
along with the vehicle.
Tool kit is placed below the cover frame L. Remove the cover
frame L as explained earlier to access tool kit.
Tool kit consists of one number each of the following:
1. 16 mm box spanner
2. Screw driver handle
3. Combination screw driver bit
4. 14x17 mm open end spanner
5. 10x12 mm open end spanner
6. Tool bag
