MAINTENANCE
MAINTENANCE
40
A

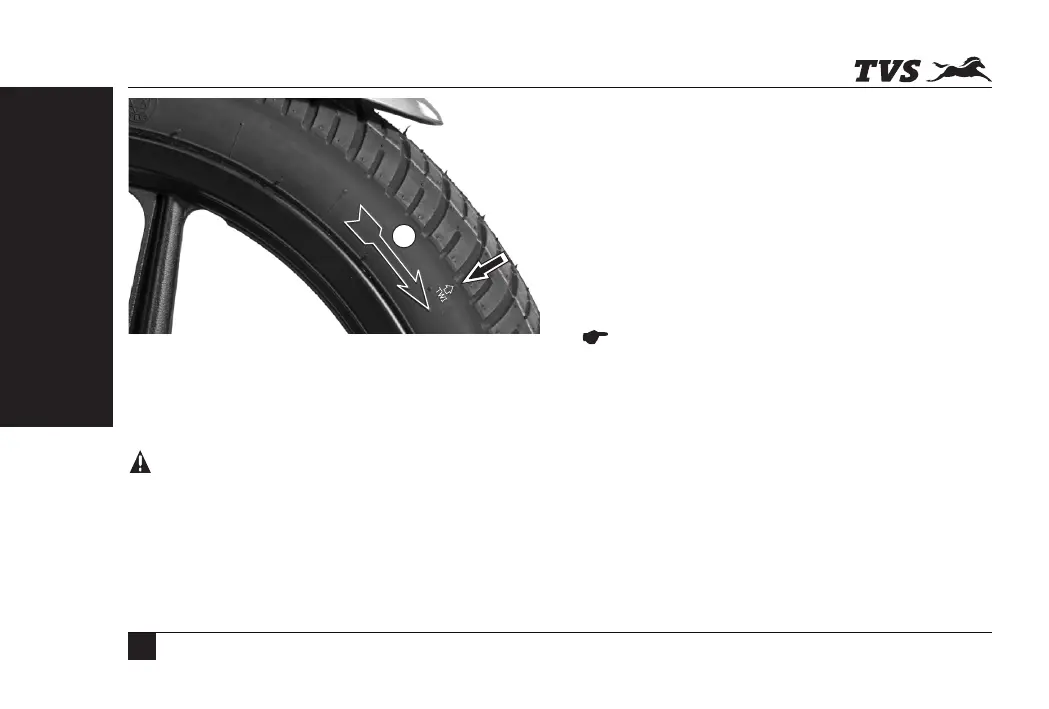

Tyre rotation direction
While reassembling the tyre, after removing from the wheel
rim, ensure that the arrow mark (A) on the tyre facing the
direction of wheel rotation.
WARNING
Tyre inflation pressure in cold condition and the tyre tread condition
are extremely important for the performance and safety of the rider.
Check the tyres frequently for inflation pressure as well as the wear
pattern on it. Use of a tyre other than the standard may cause
instability.
on both the wheel. Incase of any puncture / tyre damage, it
is advised to visit the nearest tyre manufacturer Dealer or
the tyre shops who knows the repairing method of tubeless
tyre. It is not necessary to remove the tyre from wheel rim
always to attend a puncture.
Even though, if there is need of tyre removal, it is strongly
recommended to use a tyre removal / fitment machine. If at
all, the tyre levers needs to be used, the levers should be
free from sharp edges. Care should be taken not to damage
the tyres and rims.
CAUTION
The tyre walls of the tubeless tyre which in contact with the wheel
rim are only seals the air inside the wheel assembly. Hence care
should be taken not to damage the side walls of the tyres during
removal / reassembly.
FRONT WHEEL REMOVAL AND REASSEMBLY
1. Remove the axle nut (1) along with a washer.
2. Pull out the axle (2) along with a washer.
3. In disc brake model, remove the spacers from both side
of the wheel. In drum brake model remove the spacer
from right side of the wheel.
4. Place a support below the frame to prevent the vehicle
from falling and lift the vehicle up.
5. In drum brake model, dislocate the wheel assembly
Tyre puncture (tubeless tyres)
Disc version of TVS Stryker 125 is fitted with a tubeless tyre
