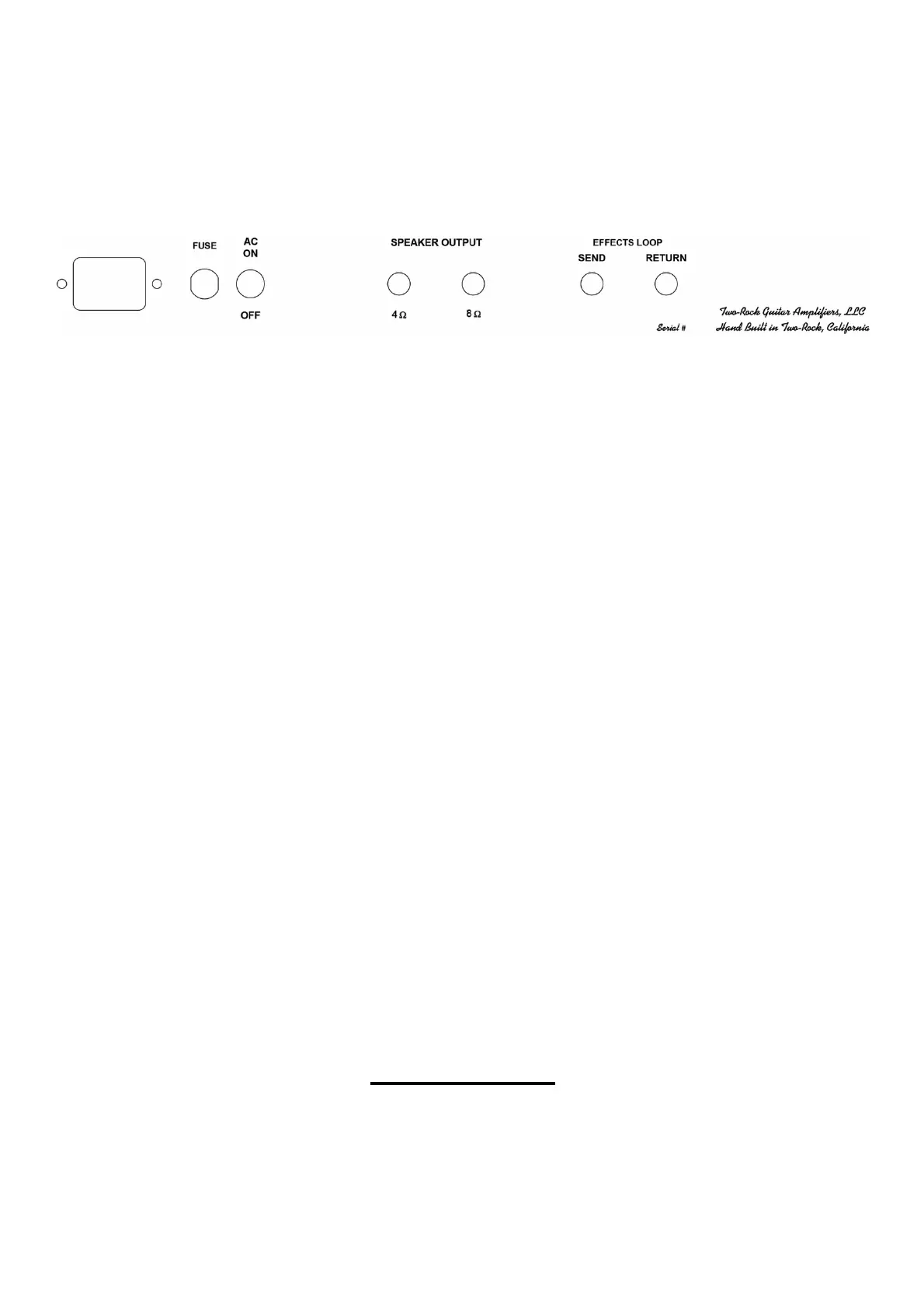

Rear Panel Functions
A/C Input - Connects the amplifier to A/C power via the power cord supplied. Unless otherwise
specified, your amplifier is designed to operate on 120 volts A/C, 60 cycles.
Fuse- See Fuse Chart
Power Switch -Turns power on.
Speaker Output Jacks - There are 3 speaker output jacks; 4, 8, and 16 ohms.
NEVER OPERATE YOUR AMPLIFIER WITHOUT A PROPER SPEAKER LOAD CONNECTED.
Be sure to match the impedance of your cabinet with the impedance (output) of the amplifier.
Effects Loop –
The effects loop on this amplifier is a passive type of loop, see FAQ on two-rock.com
Send - Use this jack to send the amplifier’s signal to the effects that you want to use in the loop.
Return - Use this jack to connect the output from the effects in the loop back to the amplifier.
S/N - Your serial number is located here. We strongly suggest that you record this number and
have it handy in case you need service, or in the event that your amp is lost, stolen, or damaged.
Fuse Chart
All Fuses are 3AG Type 250 Volt, SLO-BLO
Export 100 Volt Domestic Fuses: Export 220, 230, 240
Fuses:
3.5 - 100 Watt 4x6L6 3.25 - 100 Watt 4x6L6 1.6 - 100 Watt 4x6L6
2.8 - 50 Watt 2x6L6 2.5 - 50 Watt 2x6L6 1.25 - 50 Watt 2x6L6
