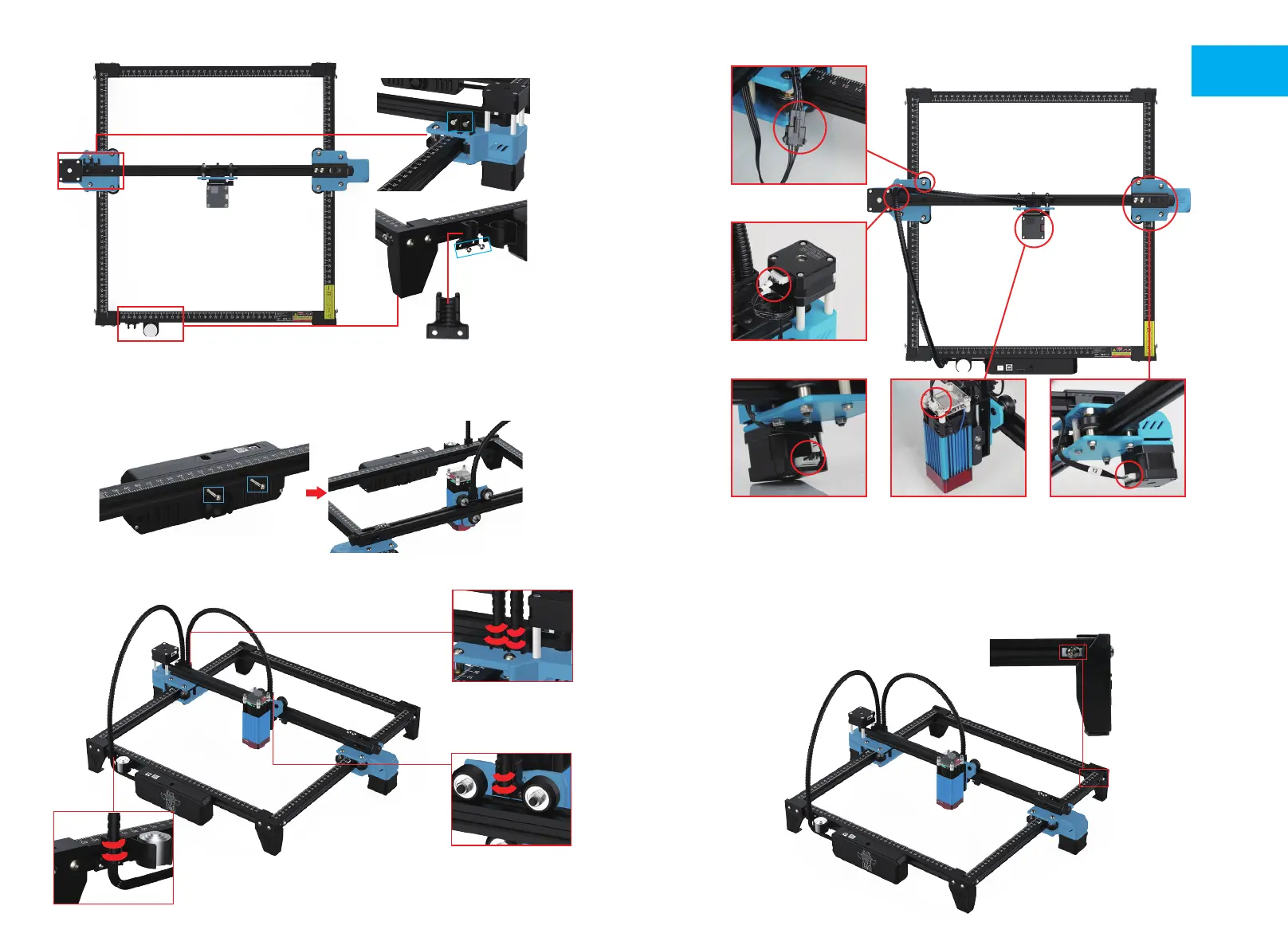

7. Install the motherboard box
Screw M3*20 x 2
M3*20 X 2
6. nstall the bellows holder and Fixed-length column holder
M3*8 x 2
M3*6 x 2
WIRING
Note: Incorrect connection between X-axis and Y1 motor line will lead to
abnormal movement.
X-axis Motor
Y1 Motor
Y2 Connector
Y2 Motor
Laser Module
Note: Fix the bellows with black wire tie.
8. Install the bellows
Method to adjust the synchronous belts on both sides
If they loose, first loosen the pressing screws on both sides, then fasten the
synchronous belt, and push the pressing screws to the corner and tighten them.
ADJUSTMENT
To Next Page
