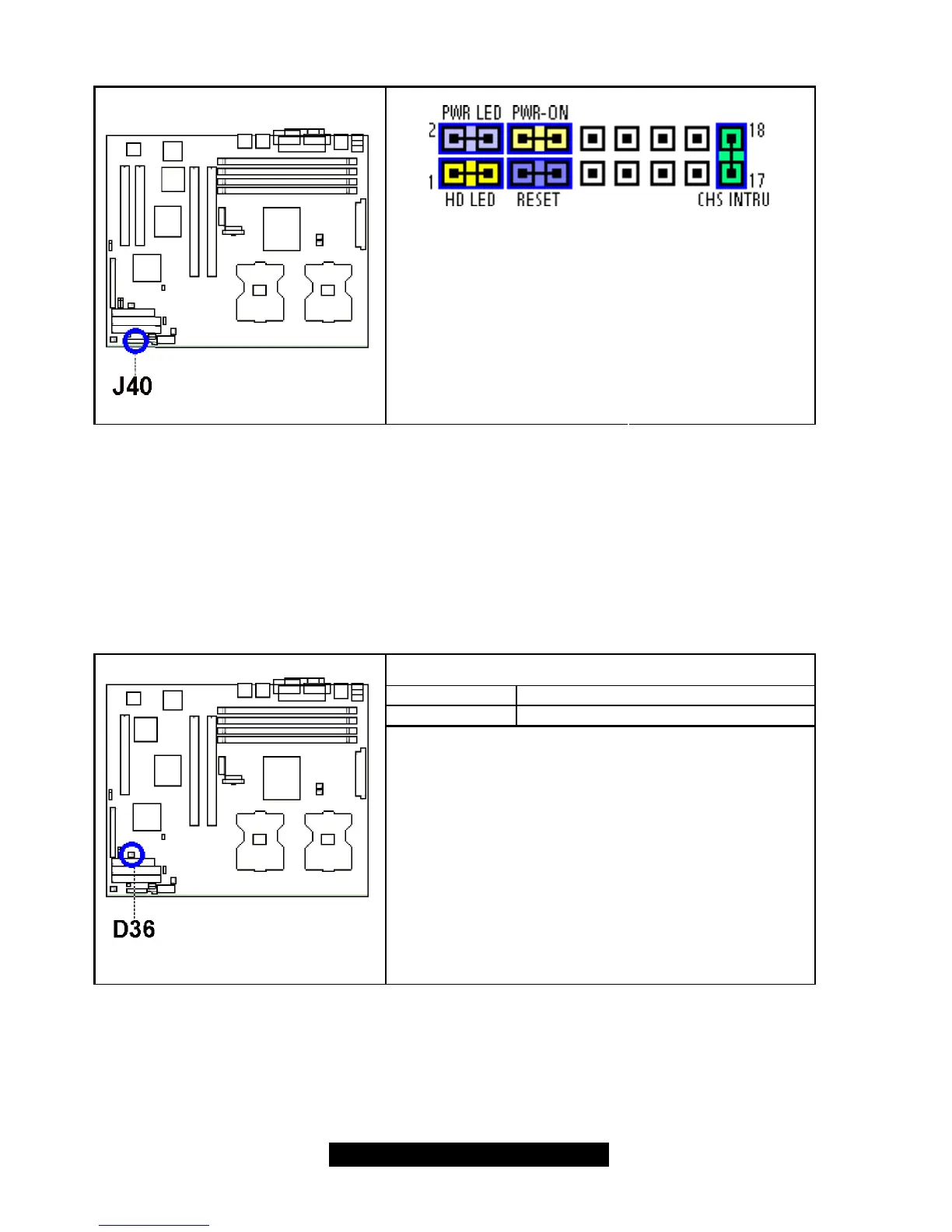

Front Panel Connector (J40)
Your chassis will usually come with connectors to
install onto the motherboard, such as HD and Power
LEDs. The Front Panel Connector (J40) has been
implemented for such purposes.
HD LED Header
= Pin 1 & 3
Power LED Header
= Pin 2 & 4
Power-On Switch
= Pin 6 & 8
Reset Switch
= Pin 5 & 7
Chassis Intrusion Header
= Pin 17 & 18
2.6 – LED Information
LEDs Description
D36 Power LED
This LED functions as pins 2 & 4 in J40 above.
Using those pins you can connect to the Chassis
Power LED wire.
