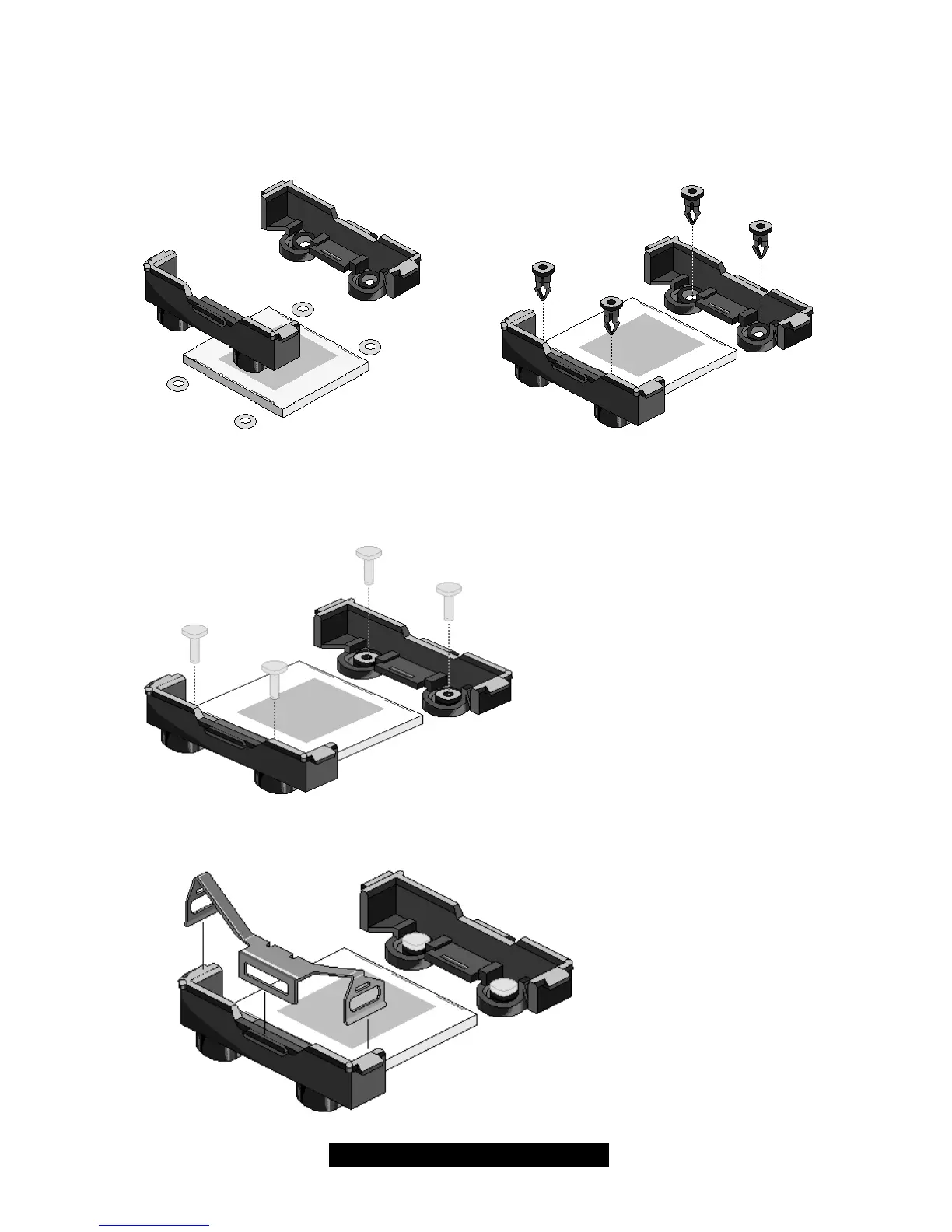

The following diagrams will illustrate how to install the included heatsink retention modules:
1) Align the heatsink mounting bracket to the holes around the processor socket
2) Insert Black securing peg into bracket holes
3) Insert White locking peg into Black securing peg
4) Repeat process to mount all other brackets
5) Seat heatsink between brackets on processor
6) Attach heatsink clips
