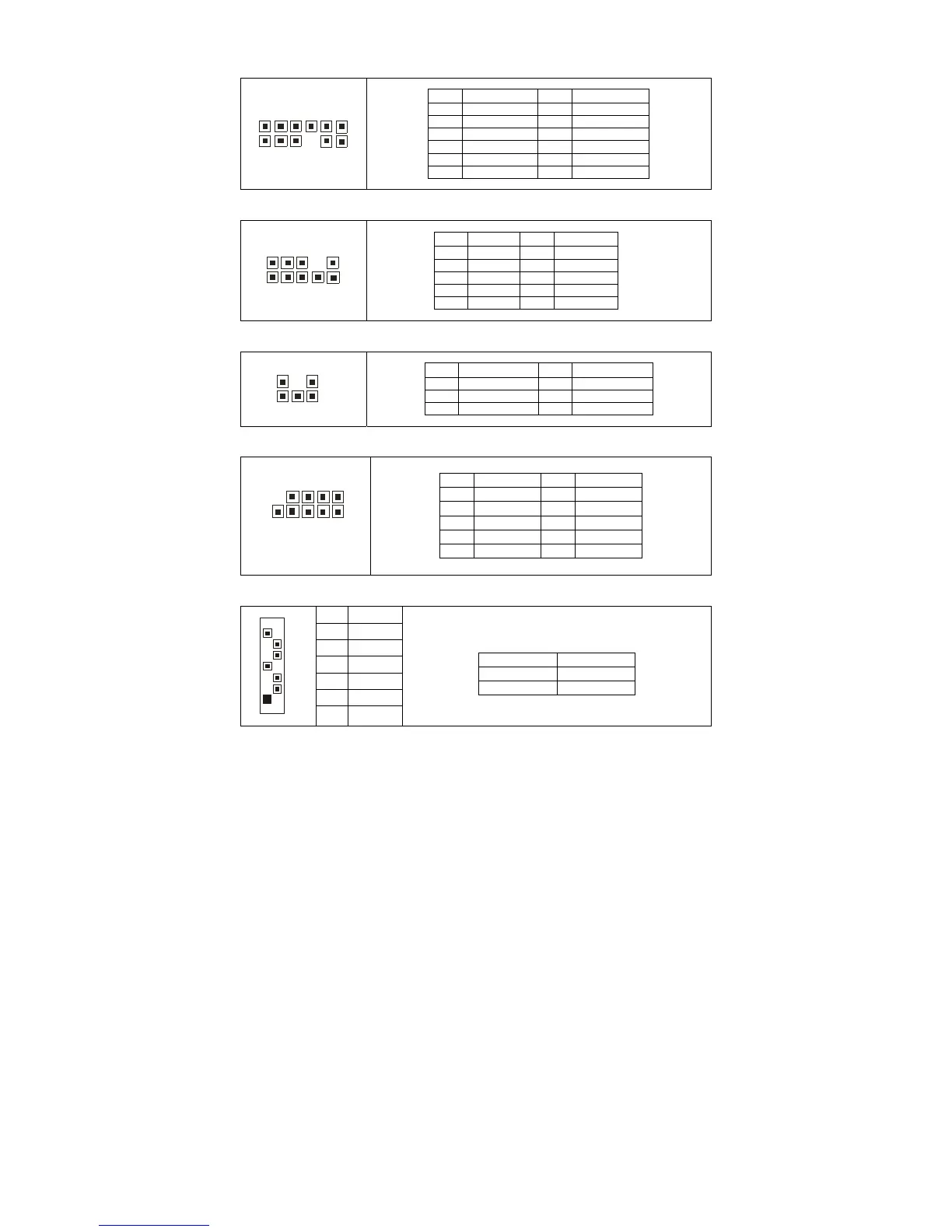

P1: Rear Audio Header (S5376WAG2NR and S5376WAG2NR5)
1 11
2 12
Pin Signal Pin Signal
1 MIC1_L_C 2 MIC1_R_C
3 GND 4 MIC1_JD
5 LINE1_L_C 6 LINE1_R_C
7 KEY 8 LINE1_JD
9 FRONT_L_C 10 FRONT_R_C
11 NC 12 FRONT_JD
J1: Front Panel Audio Header (S5376WAG2NR and S5376WAG2NR5)
1 9
2 1 0
Pin Signal Pin Signal
1 MIC_L 2 GND
3 MIC_R 4 PRESENT
5 LINE_R 6 MIC_JD
7 GND 8 KEY
9 LINE_L 10 LINE_JD
LCM (J5): LCM Header
5 1
6 2
Pin Signal Pin Signal
1 Link to MB V5 2 MB COM2 RX
3 KEY 4 GND
5 MB V5DUAL 6 MB COM2 TX
USB2 (J15) / USB3 (J16): USB Front Header
10 2
9
1
Pin Signal Pin Signal
1 USBPWR 2 USBPWR
3 USB-N 4 USB-N
5 USB-P 6 USB-P
7 GND 8 GND
9 KEY 10 GND
SATA0/1/2/3/4/5: Serial ATA Connector
7 GND
6 RXP
5 RXN
4 GND
3 TXN
2 TXP
7
1
1 GND
Connects to the Serial ATA ready drives via the
Serial ATA cable.
SATA0: J11 SATA1: J10
SATA2: J9 SATA3: J8
SATA4: J7 SATA5: J6
