2.6 - Installing the Memory
Before installing memory, ensure that the memory you have is compatible with the
motherboard and processor. Only DDR2-667/533 DIMM modules are required.
Check the TYAN Web site at: www.tyan.com for details of the type of memory
recommended for your motherboard.

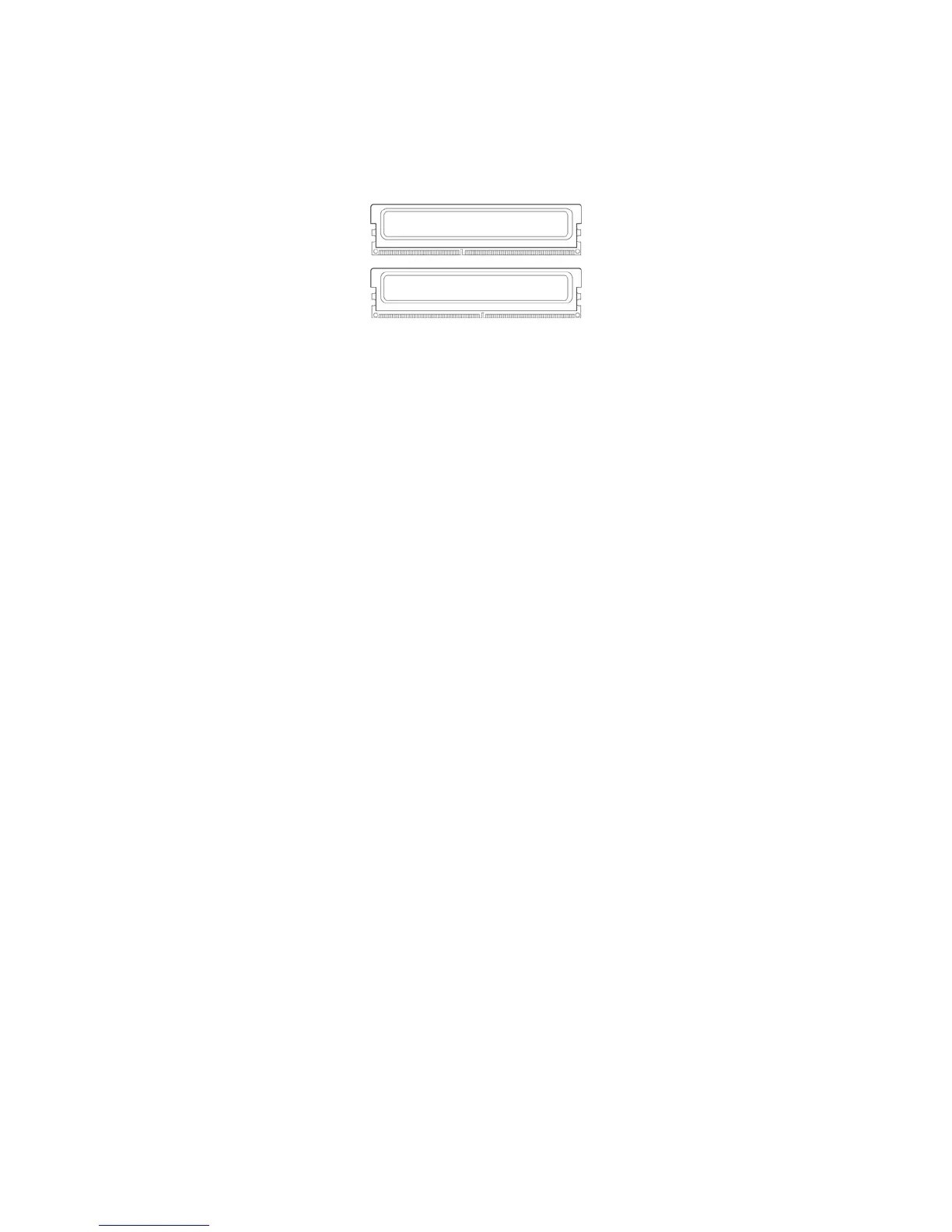

The following diagram shows common types of DDR2 memory modules.
Key points to note before installing memory:
• Two channels of registered ECC memory DIMMs (DDR2-667/533)
• Automatic memory bus frequency setting based on memory configuration
and memory SPD information (to be adjusted by BIOS)
• Six (6) by 240-pin DDR2 DIMM sockets
• Maximum memory capacity: 48GB
• All memory must be of the same type and density
