TYAN S8010 - Page 17

http://www.tyan.com
17

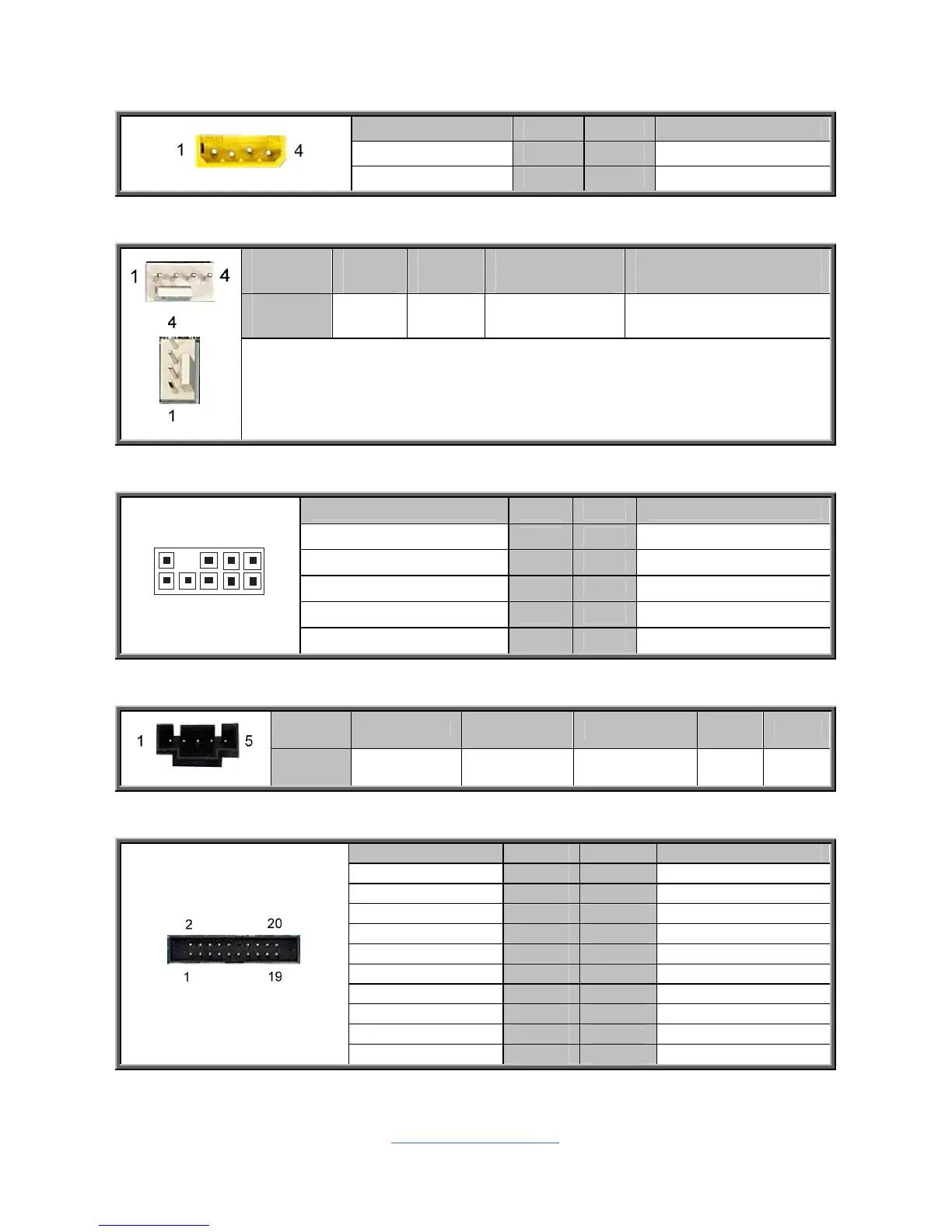

J26: IPMB Connector
Signal Pin Pin Signal
IPMB_DATA 1 2 GND
IPMB_CLK 3 4 N/C
J54/J55/J56/J57/J58/J59: 4-Pin FAN Connector
Pin 1 2 3 4
Signal GND +12V Tachometer
Fan PWM (speed)
Control
Use this header to connect the cooling fan to your motherboard to keep the
system stable and reliable.
J63: SAS Fault LED Connector
Signal Pin Pin Signal
LED_N0 1 2 LED_N1
LED_N2 3 4 LED_N3
LED_N4 5 6 LED_N5
KEY 7 8 LED_N7
10
9
2
1
LED_N6 9 10 GND
J64: PSMI Connector
Pin 1 2 3 4 5
Signal SMB_CLK SMB_DAT SMBALERT GND V3P3
J71: 2X10-pin FAN connector (Reserved for TYAN Barebone)
Signal Pin Pin Signal
FANIN1 1 2 FANIN6
FANIN2 3 4 FANIN7
FANIN3 5 6 FANIN8
FANIN4 7 8 FANIN9
FANIN5 9 10 FANIN10
GND 11 12 KEY
FANCTL5 13 14 FANCTL4
FANIN11 15 16 N/C
FANIN12 17 18 N/C
N/C 19 20 FANCTL6
