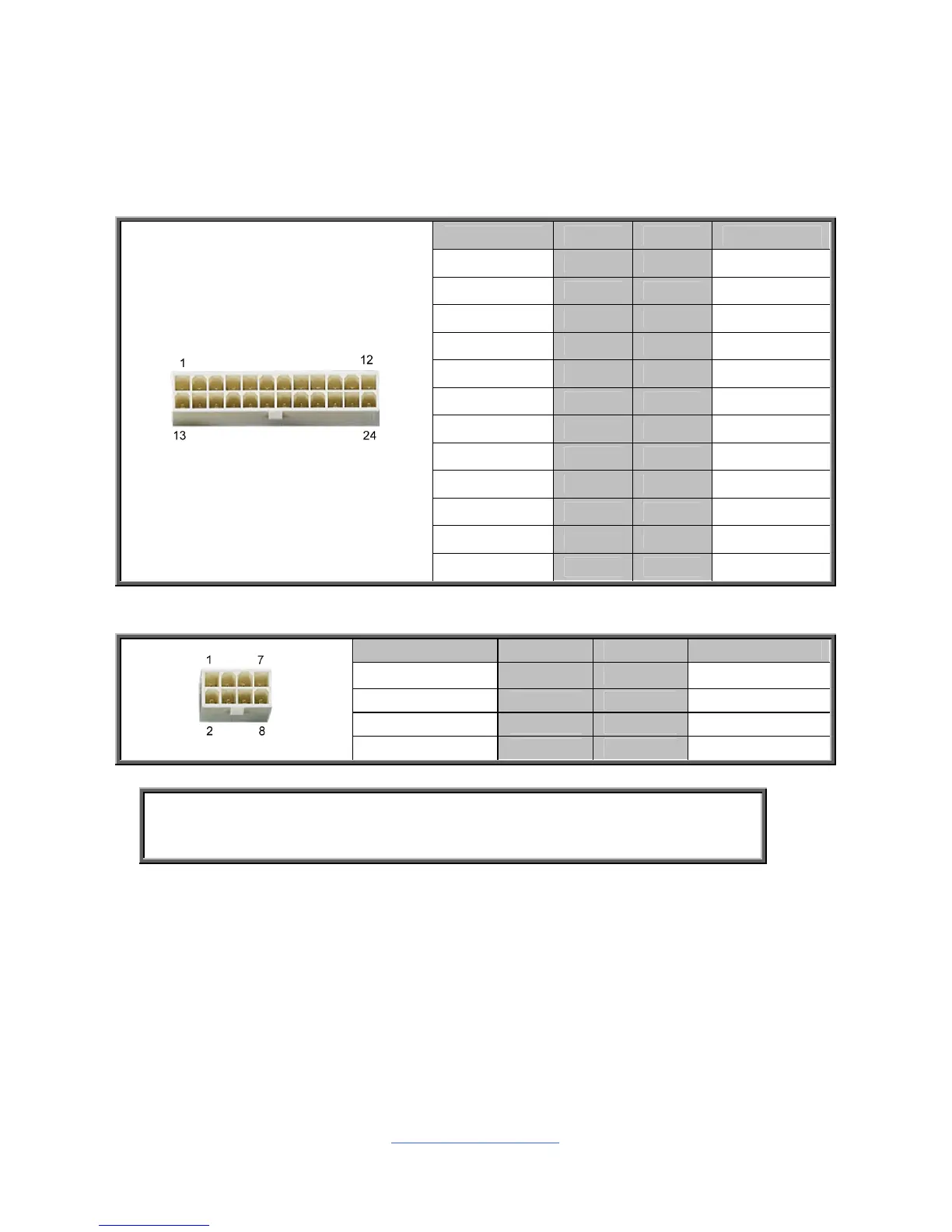

2.11 Installing the Power Supply
There are two power connectors on your S8010 motherboard. The S8010 supports
EPS 12V power supply.
PW1: 24-Pin EPS 12V Power Main Connector
Signal Pin Pin Signal
+3.3V 1 13 +3.3V
+3.3V 2 14 -12V
GND 3 15 GND
+5V 4 16 PS_ON
GND 5 17 GND
+5V 6 18 GND
GND 7 19 GND
PS_GD 8 20 Reset
5VSB 9 21 +5V
+12V 10 22 +5V
+12V 11 23 +5V
+3.3V 12 24 GND
PWR2: 8-Pin EPS 12V Power Connector
Signal Pin Pin Signal
GND 1 5 +12V
GND 2 6 +12V
GND 3 7 +12V
GND 4 8 +12V
NOTE: You must unplug the power supply before plugging the power
cables to motherboard connectors.
