2.4 Installing the Processor and Heat sink
The S8010 supported AMD
®
processors are listed in section Hardware
Specifications on page 4. Check our website at http://www.tyan.com
for latest
processor support.
NOTE: MiTAC is not liable for damage as a result of operating an
unsupported configuration.
Processor Installation (C32 1207-pin Socket for AMD CPU)
Follow the steps below to install the processors and heat sinks.
Please note that the illustrations are based on a C32 1207-pin Socket which may
not look exactly like the motherboard you purchased. Therefore, the illustrations
should be held for your reference only.
NOTE: If only one processor is installed, start with CPU0 first.

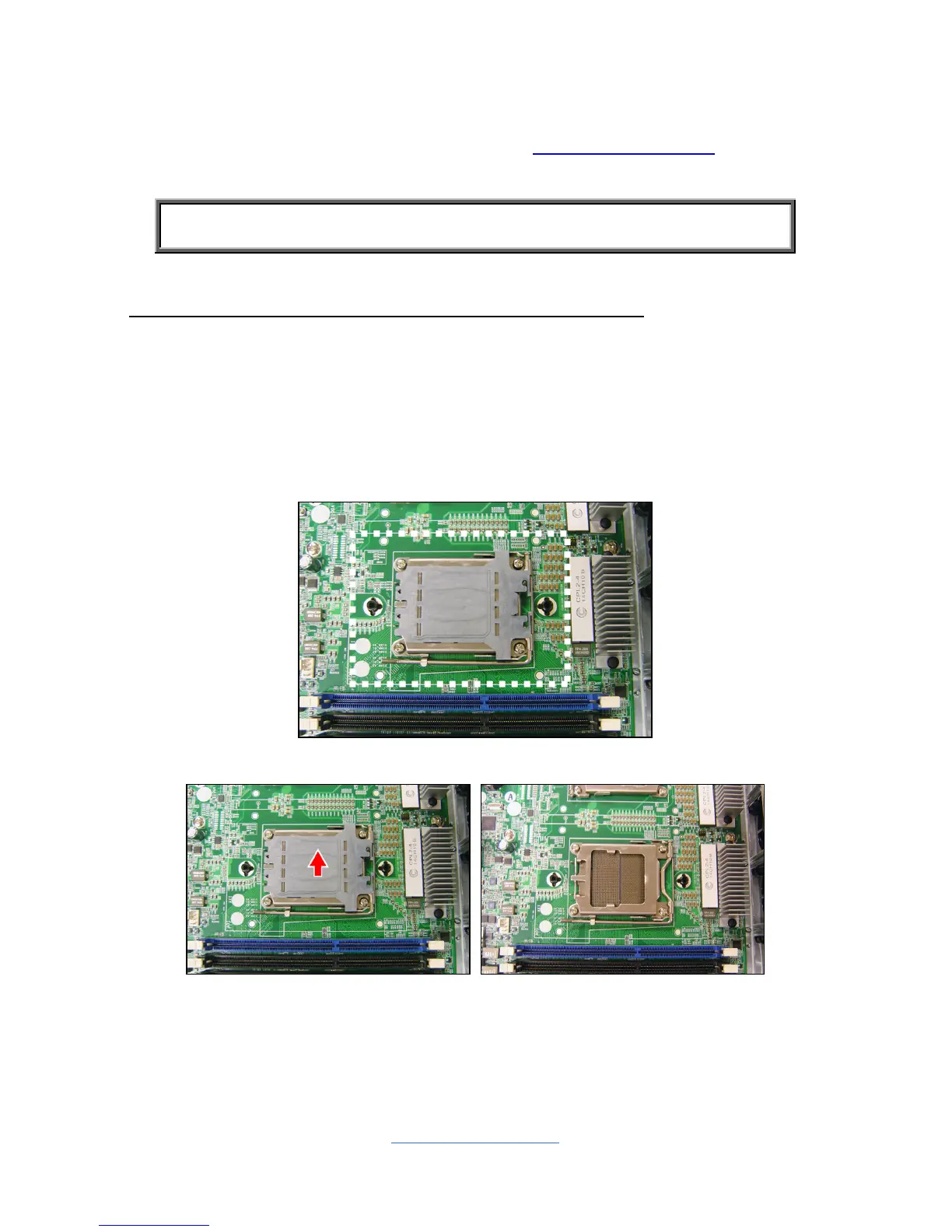

1. Locate the CPU socket.
2. Take off the protection cap.
