19

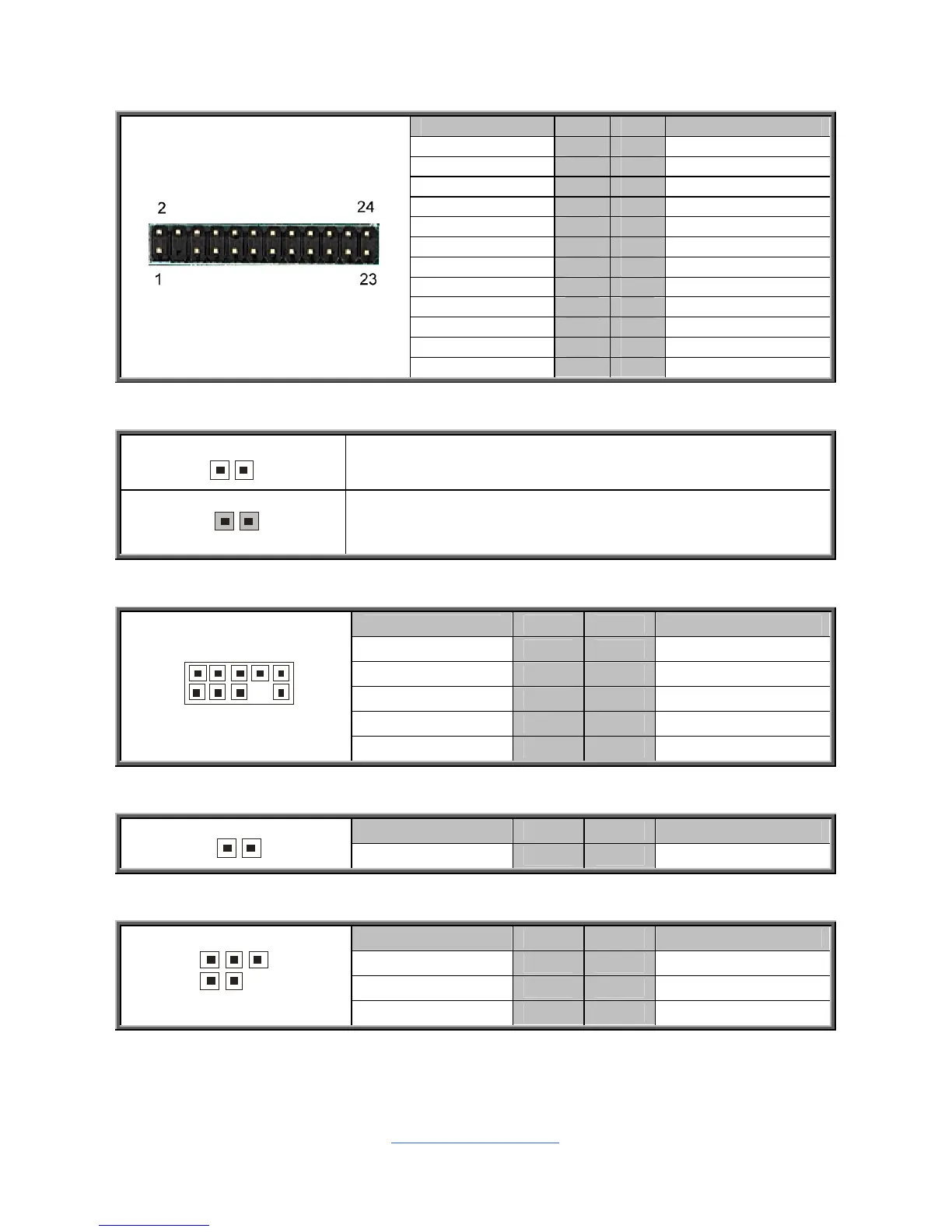

J65: Front Panel Connector
Signal Pin Pin Signal
Power LED+ 1 2 3.3V
Key 3 4 ID LED+
Power LED- 5 6 ID LED-
HD LED+ 7 8 Fault_LED1-
HD LED- 9 10 Fault_LED2-
Power SW# 11 12 LAN1 ACTLED+
GND1 13 14 LAN1 ACTLED-
Reset SW# 15 16 SMBUS SDA
GND2 17 18 SMBUS SCL
ID SW 19 20 INTRU#
Temp Sensor 21 22 LAN2 ACTLED+
NMI_SW# 23 24 LAN2 ACTLED-
J83: Chassis Intrusion Jumper
1
Use this jumper to disable the system chassis intrusion
alarm.
1
(Default)
Use this jumper to trigger the system chassis intrusion
alarm.
J90: SP5100 SATA SGPIO Pin Header
Signal Pin Pin Signal
SMB_CLK 1 2 DIN
SMB_DAT 3 4 SDATAOUT
GND 5 6 END
KEY 7 8 SCLOCK
1
2
10
9
N/C 9 10 HD_ERR_LED
J91: ID LED Header (Reserved for TYAN FT48 chassis)
Signal Pin Pin Signal
1
ID_LED+ 1 2 ID_LED-
J92: SAS SMB & HDD Fault Header
Signal Pin Pin Signal
V3DU 1 2 HDD_BP_SCL
GND 3 4 HDD_BP_SDA
1
5
2
6
KEY 5 6 SATA_ERR_LED
