TYAN S8050 - Page 49

http://www.tyan.com
49

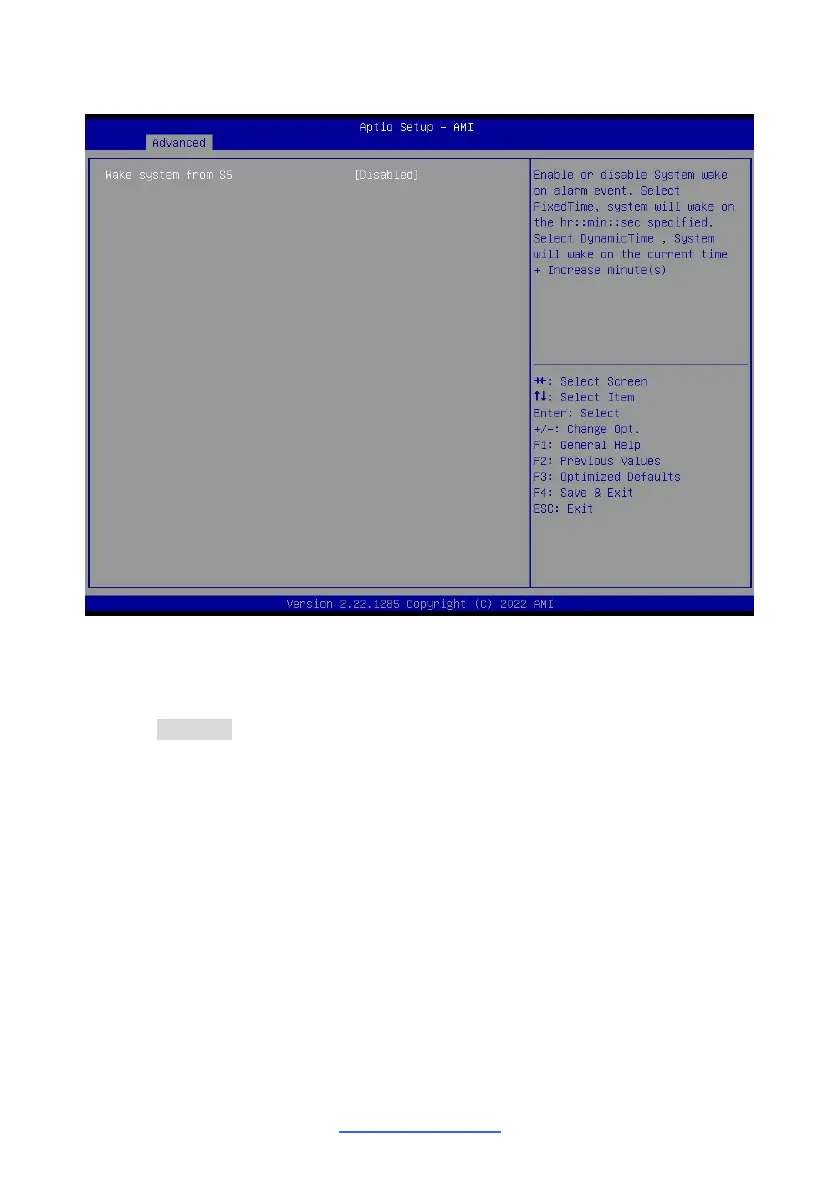

3.3.2 S5 RTC Wake Settings
Wake system from S5
Enable or disable system wake on alarm event. Select Fixed time, system will wake
on the hr::min::sec specified. Select dynamic time, system will wake on the current
time+ increase minute(s)
Disabled / Fixed Time / Dynamic Time
