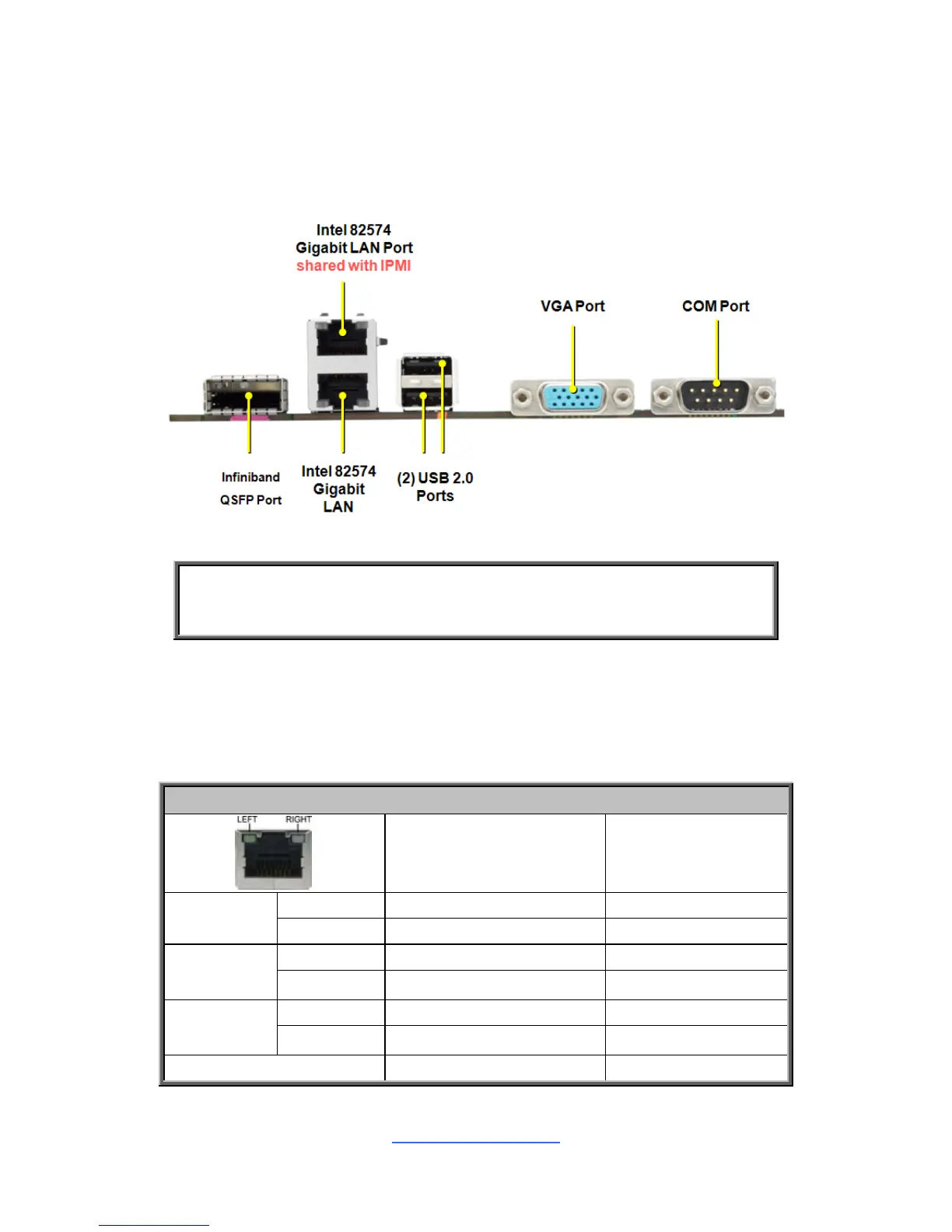

2.10 Connecting External Devices
Connecting external devices to the motherboard is an easy task. The motherboard
supports a number of different interfaces through connecting peripherals. See the
following diagrams for the details.
NOTE: Peripheral devices can be plugged straight into any of these
ports but software may be required to complete the installation.
Onboard LAN LED Color Definition
The two onboard Ethernet ports have green and yellow LEDs to indicate LAN
status. The chart below illustrates the different LED states.
10/100/1000 Mbps LAN Link/Activity LED Scheme
Left LED Right LED
10 Mbps
Link
Green Off
Active
Blinking Green
Off
100 Mbps
Link
Green Green
Active Blinking Green Green
1000 Mbps
Link
Green
Yellow
Active Blinking Green Yellow
No Link
Off
Off
