2.7 Installing the Memory
Before installing memory, ensure that the memory you have is compatible with the
motherboard and processor. Check the TYAN Web site at http://www.tyan.com
for
details of the type of memory recommended for your motherboard.

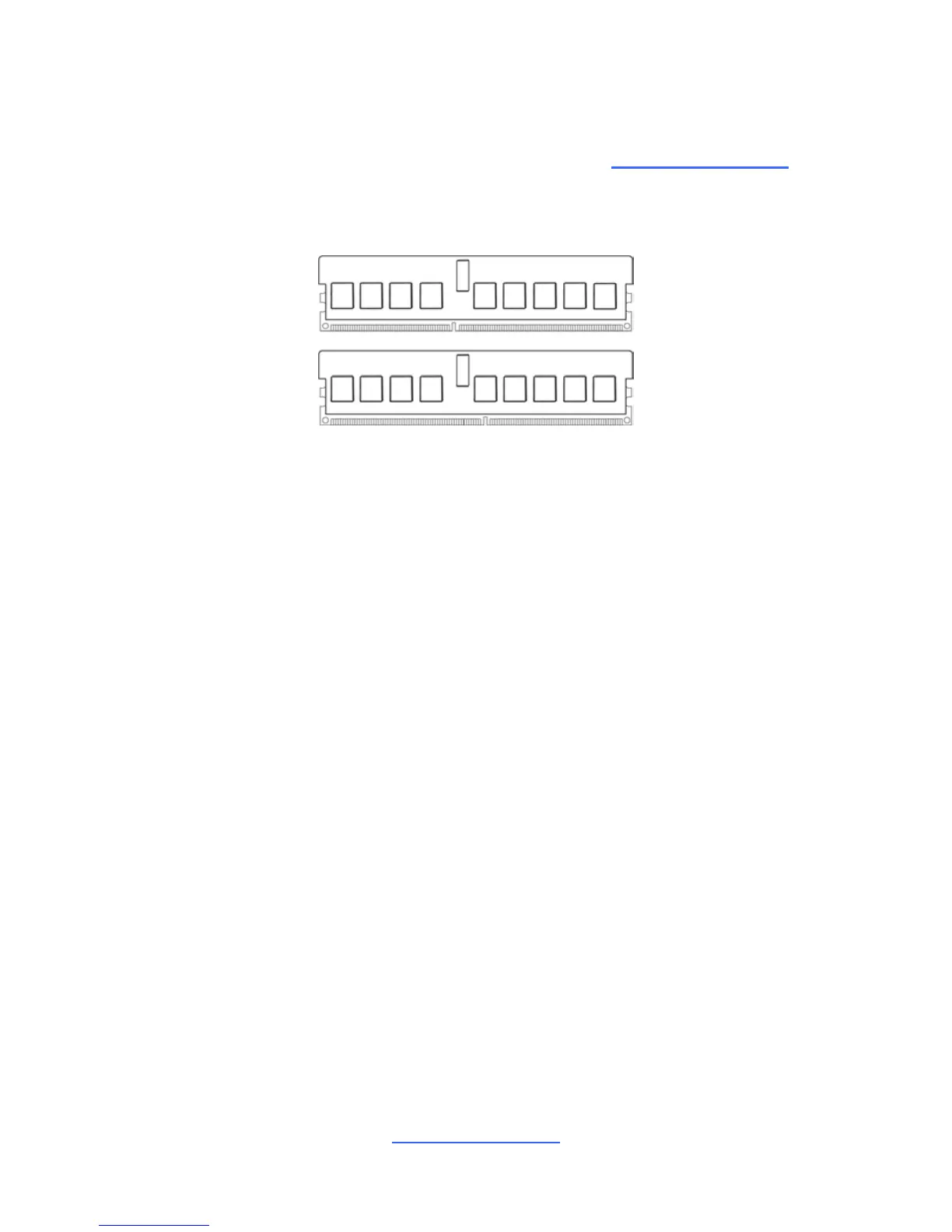

The following diagram shows common types of DDR3 memory modules.
•
Supports R-DIMM, U-DIMM and Low Voltage (LV) DDR3, at 800,1066 or
1333MHz speeds
• All installed memory will automatically be detected and no jumpers or settings
need changing
• All memory must be of the same type and density
