2.4 Installing the Processor and Heat sink
The S8238 supported AMD
®
processors are listed in section Hardware
Specifications on page 3. Check our website at
http://www.tyan.com for latest
processor support.
NOTE: MiTAC is not liable for damage as a result of operating an
unsupported configuration.
Processor Installation (G34 1944-pin Socket for AMD CPU)
Follow the steps below to install the processors and heat sinks.
Please note that the illustrations are based on a G34 1944-pin Socket which may
not look exactly like the motherboard you purchased. Therefore, the illustrations
should be held for your reference only.
NOTE: If only one processor is installed, start with CPU0 first.

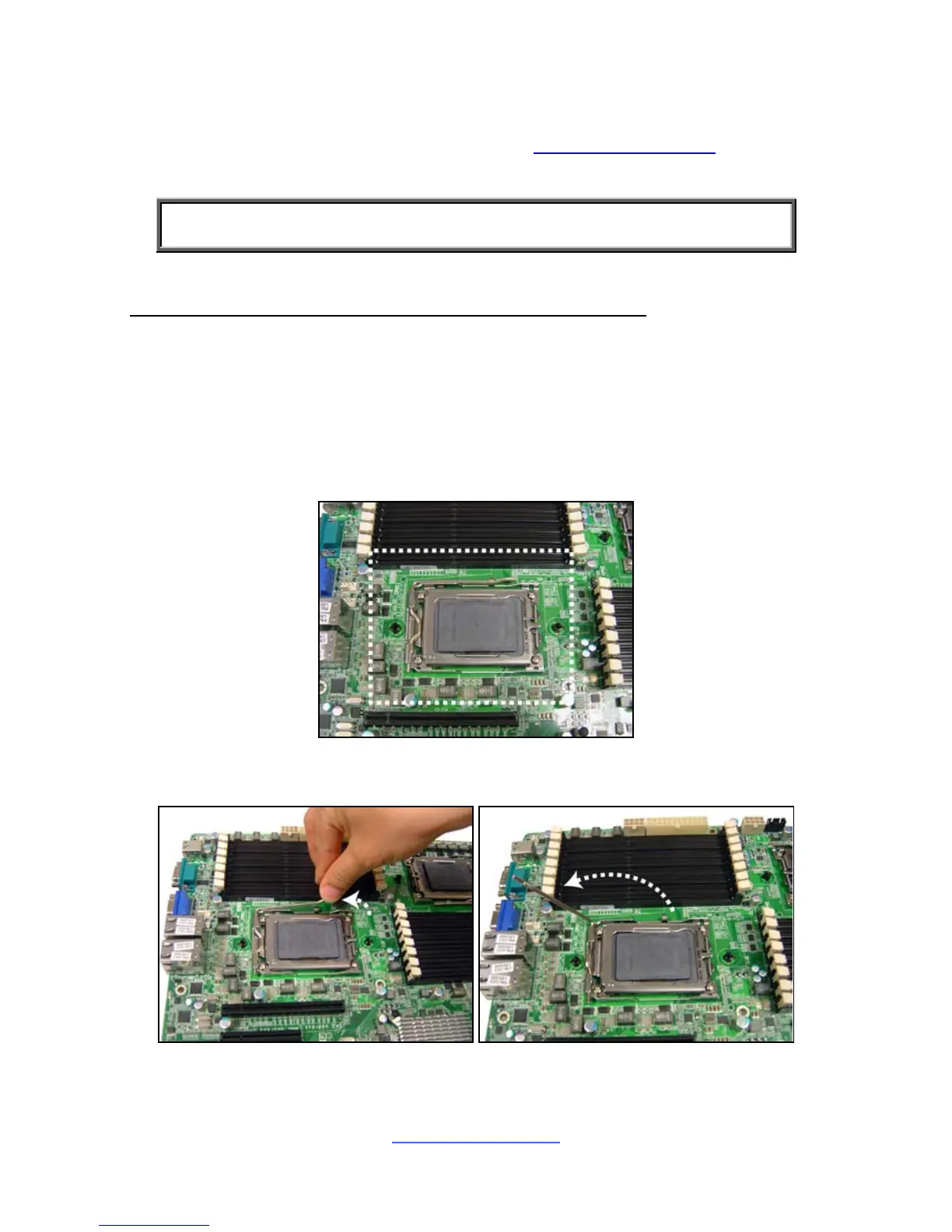

1. Locate the CPU socket.
2. Pull the CPU lever slightly away from the socket and then push it to a fully
open position.
