Tyco DN150 Quick Start Guide

TFP1321
Page 10 of 18
NOTES
1. Port Connections P1 through
P7 are described in Figure 2.
2. External Trim Connections C1
through C5 are described in
Figure 8.
3. When ordering pre-assembled
"DV-5A Valve with Galvanized
Trim" or pre-assembled "DV-5A
Valve with Galvanized Trim
and Buttery Valve", Items A1
through A9 are provided, as
applicably related to valve size,
and Item A6 is provided as
P/N 52-287-1-124
described in Technical Data
Sheet TFP2180.
4. When ordering DV-5A Trim
separately from the DV-5A
Valve, Items A1 through A9
are separately ordered. Water
Pressure Gauges for EMEA
valve trim are also separately
ordered.
5. V1 through V3 Water Column
Prevention Drain Components
are required for VdS and LPCB
Approval.
ITEM QTY DESCRIPTION CH 1 1/2 IN. (DN40) 2 IN. (DN50) 3 IN. (DN80) 4 IN. (DN100) 6 IN. (DN150)
b
8 IN. (DN200)
1 1 1/4" GAUGE TEST VALVE 460051003 460051003 460051003 460051003 460051003 460051003
2 1 MRA-1 MANUAL RESET ACTUATOR 545001000 545001000 545001000 545001000 545001000 545001000
3 1 MC-2 MANUAL CONTROL STATION 545002000 545002000 545002000 545002000 545002000 545002000
4 1 AD-3 AUTOMATIC DRAIN VALVE 547932004 547932004 547932004 547932004 547932004 547932004
5 1 PRIMING SUPPLY RESTRICTION 545100051 545100051 545100051 545100051 545100051 545100051
6 2 1/2" BALL VALVE 460501004 460501004 460501004 460501004 460501004 460501004
7 1 1/2" SPRING LOADED CHECK VALVE 923221003 923221003 923221003 923221003 923221003 923221003
8 1 1/2" Y-STRAINER 523531006 523531006 523531006 523531006 523531006 523531006
9 1 3/4" ANGLE VALVE 460481010 460481010 460481010 460481010 460481010 460481010
10 1 ANGLE VALVE 460481010 460481010 460481011 460481012 460481012 460481012
11 1 DRIP FUNNEL BRACKET CONNECTOR 9221110 0 5 92 21110 05 9 2 21110 05 9 22111005 9 22111005 92 211100 5
12 1 DRIP FUNNEL BRACKET 9221110 0 3 92 21110 03 9 2 21110 03 9 22111003 9 22111003 92 211100 3
13 1 DRIP FUNNEL 923431007 923431007 923431007 923431007 923431007 923431007
14 2 COMP. FITTING 90° 1/2" MNPT x 1/2" OD TUBE
✓
— — — — — —
15 1 COMP. FITTING 90° 1/2" FNPT x 1/2" OD TUBE
✓
— — — — — —
16 2 FLARE FITTING 90° 1/2" NPT x 1/2" TUBE 545100062 545100062 545100062 545100062 545100062 545100062
17 2 FLARE FITTING 3/4" NPT x 3/4" TUBE 545100063 545100063 545100063 545100063 545100063 545100063
18 1 PIPE PLUG
✓
1/4" 1/4" 1/4" 1/4" 1/4" 1/4"
19 1 PIPE PLUG, SOCKET HEAD
✓
1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
20 1 PIPE PLUG
✓
3/4" 3/4" 3/4" 3/4" 3/4" 3/4"
21 2 UNION
✓
1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
22 1 STREET ELBOW
✓
1/4" x 90° 1/4" x 90° 1/4" x 90° 1/4" x 90° 1/4" x 90° 1/4" x 90°
23 1 ELBOW
✓
1/2" x 45° 1/2" x 45° 1/2" x 45° 1/2" x 45° 1/2" x 45° 1/2" x 45°
24 3 ELBOW
✓
1/2" x 90° 1/2" x 90° 1/2" x 90° 1/2" x 90° 1/2" x 90° 1/2" x 90°
25 2 TEE
✓
1/2" 1/2" 1/2" 1/2" 1/2" 1/2"
26 1 REDUCING TEE
✓
1/2" x 1/2" x 1/4" 1/2" x 1/2" x 1/4" 1/2" x 1/2" x 1/4" 1/2" x 1/2" x 1/4" 1/2" x 1/2" x 1/4" 1/2" x 1/2" x 1/4"
27 2 REDUCING TEE
✓
3/4" x 1/2" x 3/4" 3/4" x 1/2" x 3/4" 3/4" x 1/2" x 3/4" 3/4" x 1/2" x 3/4" 3/4" x 1/2" x 3/4" 3/4" x 1/2" x 3/4"
28 1 REDUCING TEE
✓
3/4" x 3/4" x 3/4" 3/4" x 3/4" x 3/4" 1 1/4" x 1 1/4" x 3/4" 2" x 2" x 3/4" 2" x 2" x 3/4" 2" x 2" x 3/4"
29 1 PIPE NIPPLE
✓
1/4" x 1 1/2" 1/4" x 1 1/2" 1/4" x 1 1/2" 1/4" x 1 1/2" 1/4" x 1-1/2" 1/4" x 1 1/2"
30 1 PIPE NIPPLE
✓
1/2" x CLOSE 1/2" x CLOSE 1/2" x CLOSE 1/2" x CLOSE 1/2" x CLOSE 1/2" x CLOSE
31 4 PIPE NIPPLE
✓
1/2" x 1 1/2" 1/2" x 1 1/2" 1/2" x 1 1/2" 1/2" x 1 1/2" 1/2" x 1 1/2" 1/2" x 1 1/2"
C4
C5
C3
C2
C1
P2
P3
P1
P6
P7
P4
P5
1-1/2" (DN40) AND 2" (DN50)
VALVES ONLY
VdS AND LPCB
APPROVAL
ONLY, SEE
NOTE 5
A4
A3
A4
A5
A1
A6
A2
A7
A9
A8
19
45
2
7
14
10
28
48
47
17
43
9
35
24
44
3
25
33
11
23
8
31
24
31
6
21
31
17
42
21
27
26
29
1
18
22
41
16
32
6
31
24
16
36
5
38
49
13
12
4
25
15
30
40
14
46
39
34
50
51
49
27
20
37
V3
V1
(GREEN
TINT)
V2

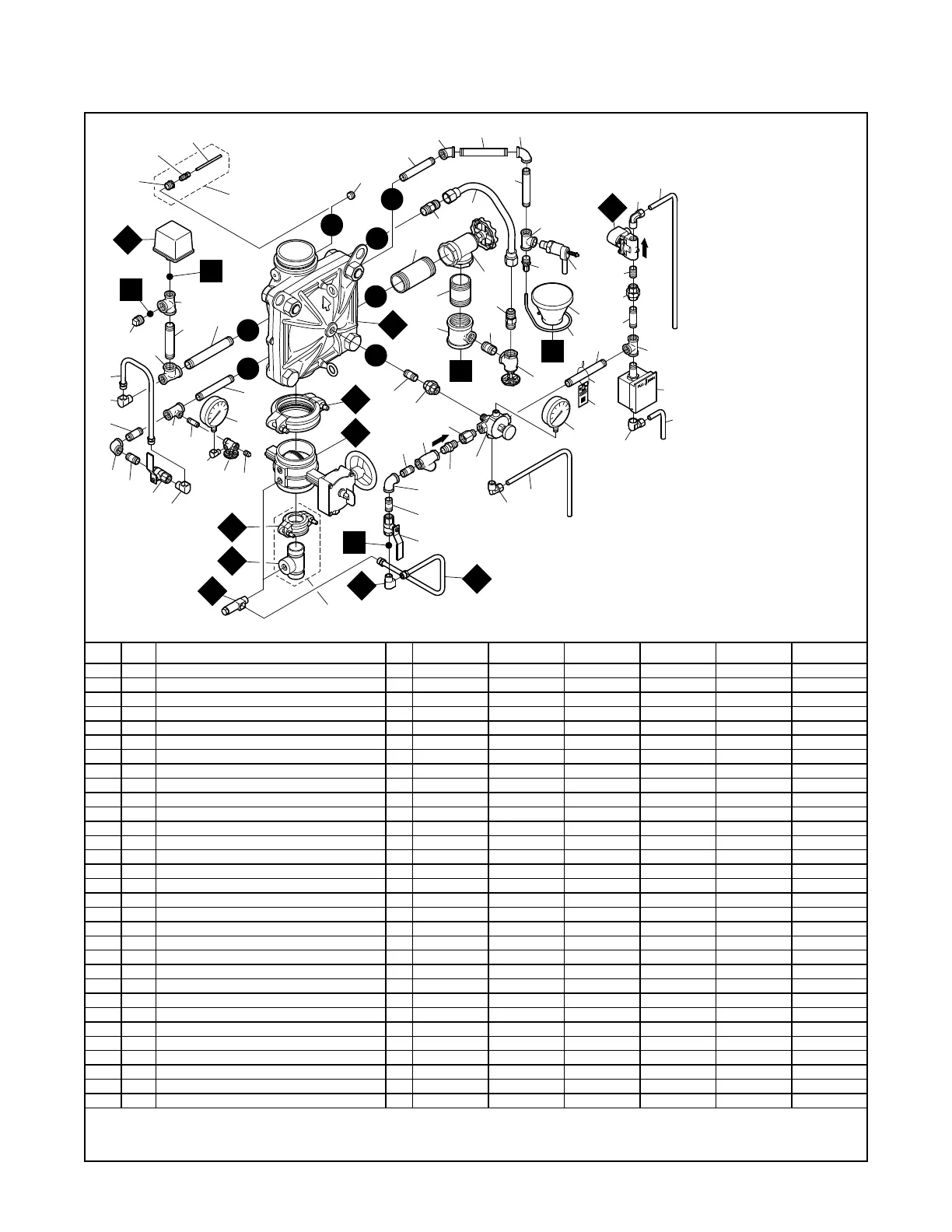

FIGURE 6 (1 OF 2)
DV-5
a VALVES — DELUGE ELECTRIC ACTUATION TRIM — EXPLODED VIEW
