Tyco MULTIMATIC F470H User Manual

-2-
1 - Body
2 - Clapper
3 - Clapper Facing
4 - Clapper Facing
Retainer
5 - Clapper Bolt
6 - Seat Ring
7 - Clapper Latch
8 - O-Ring, # 3-908
9 - Clapper Latch Stop
10 - Diaphragm Cover
Bolt, (5 req’d)
1/2" - 13 UNC x 1"
11 - Diaphragm Retainer
12 - Flange & Push Rod
Assembly
13 - Diaphragm
14 - Diaphragm
Housing
15 - 1/2" Pipe Plug
(4 req’d)
16 - Bearing (4 req’d)
17 - Clapper Hinge Pin
18 - Latch Hinge Pin
19 - Handhole Cover
20 - Handhole Cover Gasket
21 - Handhole Cover Bolt,
(1/2" - 13 UNC x 1-1/2"
4 req’d for 4" valve)
(3/4" - 11 UNC x 1-1/2"
5 req’d for 6" valve)
Nominal Dimensions in Inches and (mm)
ANSI B16.1 (CLASS 125)
AS 2129 (TABLE E)
ISO 2084 (PN10)†
JIS B 2210 (10K)
4" (100 mm) Valve Size 6" (150 mm) Valve Size
A B A B
7.50 (190,5)
7.00 (178,0)
7.09 (180,0)
6.89 (175,0)
0.75 (19,0)
0.71 (18,0)
0.71 (18,0)
0.75 (19,0)
9.50 (241,3) 0.88 (22,2)
9.25 (235,0)
9.45 (240,0)
9.45 (240,0)
0.87 (22,0)
0.87 (22,0)
0.91 (23,0)
†Same drilling as for BS 4504 Section 3.2 (PN10) and DIN 2532 (PN10).
TABLE A
DIMENSIONAL SPECIFICATIONS FOR SELECTION OF FLANGE DRILLING

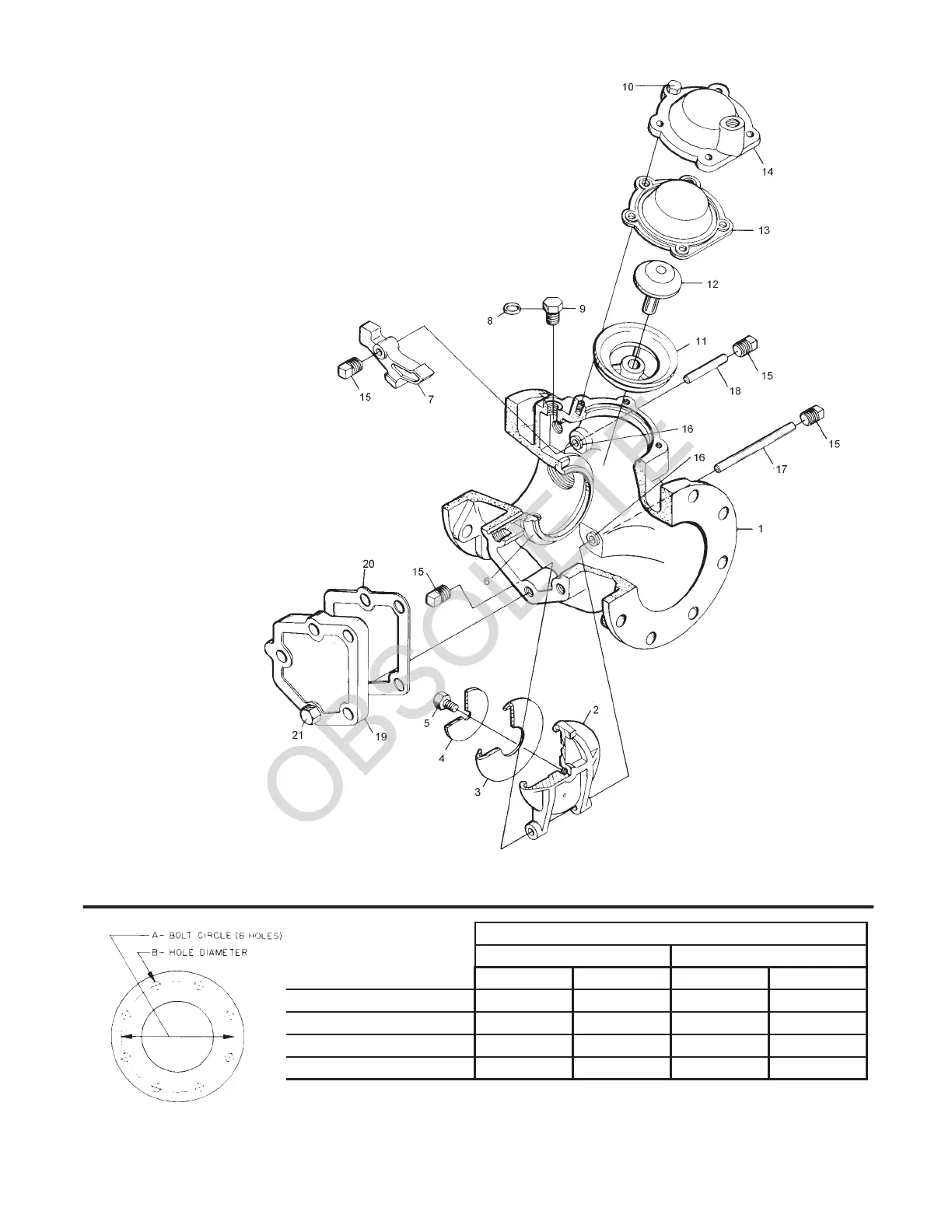

FIGURE B
MODEL F470H HORIZONTAL
MULTIMATIC DELUGE VALVE
— ASSEMBLY —
